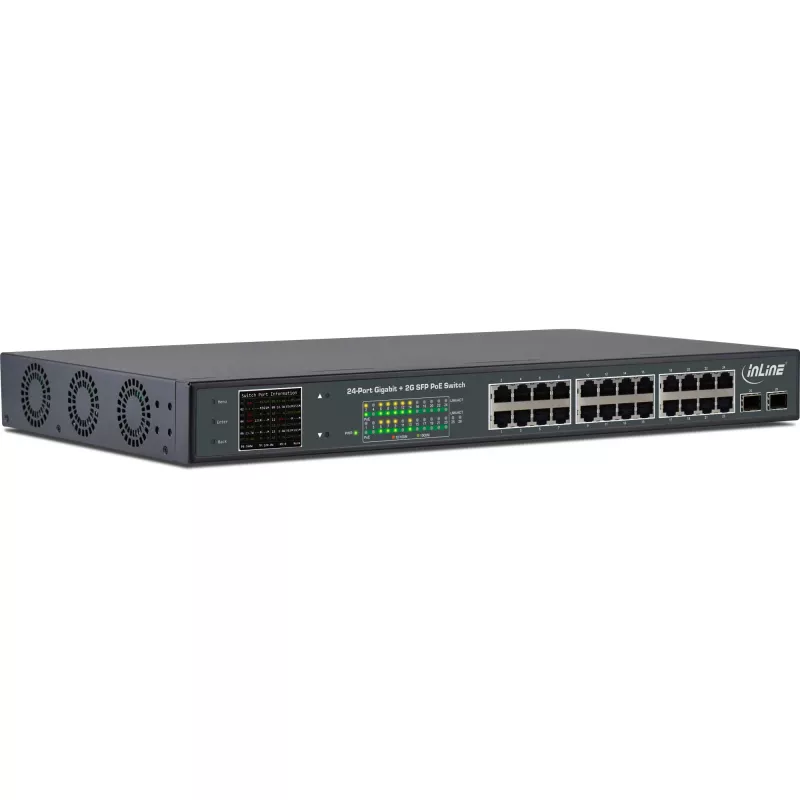

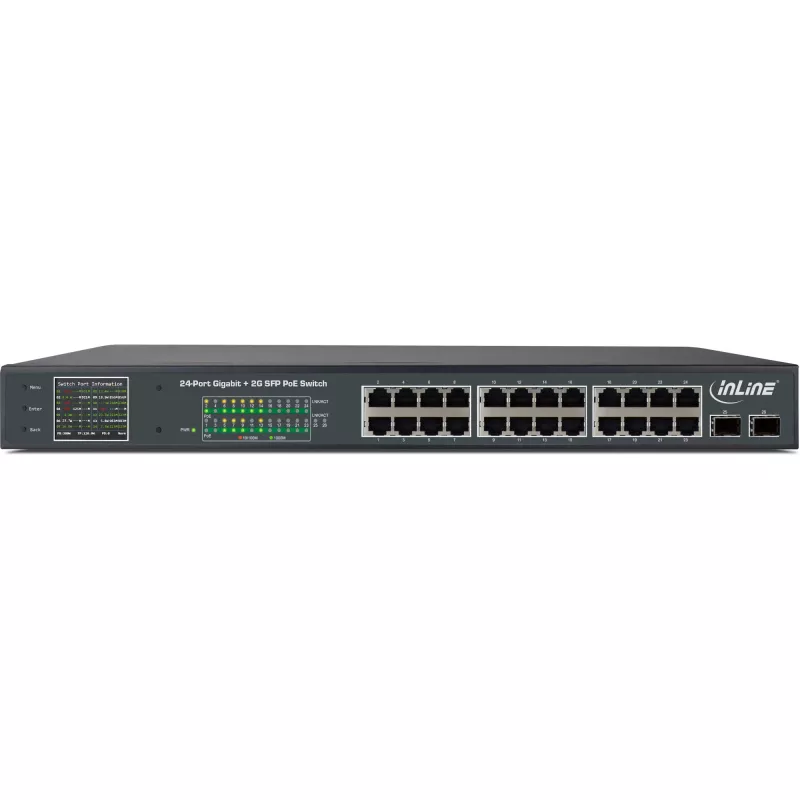

InLine PoE+ Gigabit Network Switch 24 portov, 1 Gb/s, 2x SFP, 19" 1U (vrátane držiakov)

The InLine® PoE+ Gigabit Network Switch is a fast and flexible solution for upgrading the existing network to the IEEE 802.3af / IEEE 802.3at Power over Ethernet system as well as a fiber-optic connection to bridge longer distances. The switch provides protection against, for example, overload, overvoltage and overheating at each port. In addition, the switch offers both IEEE 802.3af and IEEE 802.3at PoE+ with up to 32 watts of power per port via single Cat. 5/5e/6 Ethernet cable with a PoE budget of 380W and a combined total power of 420 watts. 24x 10/100/1000Mbps PoE+ ports solve the problem of a limited number of available power outlets, providing system administrators with a flexible solution to power almost anywhere the powering network device, such as PoE-enabled IP cameras or wireless access points.

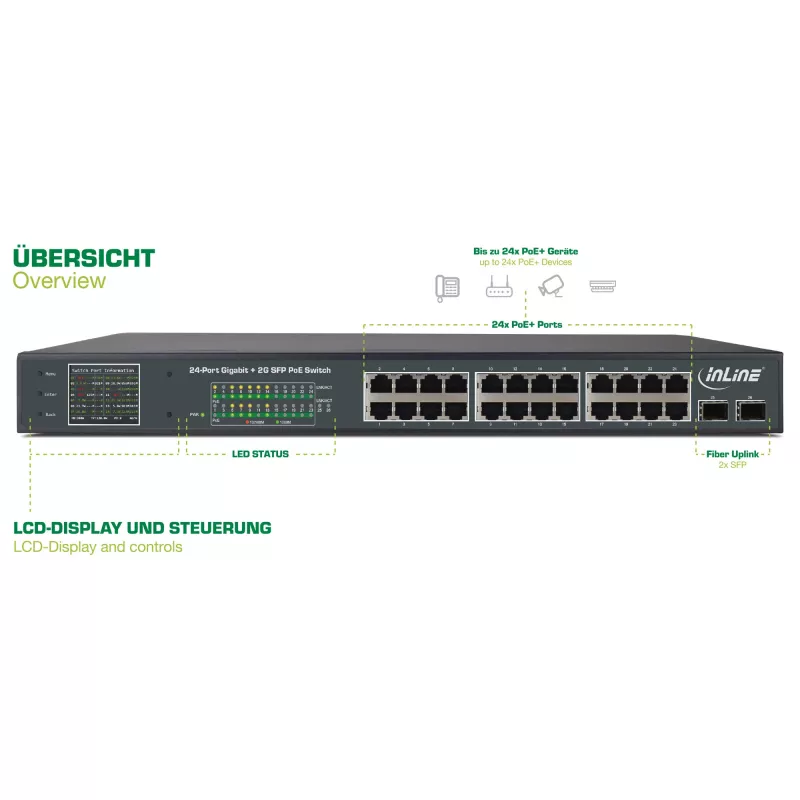

The LC display not only shows the operating state of the PoE port, but also the state of each port, such as e.g.: Output power, overload, short circuit, low workload, undervoltage, overvoltage, overheating, etc. These includes, for example:
Switch mode (Normal, VLAN (the switch supports the isolation of each port, but each port can still communicate with the uplink port), CCTV (the switch supports a maximum distance of 250 meters with a transmission speed of 10Mbps.
Switch bandwidth
PD type (PD=powered devices): Enhance: PD supports no PoE according to IEEE802.3at/af, Standard: PD supports PoE according to IEEE802.3at/af, Legacy: Using a Cisco-PD with ist own PoE standard
PD Reboot by deactivating/activating the corresponding port
PSE power fine (PSE=power supply equipment): This feature can increase the overall performance of the PoE budget
PSE port priority: Here you can set the PoE prioritization per port between high, medium and low
PSE port enable: Through this every individual port can be activated / deactivatedPSE port power: With this function, the PoE power can be selected in steps of 2W between 8W-32W
Fan control: This function gives you the option of specifying fan operation. You can choose from "Always On", "20% PB" (when the switch spends 20% of its power budget), and "40% PB".

Specifications

Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T,IEEE 802.3z 1000BASE-X Gbit/s Ethernet over Fiber-Optic, IEEE 802.3x Full Duplex and flow control, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
Ports: 24x 10/100/1000Base-T RJ45, Auto-MDI/MDI-X, 2x 1000Mb/s SFP
PoE ports: 1-24
PoE budget: 380W
Total output: 420W
LCD display: Real-time display of PoE operating status
PoE output power: Max. 32 watts per port
LED indicators: PWR, LNK/ACT PoE
Network cable: 10BASE-T: UTP Category 3, 4, 5 cable (100m)
100BASE-TX: UTP Category 5, 5e cable 100m)
1000BASE-T: UTP Category 5, 5e cable (100m)
1000BASE-SX: MMF, SMF
MAC address table: 8K, automatic learning, automatic updates
Jumbo Frame: 9216 Bytes
Packet buffer: 4.1Mbit
Transmission method: Store-and-forward
Packet forwarding rate: 38.69Mpps
Bandwidth: 52G

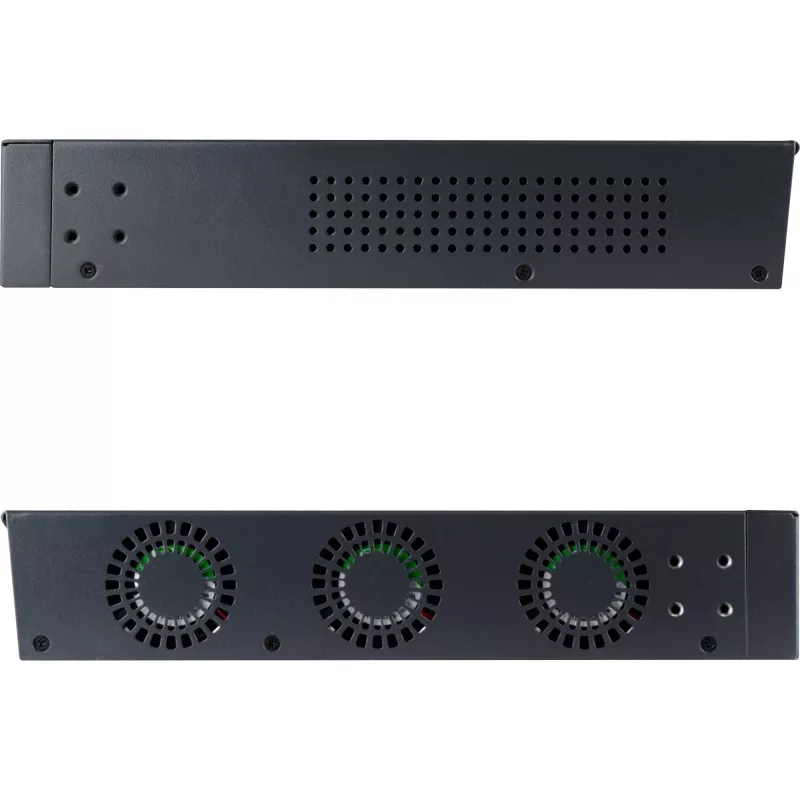

Number of fans: 3
Dimensions (W x D x H): 440x232x45mm
Weight: appr. 3.7kg

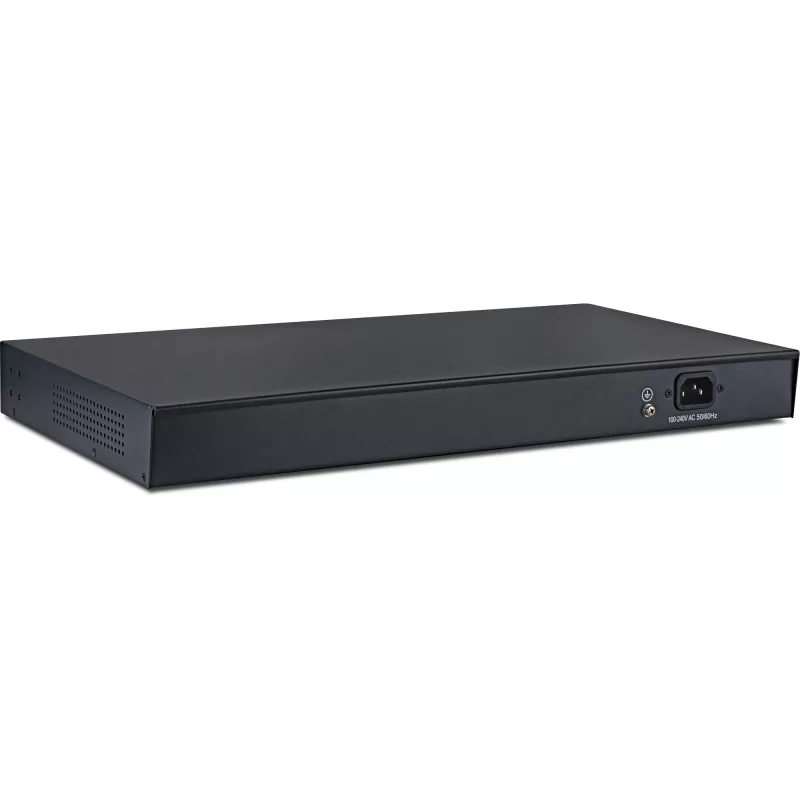

Mains input: 100~240V AC, 50/60Hz
Environmental conditions: Operating temperature -10-60°C, storage temperature -40-70°C, humidity in operation 10-90% non condensing, humidity during storage 5-90% non condensing
Surge protection: ± 6KV

Content of delivery:
1x InLine® PoE+ Gigabit Network Switch
1x user manual (German/English)
1x power cable
2x 19" mounting brackets
8x screws for the mounting brackets
4x rubber feet

InLine PoE+ Gigabit Network Switch 24 port,1 Gb/s, 2xSFP,19"1U (incl. brackets). Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

How to use

Install the InLine PoE+ Gigabit Network Switch in a 19" rack using the supplied mounting brackets or place it on a flat surface with the rubber feet. Connect network devices to the RJ45 ports using Cat.5/5e/6 cables up to 100 meters and use SFP modules for fiber links where longer reach is required. Configure PoE settings and port modes via the LCD menu: set PD type, enable/disable individual PSE ports, assign PSE port priority, choose per-port PoE power (8–32 W) and use PD reboot if a powered device needs to be reset. Monitor port status and alarms on the LCD for load, voltage and temperature conditions.

Recommendations

For reliable PoE deployment, plan total power consumption to stay within the 380 W PoE budget and use the PSE port priority and per-port power settings to ensure critical devices keep power. Use appropriate SFP modules and singlemode/multimode fiber for long-distance links and maintain adequate ventilation around the switch to prevent overheating.
