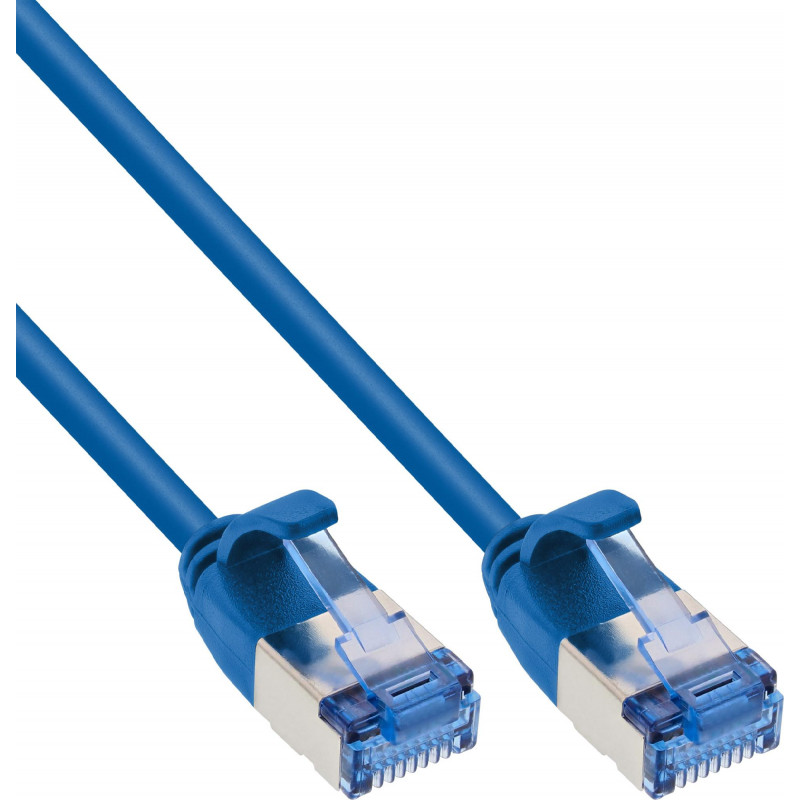

InLine Slim Cat6a U/FTP patch kábel RJ45, 1 m, modrý

The InLine Slim Cat6a U/FTP Patch Cable is a 1 m blue Ethernet cable with a slim 4 mm outer diameter, designed for space-saving installation in cable ducts and congested areas. It features U/FTP shielding, gold-plated contacts, and supports data transmission up to 500 MHz.

Key features

• Slim design with 4 mm outer diameter for flexible routing
• U/FTP shielding for reliable Cat6a performance
• Gold-plated contacts for secure connections
• Moulded RJ45 connectors with latch protection
• Solid copper conductors, 4x2x32 AWG
• 1:1 pinout according to EIA/TIA-568B

Specifications

• Brand: InLine
• MPN: 71901B
• Product type: Ethernet Patch Cable
• Cable standard: Cat6a
• Cable shielding: U/FTP
• Cable length: 1 m
• Connector 1: RJ45
• Connector 2: RJ45
• Connector contacts plating: Gold
• AWG wire size: 32
• Jacket material: Polyvinyl chloride (PVC)
• Product colour: Blue
• Outer diameter: 4.0 mm
• Conductor material: Copper
• Conductor configuration: 4x2x32 AWG/7
• Pinout: 1:1 according to EIA/TIA-568B
• Data transmission rate: 10 Gb/s
• Max. supported power: 15.4 W
• Power over Ethernet (PoE): Yes
• Operating temperature: -10 to +60°C
• Storage temperature: 0 to +50°C
• Country of origin: China
