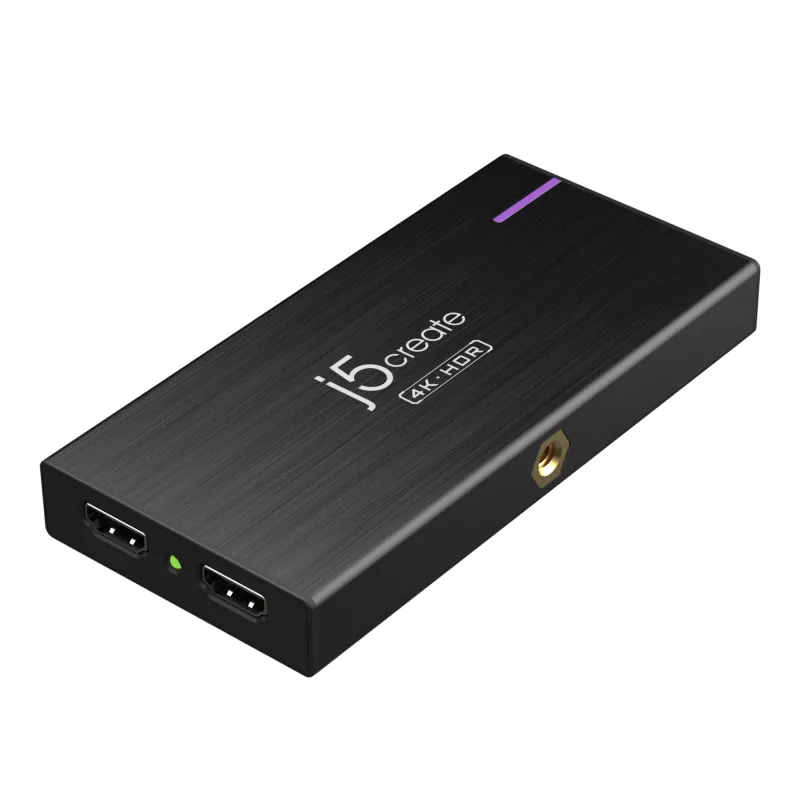

j5create JVA14-N 4K Game Capture Station USB 3.2 Gen 1 4K30 FPS

The j5create JVA14-N 4K Game Capture Station is a USB 3.2 Gen 1 capture device for streaming and recording gameplay. It captures gameplay at up to 4K @ 30 FPS while providing 4K @ 60 FPS passthrough for compatible consoles. The unit includes separate 3.5 mm Audio In and Mic In ports to connect a headset or microphone for live commentary and is compatible with macOS® and Windows® laptops and desktops. The JVA14 works with OBS™ and other streaming software and supports PlayStation™ 4 / 5, Xbox™ Series X / S and Xbox™ One X / S.

Advantages

The JVA14 offers simple plug-and-play operation over USB 3.2 Gen 1, enabling low-latency passthrough and high-quality 4K capture up to 30 FPS. Integrated audio and mic inputs allow direct voice commentary without additional adapters. Broad software compatibility with OBS and other streaming applications ensures easy integration into existing streaming setups. Compact form factor and cross-platform support make it suitable for both desktop and laptop use.

Suitable for

• Console gamers streaming or recording 4K gameplay
• Content creators producing gameplay videos for platforms like Twitch and YouTube
• Users needing a compact capture solution for macOS and Windows systems

Key specifications

• Model: j5create JVA14-N (MPN: JVA14-N, EAN: 4712795086461)
• Interface: USB 3.2 Gen 1
• Capture resolution: up to 4K @ 30 FPS
• Passthrough: 4K @ 60 FPS

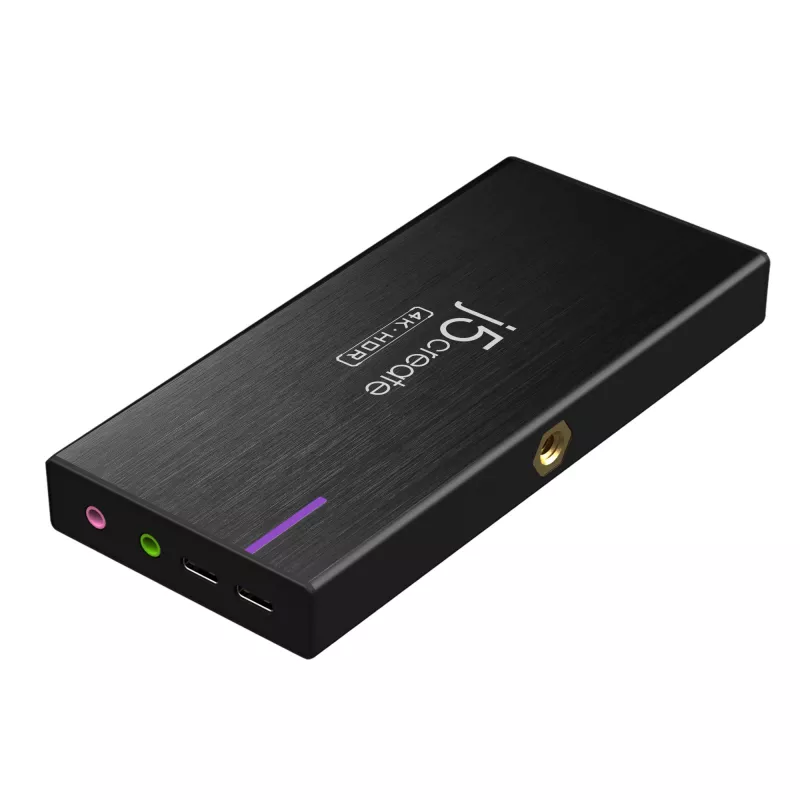

• Audio: 3.5 mm Audio In and Mic In ports
• OS compatibility: macOS®, Windows®; compatible with OBS™ and other streaming software
• Console compatibility: PlayStation™ 4 / 5, Xbox™ Series X / S, Xbox™ One X / S

How to use

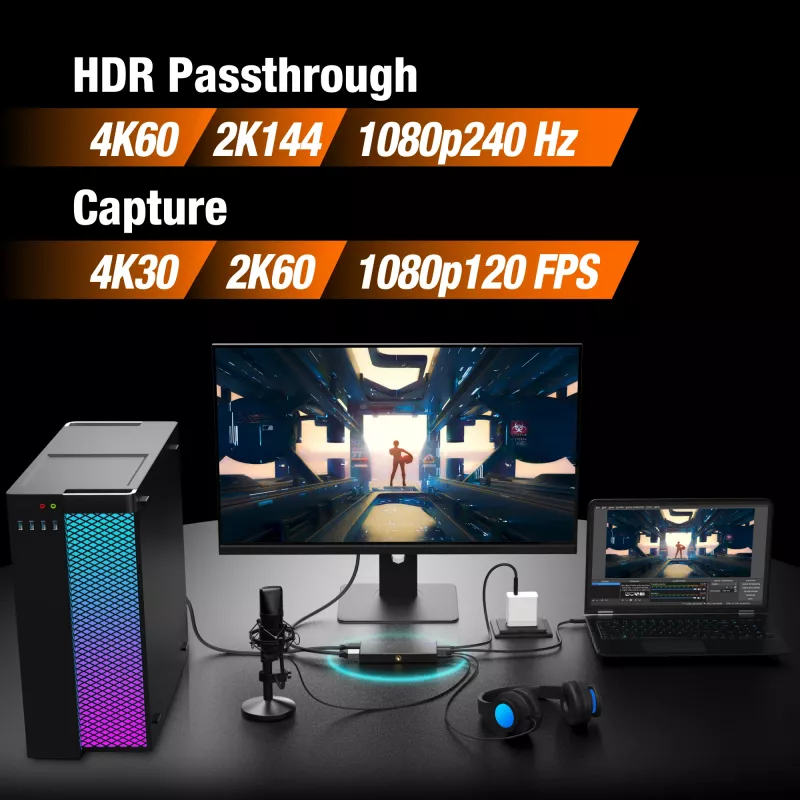

Connect the JVA14 to your console HDMI output and to your display via HDMI for passthrough. Plug the device into your computer using a USB 3.2 Gen 1 port. Connect a headset or microphone to the 3.5 mm Audio In or Mic In if you need live commentary. Launch your streaming or recording software (for example OBS), select the JVA14 as the video and audio capture source, configure resolution and frame rate, then start streaming or recording.

Recommendations

For reliable performance, use a USB 3.2 Gen 1 port directly on the host computer (avoid unpowered USB hubs), ensure HDMI cables are rated for 4K, and update streaming software to the latest version for best compatibility.
