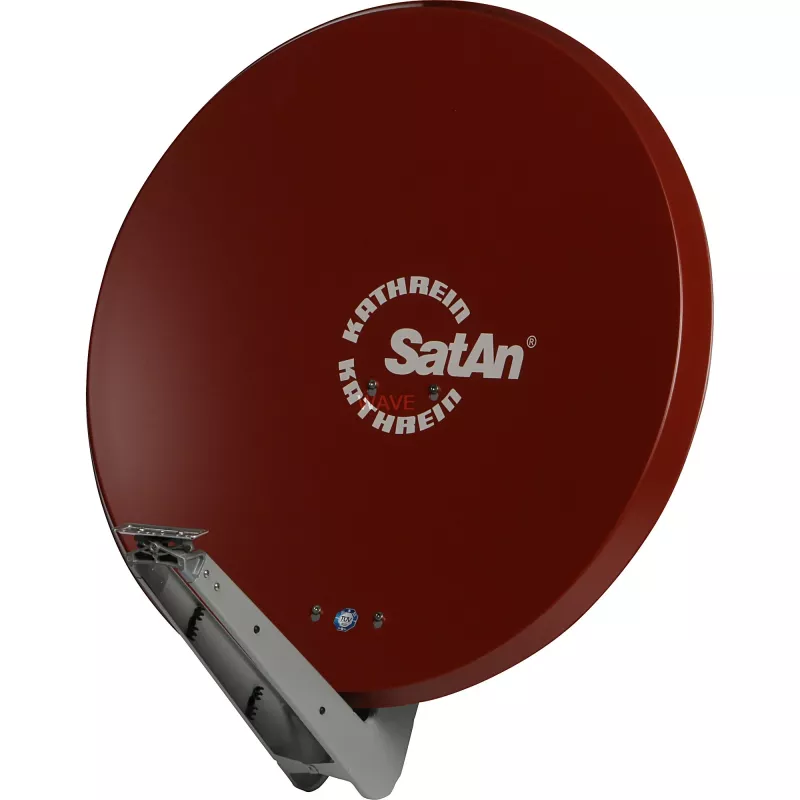

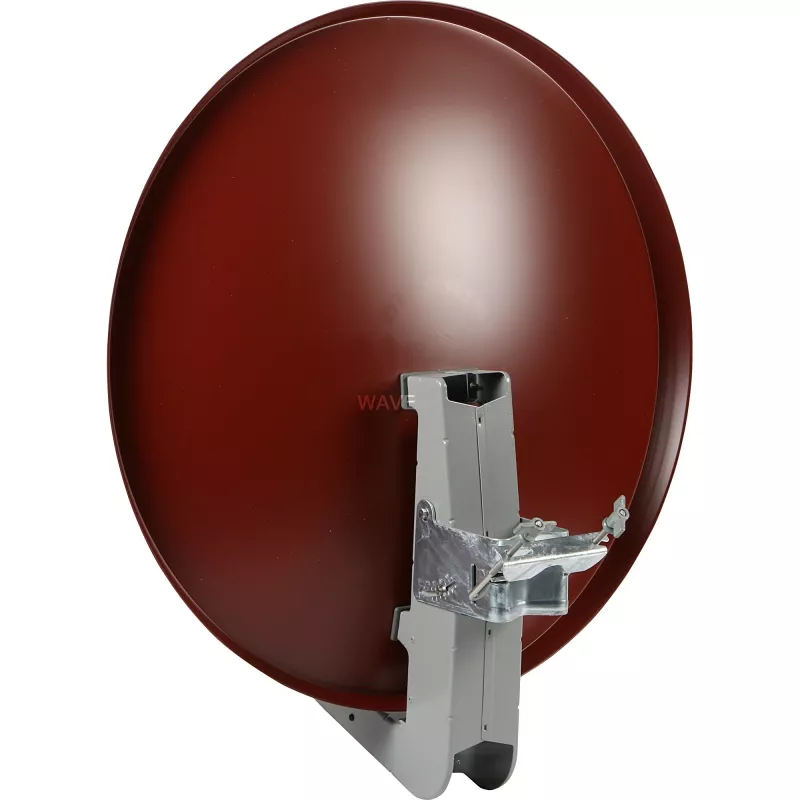

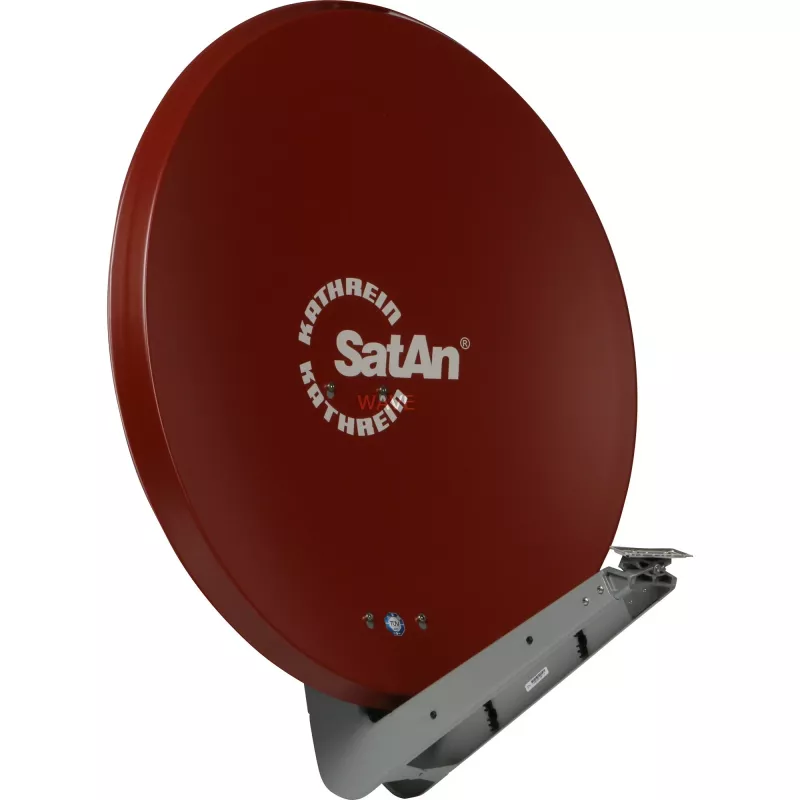

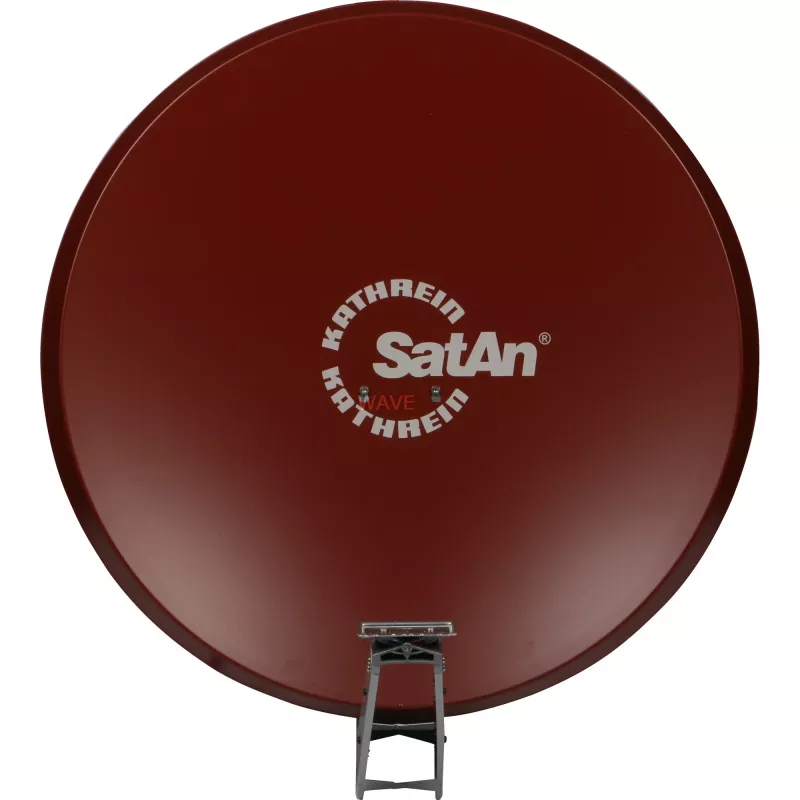

KATHREIN CAS 90ro Offset parabolická anténa 90 cm červenohnedá 20010034

Offset parabolic antenna with a 90 cm dish diameter, delivering high gain for reliable satellite reception. Its powder-coated aluminium reflector ensures durability and resistance to weather, while the galvanized steel back mount provides sturdy installation.

Advantages

High gain of 39.8 dB at 11.3 GHz for clear signal reception. Wide mast clamp range (48-90 mm) for flexible mounting. Durable construction with powder-coated aluminium and galvanized steel.

Suitable for

• Receiving satellite TV and radio signals
• Installations requiring a robust 90 cm dish
• Areas with moderate wind loads

Key specifications

• Dish diameter: 90 cm
• Gain: 39.8 dB at 11.3 GHz
• Frequency range: 10.70 - 12.75 GHz
• Offset angle: 21.5°
• Mast clamp diameter: 48 - 90 mm
• Wind load: 390 N at 100 km/h, 660 N at 130 km/h
• LNB feed diameter: 40 mm
• F/D ratio: 0.6
• Polarization: Linear
• Colour: Red-brown

Recommendations

Ideal for users seeking a high-performance satellite antenna with robust build quality and flexible mounting options.
