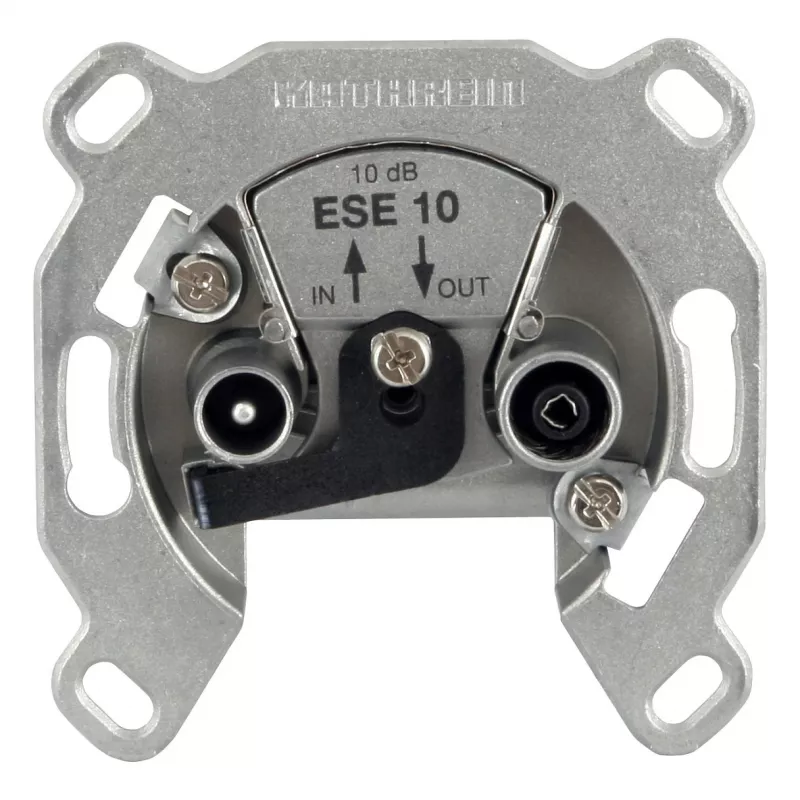

Kathrein ESE 10 anténna zásuvka pre TV/rádio, pod omietku, 75 Ohm, IEC konektor samec/samica (274233)

The Kathrein ESE 10 is a professional antenna terminal socket designed to deliver reliable TV and radio reception in cable and terrestrial systems. This flush-mounting wall outlet provides two separate IEC connections – one male output for TV and one female output for radio – allowing you to connect a television and a radio simultaneously with clean, stable signals.

Advantages

With high shielding effectiveness of >75 dB (30-1000 MHz), the ESE 10 effectively suppresses interference and ensures excellent signal integrity. It also features a low tap loss of just 1.5 dB on both outputs, maintaining strong signal levels. The built-in decoupling between TV and radio outputs (>20 dB) prevents cross-modulation and keeps both devices operating without disturbance.

Suitable for

• Cable TV (BK) networks and terrestrial antenna installations
• Flush-mounted socket boxes in residential and commercial buildings
• Home theatre and radio setups requiring separate outputs

Key specifications

• TV frequency range: 5 – 862 MHz
• Radio frequency range: 87.5 – 108 MHz
• Impedance: 75 Ohm
• Return loss: >10 dB
• IEC male (TV) and IEC female (Radio) connectors
• Number of outputs: 2 (1 x TV, 1 x Radio)

Recommendations

For optimal signal quality, use high-quality 75 Ohm coaxial cables and ensure the socket is properly terminated. The flush-mount design fits standard wall boxes, making installation straightforward for both new builds and renovations.
