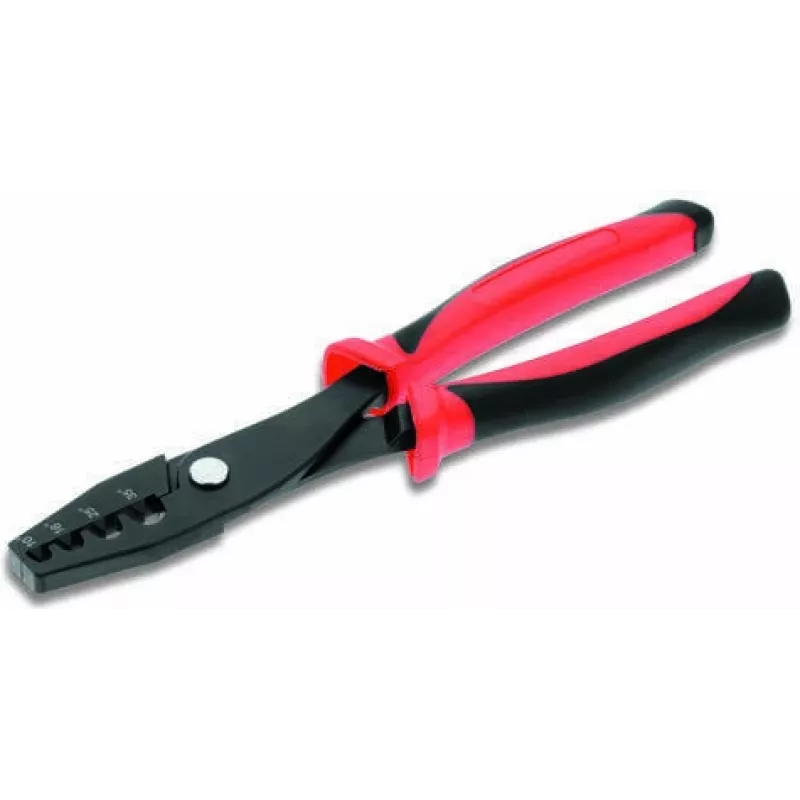

Krimpovacie kliešte na káble Cimco 10 1904 230 mm čierna červená

The Cimco 10 1904 cable crimper (230 mm) is a hand crimping pliers designed for insulated and non-insulated wire end ferrules, including twin ferrules. It uses an indent crimp method and comes with interchangeable, hardened precision crimping profile inserts held in the tool body by a catch holder. Two additional profile inserts are stored in integral magazine holders in the pliers' legs. The tool body is made of specially tempered, hardened sheet steel and features leverage transfer to reduce manual force. An adjustable ratchet mechanism with automatic release ensures consistent, standard-compliant crimping pressure. The pliers include ergonomic two-component handle sleeves and weigh approximately 690 g with three crimping inserts fitted.

Advantages

The interchangeable crimping profile inserts allow quick profile changes without extra tools, while captive storage keeps spare profiles immediately available. The tempered, hardened steel body and precision inserts provide durable, repeatable crimps. The leverage transfer reduces required manual effort, and the adjustable ratchet with automatic release ensures reliable, standard-compliant crimping pressure. Ergonomic two-component handles improve grip and operator comfort during repeated use.

Suitable for

• Crimping insulated wire end ferrules
• Crimping non-insulated wire end ferrules
• Crimping twin (double) wire end ferrules
• Electrical installation and control cabinet wiring
• Maintenance and repair work on electrical equipment

Key specifications

• Brand: cimco
• Model / MPN: 10 1904 / 101904
• EAN: 4021103019047
• Length: 230 mm
• Weight (with 3 inserts): approx. 690 g
• Crimp type: indent crimp
• Material: specially tempered, hardened sheet steel
• Features: interchangeable hardened crimping profile inserts, integral magazine holders, leverage transfer, adjustable ratchet with automatic release, ergonomic 2-component handles

How to use

Select the correct crimping profile insert for the ferrule type and ensure it is securely seated in the catch holder. If needed, change profiles using the captive magazine holders to retrieve spare inserts. Insert the prepared conductor with ferrule into the crimp opening, position the tool, and squeeze the handles until the ratchet releases automatically to apply the specified crimping pressure. Release the handles and remove the crimped connector. Follow standard procedures for conductor preparation and ferrule selection to achieve reliable electrical connections.

Recommendations

Use the tool within its intended application for ferrules; choose the correct profile insert for insulated, non-insulated or twin ferrules. Regularly inspect and keep the crimping profiles clean and undamaged, and replace worn inserts. Do not attempt to crimp conductors or terminals outside the specified range for the installed profile.
