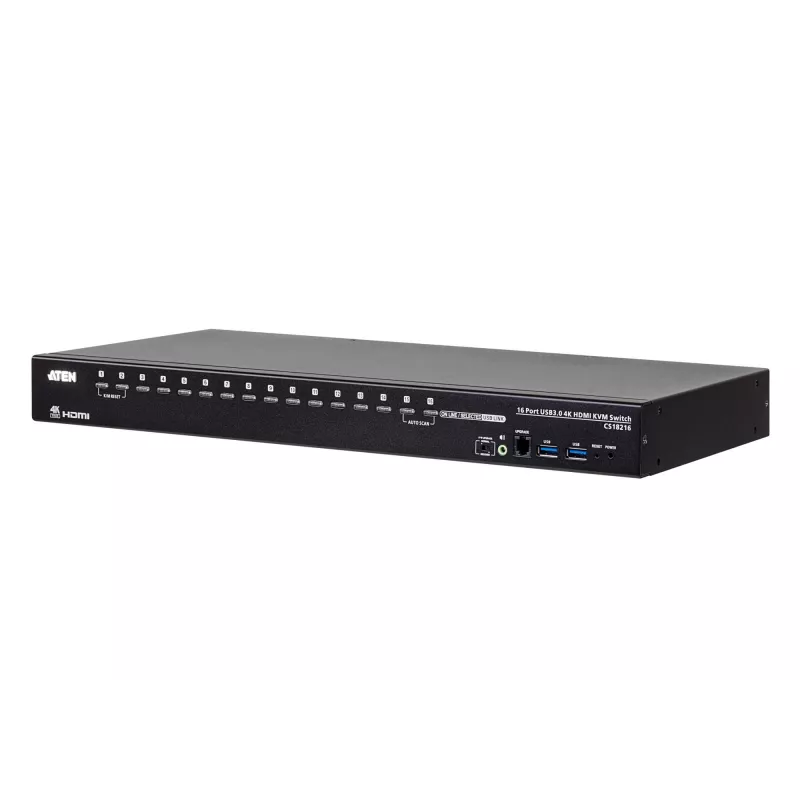

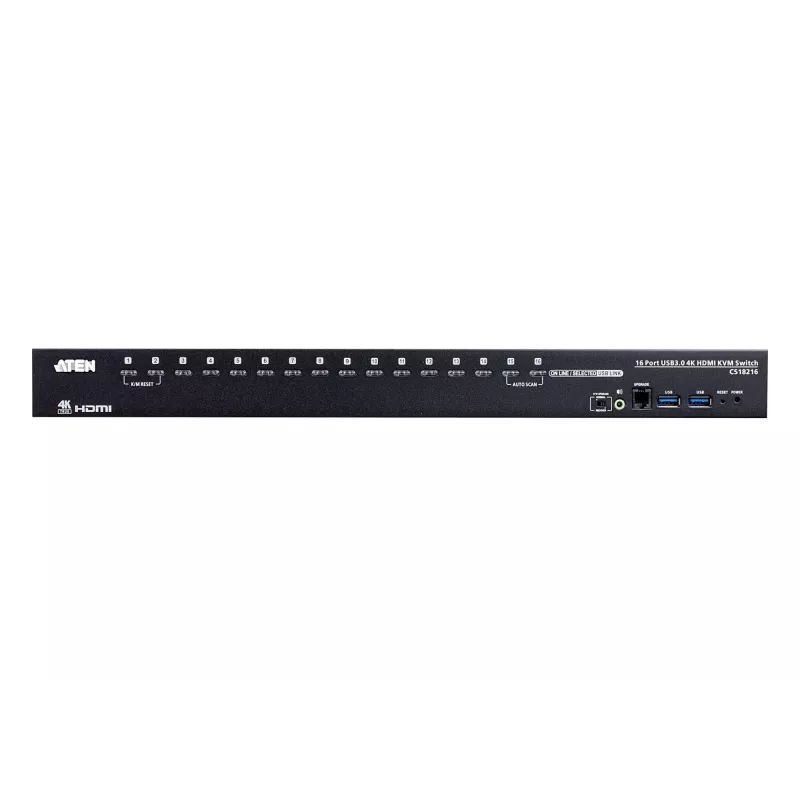

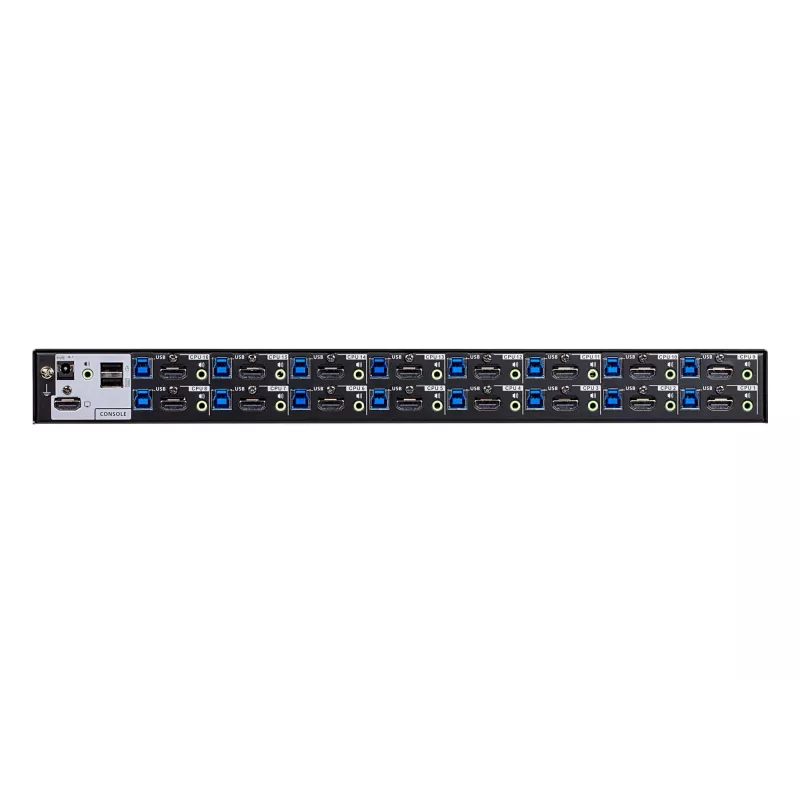

KVM switch ATEN 16-portový USB 3.0 4K HDMI CS18216-AT-G

The ATEN CS18216 16-Port USB 3.0 4K HDMI KVM Switch enables control of up to 16 HDMI-equipped computers from a single USB keyboard, USB mouse and one HDMI monitor. It supports 4K DCI resolution (4096 x 2160 @ 60Hz) for high-fidelity video, includes a built-in USB 3.1 Gen 1 hub with data rates up to 5 Gbps, and is housed in a robust metal chassis. The unit supports cascading up to two levels to manage up to 256 computers from a single console and allows multi-display setups by stacking up to eight units to drive up to eight monitors. Two-level password authorization and multiple port selection methods (front pushbuttons, hotkeys, RS-232 commands and OSD) provide flexible control and access security.

Advantages

The CS18216 delivers 4K@60Hz video quality, fast USB 3.1 Gen 1 data transfer, and versatile control options while maintaining stable display output through ATEN Video DynaSync™ and EDID Expert™ technologies. Its cascading and stacking capabilities expand system scale without additional consoles. The device’s metal housing and included rack-mount kit make it suitable for professional rack installations, and the two-level password protection secures access to connected computers.

Suitable for

• Server rooms and data centres
• Control rooms and surveillance workstations
• Broadcast, media and content production environments
• Enterprise, government and financial institutions managing multiple PCs
• Telecom and industrial computer installations requiring high-resolution video

Key specifications

• Model: CS18216-AT-G
• Ports: 16 HDMI computer ports; built-in USB 3.1 Gen 1 hub
• Maximum resolution: 4K DCI (4096 x 2160 @ 60Hz)
• Control interfaces: USB keyboard/mouse, OSD, front pushbuttons, hotkeys, RS-232
• Cascading: up to 2 levels (control up to 256 computers)
• Stacking: up to 8 units (multi-monitor comparison up to 8 monitors)
• Power: 12 V DC (typical consumption 13.12 W)
• Weight: 4.37 kg
• Colour: Black
• Package contents: CS18216 switch, rack mounting kit, HDMI cables (2), USB 3.0 cables (2), audio cables (2), firmware upgrade cable, foot pad set (4), power adapter, user instructions

How to use

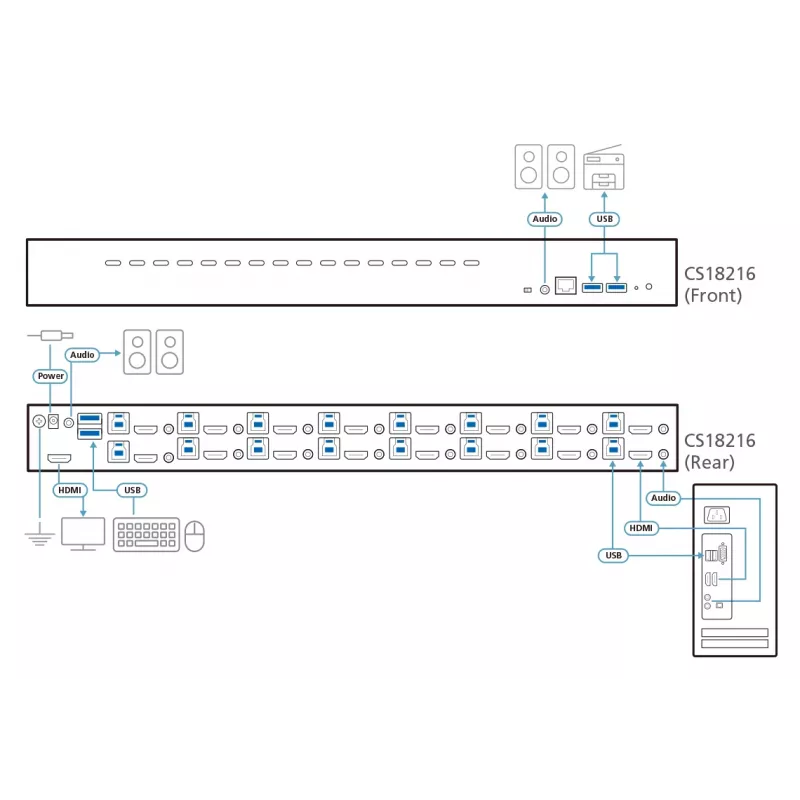

Install the CS18216 in a rack using the supplied mounting kit or place it on a flat surface with the foot pads. Connect the HDMI and USB cables from each computer to the corresponding KVM ports on the switch, attach the HDMI monitor and USB keyboard/mouse to the console ports, and connect the power adapter. Use the front pushbuttons, OSD menu, hotkeys or RS-232 commands to switch between connected computers. For expanded setups, follow the cascading instructions to link additional CS18216 units and configure the address settings to manage up to 256 computers; for multi-display comparison, stack units as described in the manual.

Recommendations

For reliable 4K@60Hz performance, use high-quality HDMI 2.0 or higher cables and ensure connected displays and source devices support the stated resolution. When deploying multiple units, follow ATEN’s cascading and stacking procedures in the user manual and configure two-level passwords to limit access and improve security.
