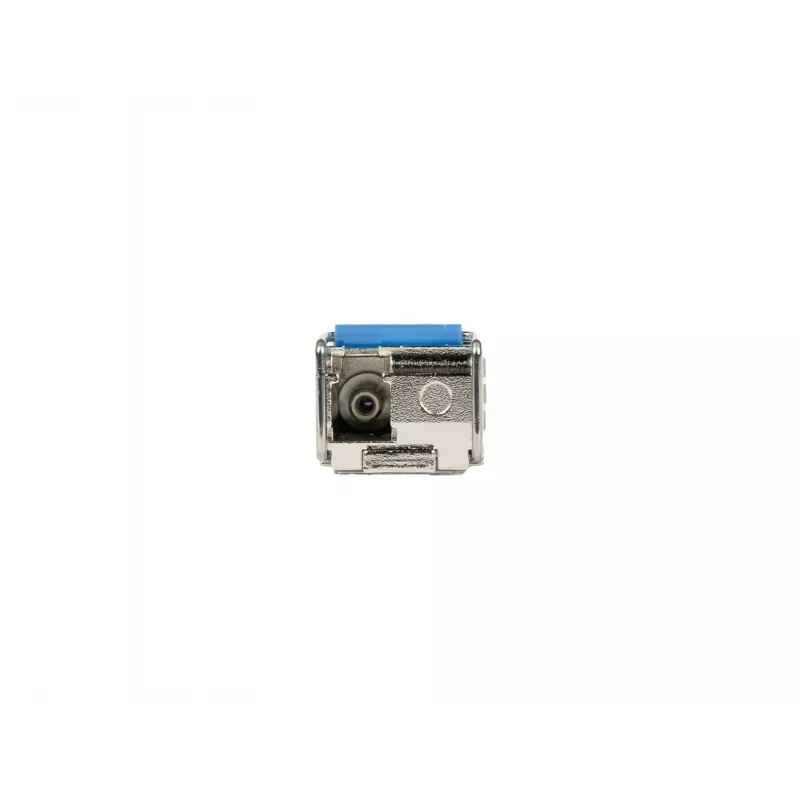

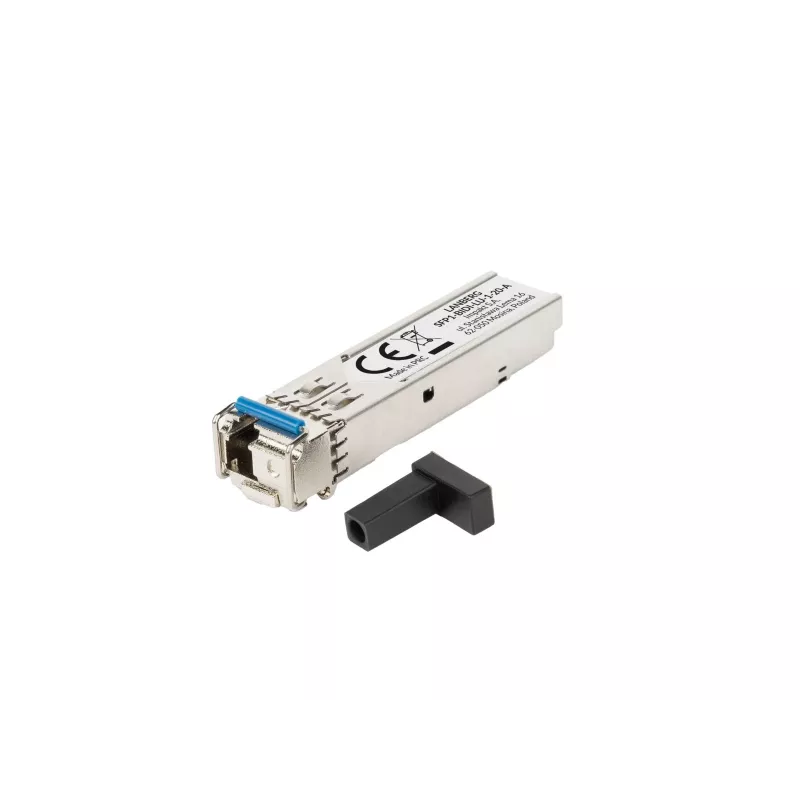

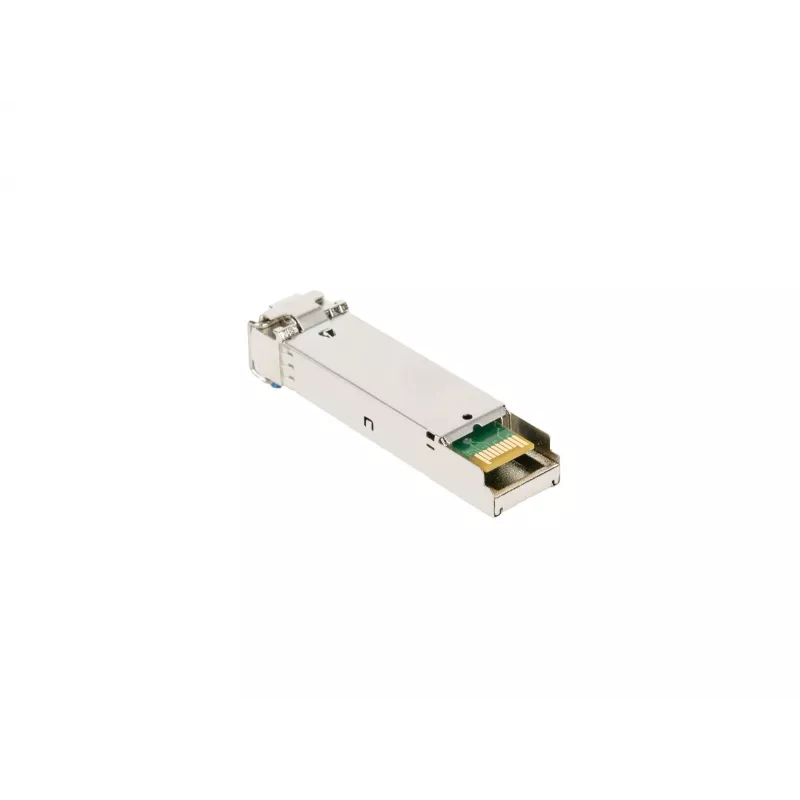

Lanberg SFP-BiDi modul, do 20 km, 1 Gb/s, 1310/1550 nm, LC/UPC, typ A (SFP1-BIDI-LU-1-20-A)

The Lanberg SFP1-BIDI-LU-1-20-A is a bidirectional SFP transceiver module for single-mode fiber, supporting data rates up to 1.25 Gb/s and a range of up to 20 km. It uses 1310 nm and 1550 nm wavelengths to transmit and receive over a single fiber, and features a Simplex LC/UPC connector. This module is the A version and operates only as a complementary pair with a B version module.

Key features

• Bidirectional data transmission over a single single-mode fiber
• Uses 1310 nm and 1550 nm wavelengths
• Supports speeds up to 1.25 Gb/s
• Simplex LC/UPC connector
• Hot-swappable SFP form factor
• Range up to 20 km
• BIDI A version: TX 1310 nm, RX 1550 nm
• Must be paired with a BIDI B version module

Specifications

• Product type: Transceiver Module
• Brand: Lanberg
• MPN: SFP1-BIDI-LU-1-20-A
• SFP transceiver type: SFP
• Maximum data transfer rate: 1 Gbps
• Ethernet LAN: Yes
• Single-mode fiber (SMF) supported: Yes
• Fiber optic connector: LC
• Connector: LC/UPC
• Wavelengths: 1310 nm, 1550 nm
• Range: 20 km
• Max transmission speed: 1.25 Gb/s
• Operating temperature: 0 - 70 °C
• Recommended ambient temperature: 0 - 70 °C
• Recommended ambient humidity: 5 - 85%
• Transmitter power (Tx Power): -9 to -3 dBm
• Receiver sensitivity (Rx Sens.): -22 dBm
• Receiver overload threshold (Rx Overload): -3 dBm
