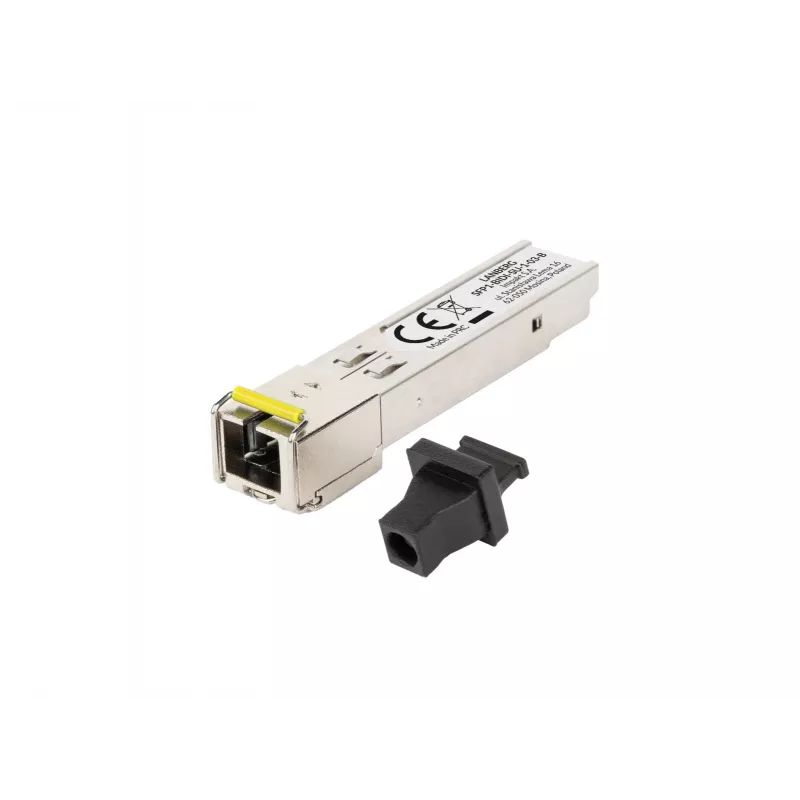

Lanberg SFP-BiDi modul, do 3 km, 1 Gb/s, 1310/1550 nm, SC/UPC, typ B (SFP1-BIDI-SU-1-03-B)

The Lanberg SFP1-BIDI-SU-1-03-B is a bidirectional SFP transceiver module that enables fiber-optic communication over a single single-mode fiber using 1310 nm and 1550 nm wavelengths. It supports Gigabit Ethernet connections up to 1.25 Gb/s and features a Simplex SC/UPC connector. This B version module operates as part of a complementary A+B pair, with TX at 1550 nm and RX at 1310 nm.

Key features

• Bidirectional (BIDI) technology using 1310 nm and 1550 nm wavelengths
• Single-mode fiber support
• Simplex SC/UPC connector
• Hot-swappable SFP form factor
• Transmission range up to 3 km
• Gigabit Ethernet connectivity up to 1.25 Gb/s

Specifications

• Product type: Transceiver Module
• Brand: Lanberg
• MPN: SFP1-BIDI-SU-1-03-B
• SFP transceiver type: SFP
• Maximum data transfer rate: 1 Gbps
• Fiber optic connector: SC
• Single-mode fiber (SMF) supported: Yes
• Ethernet LAN: Yes
• Form factor: SFP
• Wavelengths: 1310 nm, 1550 nm
• Range: 3 km
• Fiber type: Single-mode
• Max transmission speed: 1.25 Gb/s
• Connector: SC/UPC
• Operating temperature: 0 - 70 °C
• Recommended ambient temperature: 0 - 70 °C
• Recommended ambient humidity: 5 - 85%
• Transmitter Power (Tx Power): -9 - -3 dBm
• Receiver Sensitivity (Rx Sens.): -22 dBm
• Receiver Overload Threshold (Rx Overload): -3 dBm
