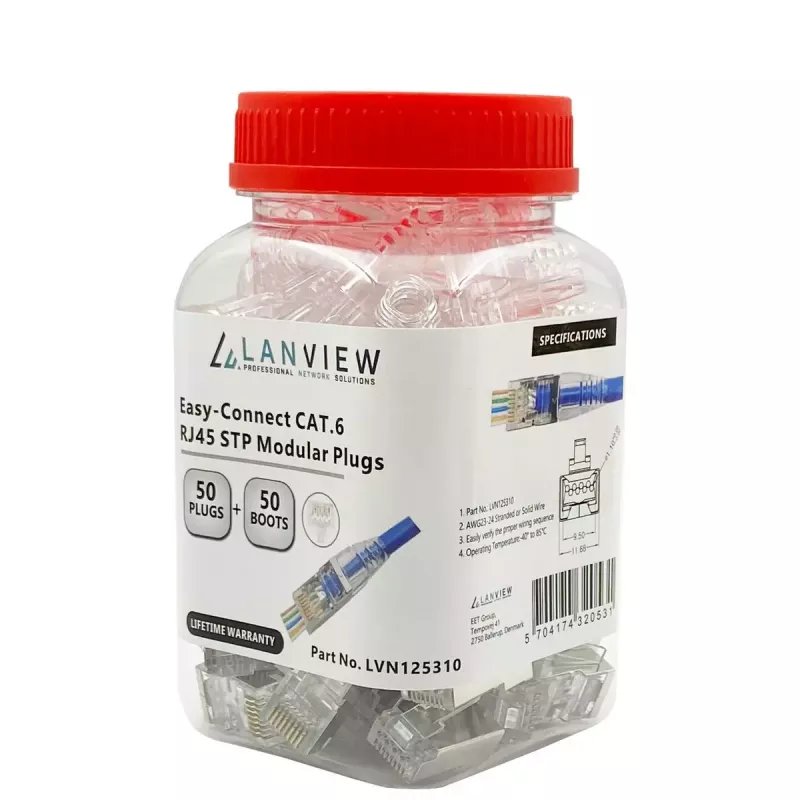

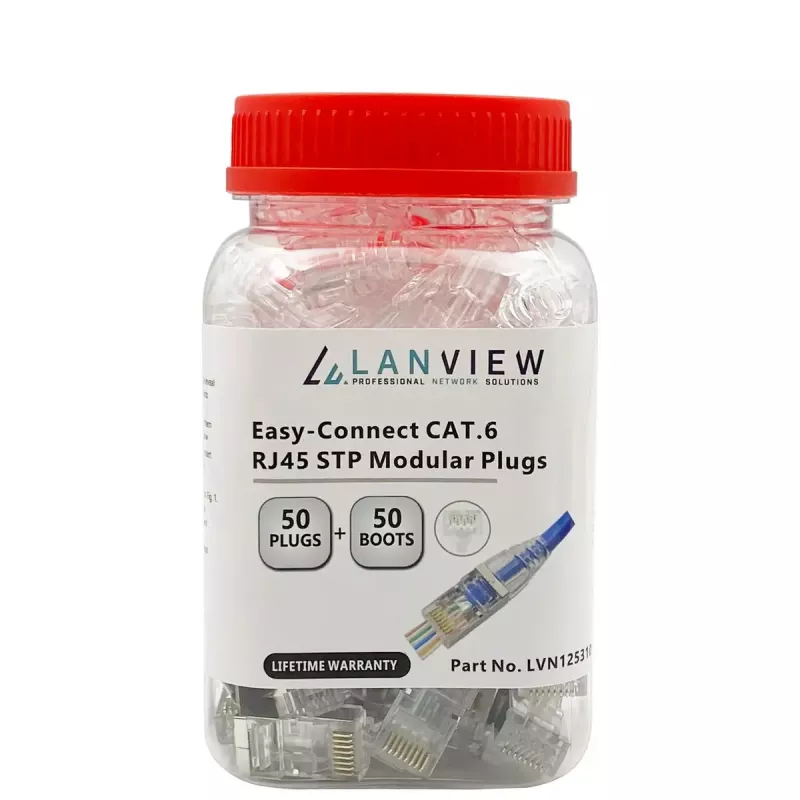

Lanview LVN125310 RJ45 konektor kábla, transparentný

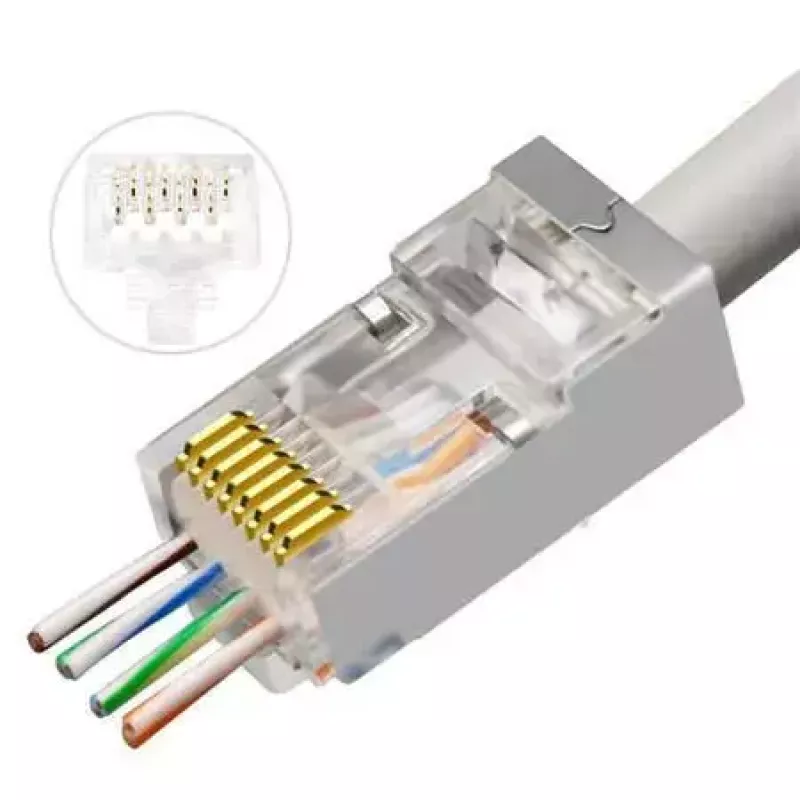

The Lanview LVN125310 RJ45 wire connector is a compact male connector designed for reliable Ethernet network terminations. It is suitable for use with both stranded and solid cables and comes in a transparent color. The connector uses a new easy-connect terminating principle that allows conductors to be pulled through the front of the connector, simplifying installation while reducing the distance between the pair twist and the contact pins to optimize performance.

Advantages

The easy-connect design speeds up termination by permitting wires to be inserted from the front, reducing installation time and handling. Compatibility with stranded and solid cable types increases versatility for different cabling situations. A reduced distance between pair twist and contacts helps maintain signal integrity and supports consistent network performance.

Suitable for

• Ethernet patch cables (Cat5e/Cat6 installations where RJ45 is required)
• Field terminations and on-site network repairs
• Structured cabling in offices, data closets, and small network deployments

Key specifications

• Brand: Lanview
• Model / MPN: LVN125310
• EAN: 5704174320531
• Connector type: RJ45, male
• Color: transparent
• Suitable cable: stranded and solid conductors
• Pack quantity: 50 pieces
• Weight (pack): 198 g
• Width: 11.6 mm
• Depth: 21 mm

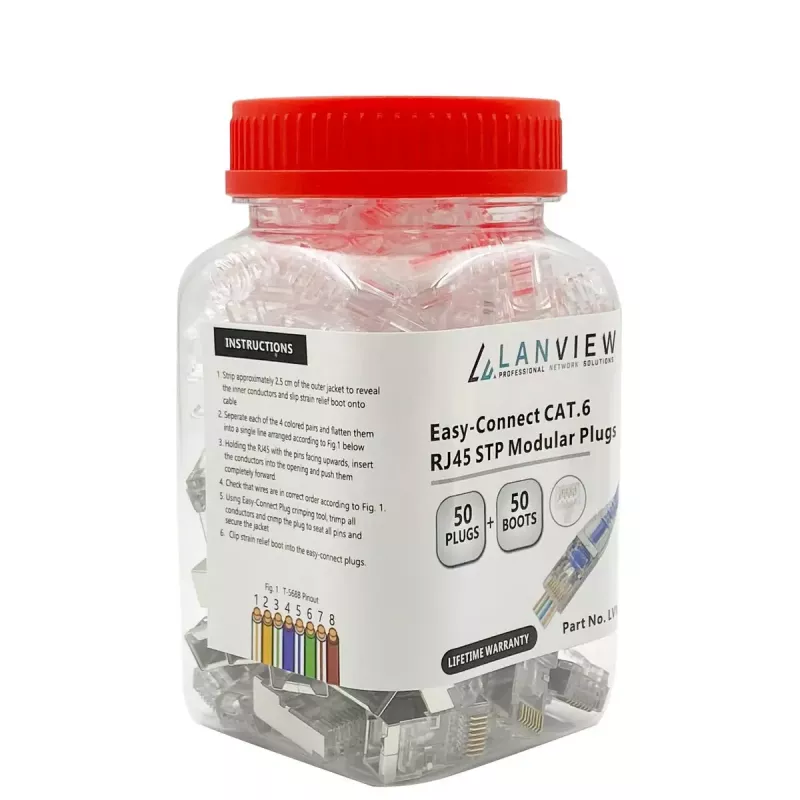

How to use

Strip the cable jacket and untwist pairs to the length recommended for the connector. Pull each conductor through the front of the RJ45 connector following the color code for the intended wiring standard. Seat the conductors fully so the pair twist remains close to the contact pins, then terminate according to the connector's instructions (crimp or punch where applicable) to ensure reliable contact.

Recommendations

Use with the appropriate crimping tool or termination method specified for the Lanview LVN125310. Keep pair twist as short as possible before the contacts to preserve signal quality. Verify terminations with a cable tester after installation.
