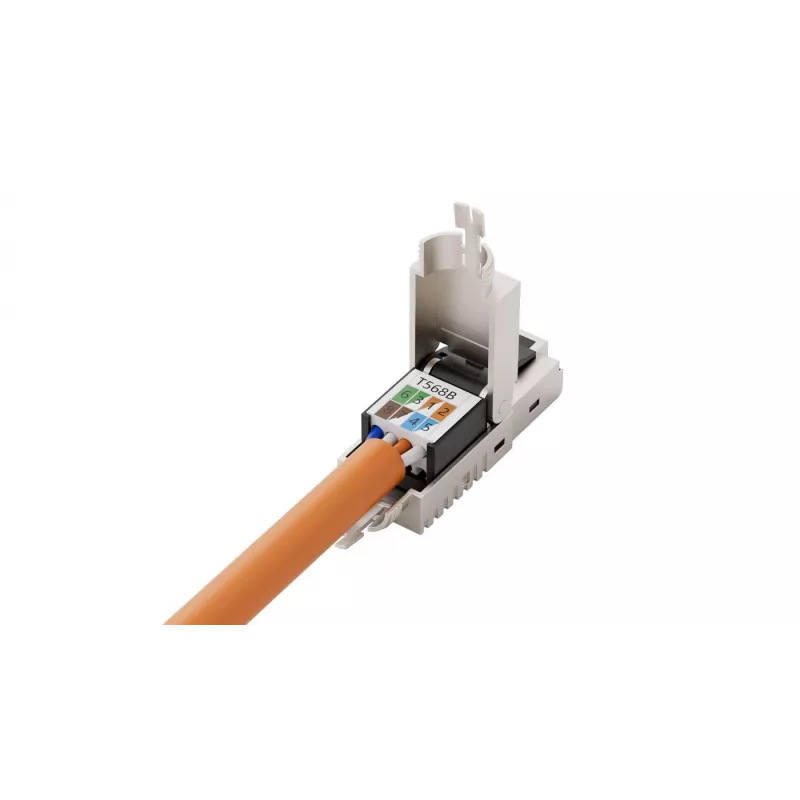

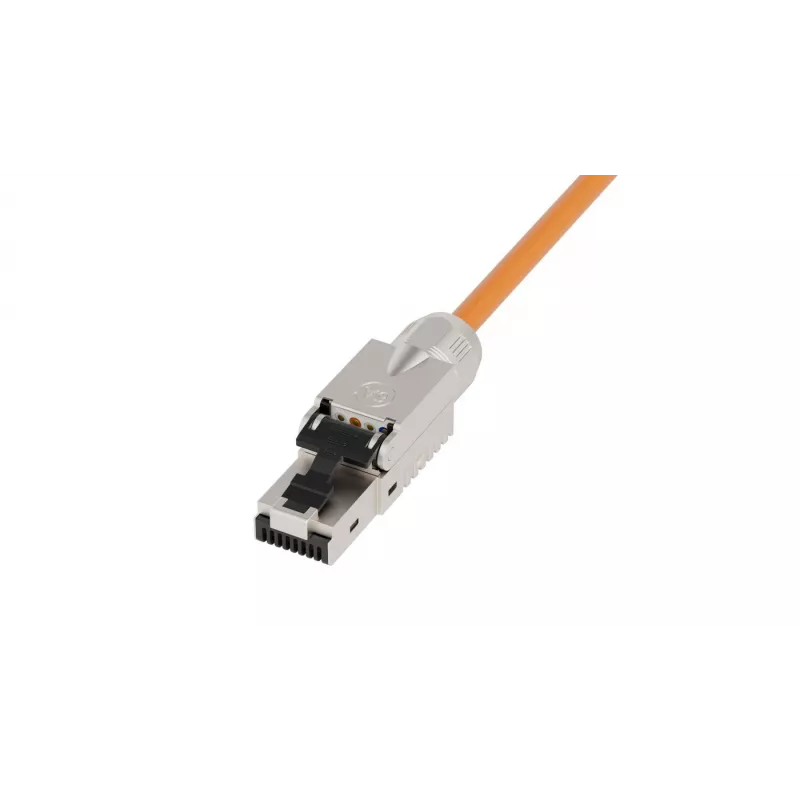

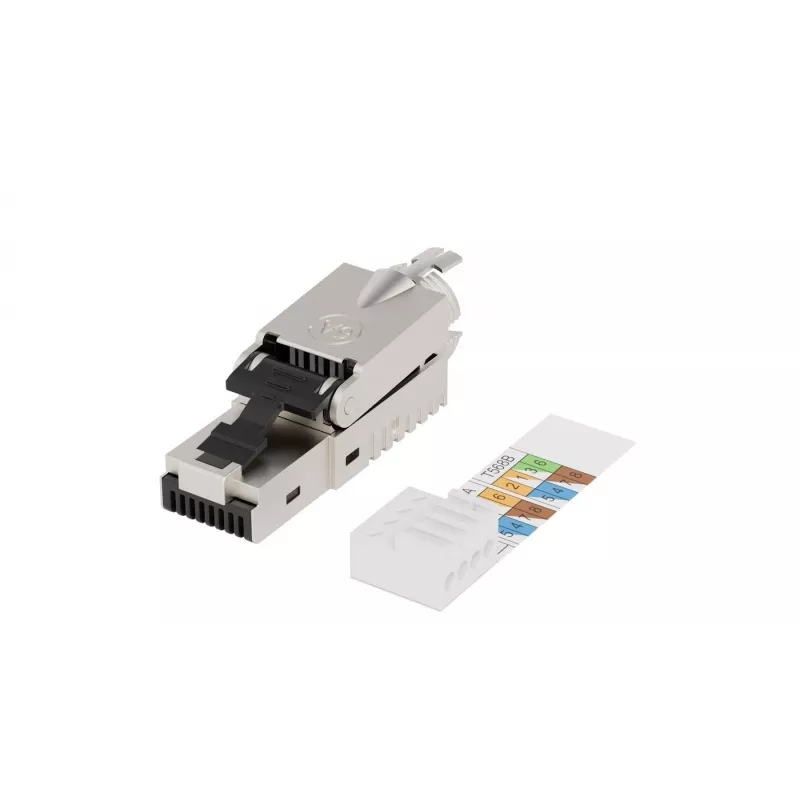

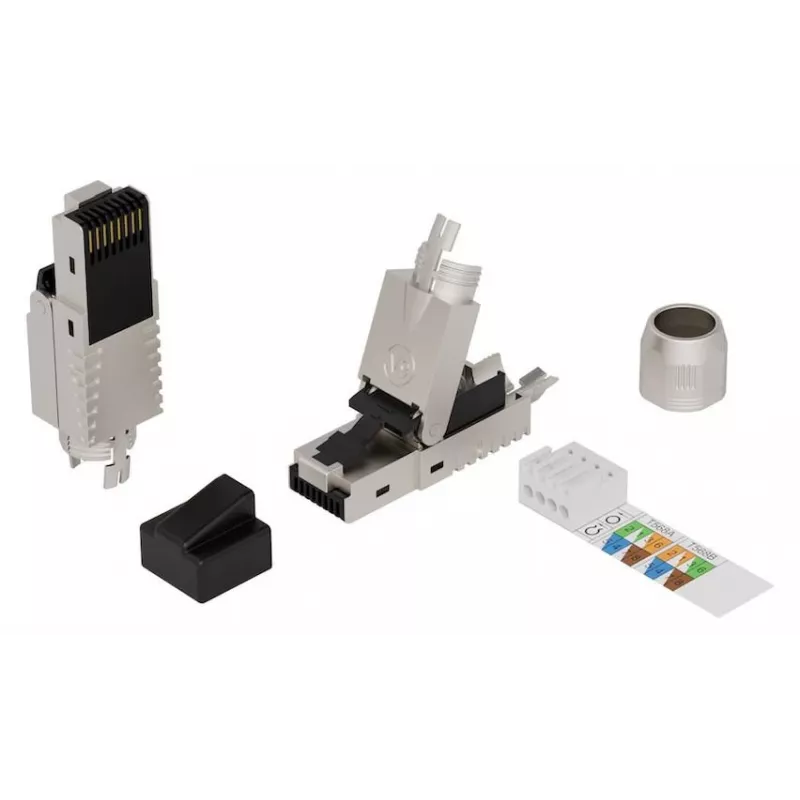

Lanview LVN125417 konektor vodičov RJ45 zinok

The Lanview LVN125417 is a male RJ45 wire connector designed for direct termination on larger-gauge cables such as Cat6a. Made from durable zinc and weighing 22 g, the compact connector (15 mm wide × 45 mm deep) is supplied as a single unit per pack and is intended for reliable network connections, including installations of IP cameras.

Advantages

The connector supports both unshielded and shielded installations, is suitable for larger AWG cables, and offers a compact, robust zinc construction for long-term durability. Its single-piece packaging makes it convenient for one-off or small-scale installations.

Suitable for

• Termination of Cat6a and other large-AWG network cables
• IP camera network installations
• Shielded (STP) and unshielded (UTP) Ethernet connections
• Small-scale or individual network repairs and deployments

Key specifications

• Model: Lanview LVN125417
• Type: Male RJ45 wire connector
• Material: Zinc
• Weight: 22 g
• Dimensions: 15 mm (W) × 45 mm (D)
• Packaging: 1 connector per pack
• EAN: 5704174320555

How to use

Strip the cable jacket to the recommended length for RJ45 termination and arrange the conductors according to the chosen wiring standard (T568A or T568B). Insert the prepared cable into the Lanview LVN125417 connector until fully seated, ensuring correct conductor alignment. Complete the mechanical termination according to the connector type (crimping or screwing) and verify continuity and signal integrity with a network tester.

Recommendations

For best results use with appropriately sized Cat6a or similar AWG cables and verify whether your installation requires a shielded connector. Test the terminated connection with a certified network tester before final installation.
