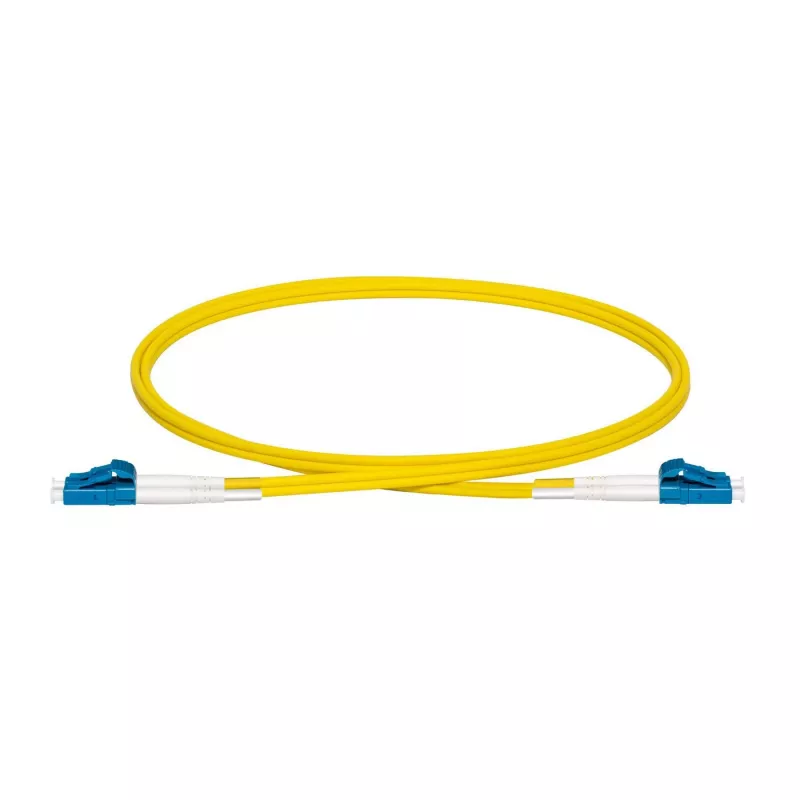

Lanview LVO231410 InfiniBand/skrížený optický kábel 10 m 2x LC žltý

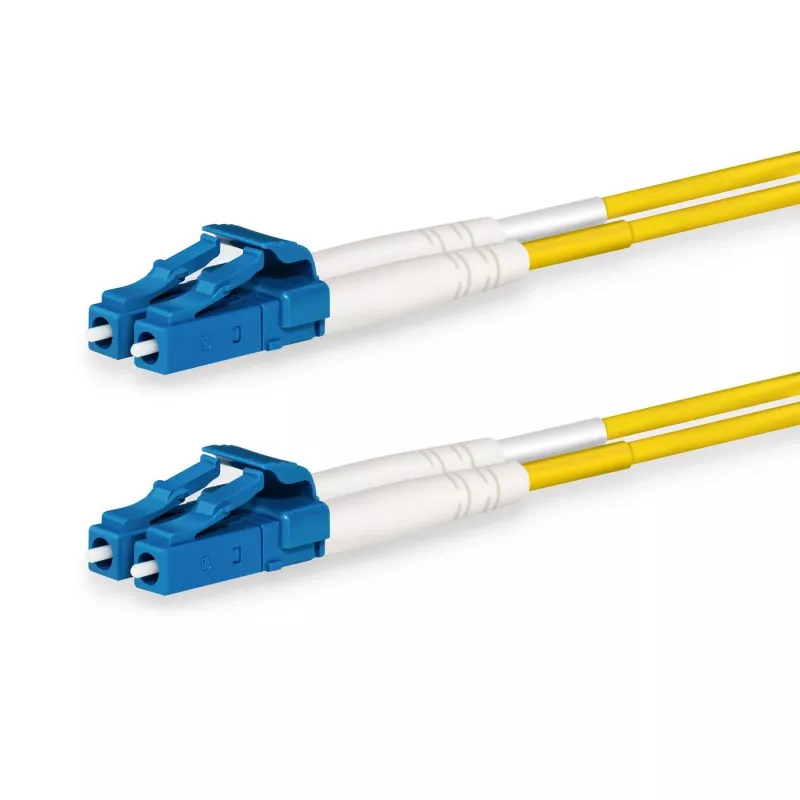

The Lanview LVO231410 is a single mode fibre optic patch cable designed for reliable data transmission in enterprise networks, telecom rooms, server farms and cloud storage networks. This 10 m yellow cable features 2x LC connectors on each end and conforms to OS2 single mode specifications with a 9 µm core for full duplex communication. It supports 1G/10G/40G/100G Ethernet and can carry signals up to 10 km at 1310 nm or up to 40 km at 1550 nm. The cable jacket is LSZH and the assembly meets IEC/EIA‑TIA or Telcordia standards.

Advantages

The Lanview LVO231410 provides standardized OS2 single mode performance with a compact LC connector format, enabling high-density installations and reliable long-distance transmission. Its LSZH jacket reduces smoke and toxic emissions in confined spaces, while the 10 m length and bright yellow colour simplify identification and routing within racks and conduits. The cable supports a wide range of Ethernet speeds, ensuring compatibility with current and future network equipment.

Suitable for

• Enterprise network backbones and horizontal runs
• Telecom rooms and data centre interconnects
• Server farms and cloud storage network links
• 1G/10G/40G/100G Ethernet connections requiring single mode cabling

Key specifications

• Model: Lanview LVO231410
• Type: Single mode (OS2), 9 µm core
• Connectors: 2x LC to 2x LC (both ends)
• Length: 10 m
• Colour: Yellow
• Jacket: LSZH
• Weight: 0.112 kg
• Transmission distance: up to 10 km @ 1310 nm; up to 40 km @ 1550 nm
• Compatible standards: IEC, EIA‑TIA or Telcordia

How to use

Inspect connectors and cable for damage before installation. Route the 10 m LC‑to‑LC patch cable between compatible LC ports on transceivers, switches or patch panels, avoiding sharp bends and excessive tensile force. Ensure proper cable management in racks or conduits to maintain the minimum bend radius specified by the equipment vendor. Clean LC connector endfaces with appropriate fibre cleaning tools before mating to reduce insertion loss.

Recommendations

Use the Lanview LVO231410 for single mode links where low-loss, long-distance transmission is required. Store and handle the LSZH cable in dry conditions and follow connector cleaning best practices. For distances near the specified limits, verify transceiver and link budgets to ensure adequate margin.
