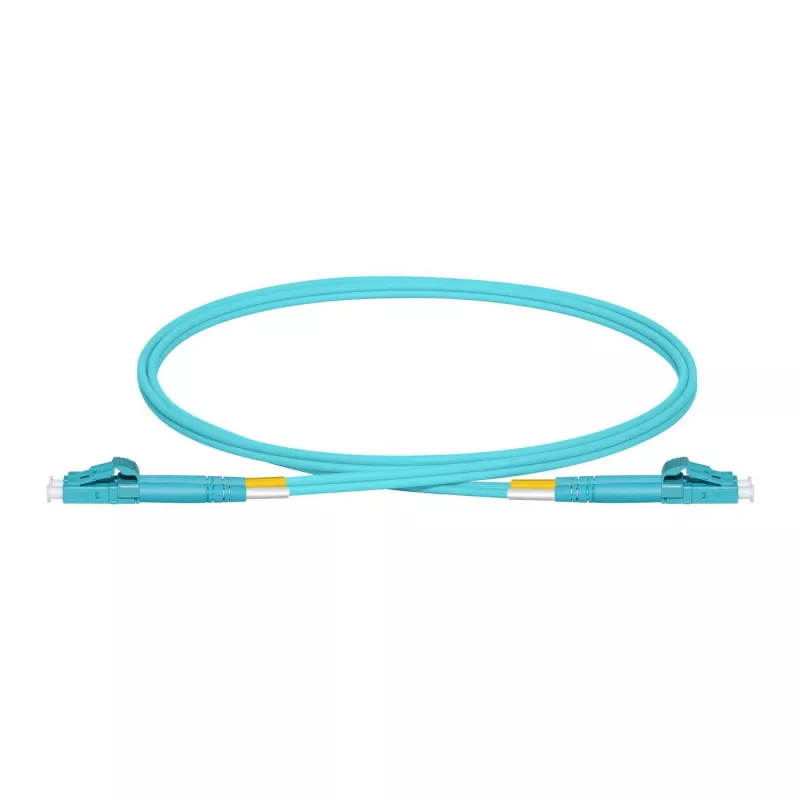

Lanview LVO231469 InfiniBand/skrížený optický kábel 1 m 2x LC akvamarínová

The Lanview LVO231469 is a 1 m OM3 multimode bend-insensitive fibre optic patch cable with 2x LC connectors on each end and a 50/125 µm core-cladding structure. Designed for full-duplex transmission, this aqua-coloured cable supports high-speed links such as 10G SR, 10G LRM and SFP+ modules, and is suitable for 10G/40G/100G Ethernet environments where OM3 multimode fibre is specified. The cable uses LSZH jacket material and conforms to common industry standards for structured cabling.

Advantages

This 50/125 µm OM3 multimode fibre is bend-insensitive, which reduces attenuation when routed through tight bends or when twisted, simplifying installation and lowering maintenance effort. The LC duplex connectors allow compact port density and reliable mating with SFP+ and other multimode transceivers. The LSZH jacket provides lower smoke and halogen emissions for use in enclosed spaces that require improved fire-safety characteristics.

Suitable for

• 10G Ethernet (10GBase-SR) links
• 10G LRM and SFP+ transceiver connections
• 40G/100G short-range multimode interconnects (where OM3 is acceptable)
• Data centre patching and server-to-switch connections

Key specifications

• Manufacturer: Lanview, model LVO231469
• Fibre type: Multimode OM3, 50/125 µm

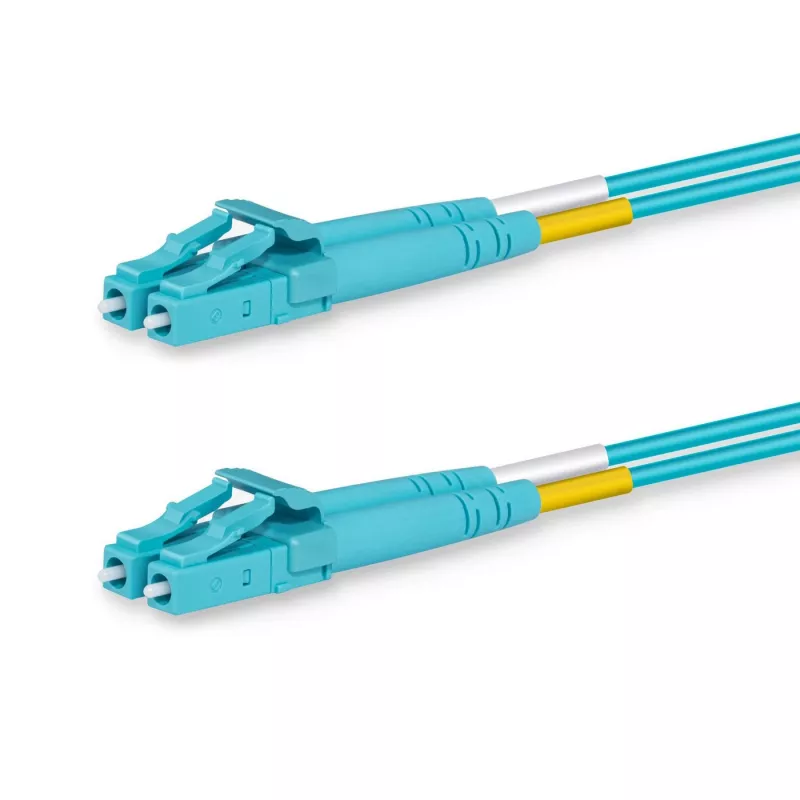

• Connector type: 2x LC to 2x LC (duplex)
• Cable length: 1 m
• Jacket: LSZH
• Colour: Aqua
• Weight: 0.021 kg
• Compatibility: 10G SR, 10G LRM, SFP+ transceivers, 10G/40G/100G multimode links

How to use

Verify that both ends of the network equipment accept LC duplex multimode connectors and that OM3 fibre is appropriate for the intended link length and transceiver type. Carefully remove protective dust caps from the LC connectors prior to insertion, avoid touching the fibre endfaces, and insert the connectors into the corresponding LC ports until they click. Route the cable following bend-radius guidelines and secure it to prevent strain. Test the link with suitable fibre test equipment after installation to confirm attenuation and continuity.

Recommendations

Use this Lanview OM3 1 m LC duplex patch cable for short-range, high-speed multimode connections in data centres and enterprise networks. Maintain manufacturer-recommended bend radius, keep connectors capped when not in use, and use cleaning tools to ensure low loss at the connection points.
