Lanview MO-P-S311X2-3CDL10 sieťový transceiver modul optické vlákno 10000 Mbit/s SFP+ 1310 nm

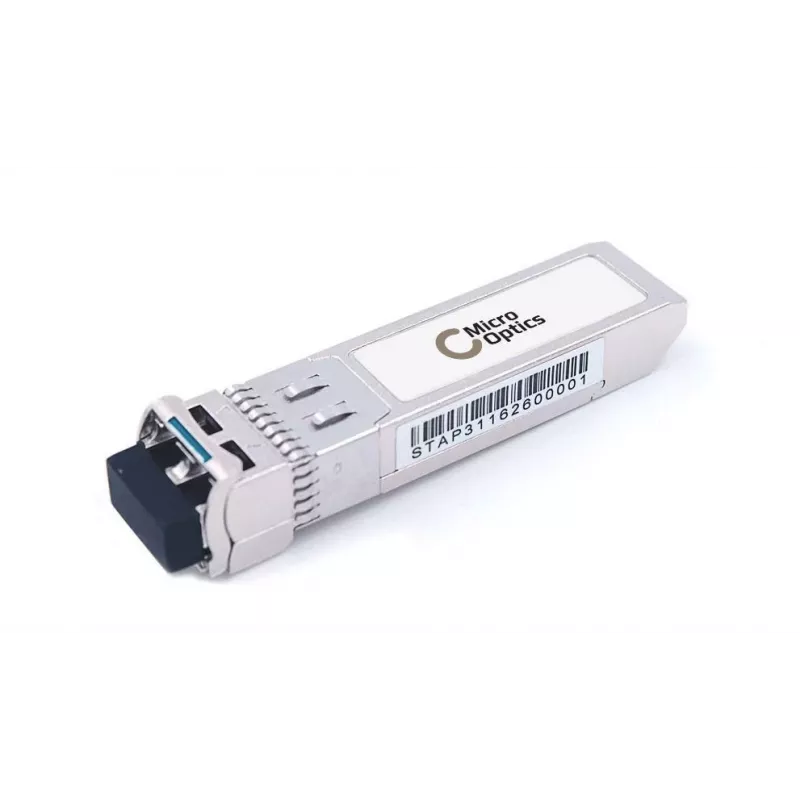

The Lanview MO-P-S311X2-3CDL10 is an SFP+ fiber optic transceiver module by Micro-Optics designed for 10 Gbit/s network links. Compliant with MSA standards, it uses a 1310 nm wavelength and offers a compact form factor (13.4 mm × 56.5 mm × 8.5 mm) for integration into a wide range of networking equipment.

Advantages

This SFP+ transceiver supports a 10000 Mbit/s data rate and follows industry MSA specifications, ensuring interoperability with compatible switches and routers. Its compact dimensions allow installation in dense networking environments, while the 1310 nm wavelength provides reliable single-mode or multimode fiber connectivity depending on the link design.

Suitable for

• 10 Gbit/s uplinks and server connections
• High-speed links between switches and routers
• Fiber backbone segments and data center interconnects
• MSA-compliant network equipment requiring SFP+ modules

Key specifications

• Brand: Micro-Optics
• Model: MO-P-S311X2-3CDL10
• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s
• Wavelength: 1310 nm
• Form factor dimensions: 13.4 mm (W) × 56.5 mm (D) × 8.5 mm (H)
• Compliance: MSA standards

How to use

Insert the Lanview MO-P-S311X2-3CDL10 into an SFP+ socket on a compatible switch, router, or network adapter until it clicks into place. Connect the appropriate fiber optic cable using the matching connector type for the transceiver. Verify link status on the host device and configure port settings (speed, duplex, and any transceiver-specific options) in the device management interface as required.

Recommendations

Handle the transceiver by its housing, avoid touching the fiber connector end-face, and keep protective caps in place when not connected. Ensure compatibility with the host device and verify supported distances and fiber type for links at 1310 nm before deployment.
