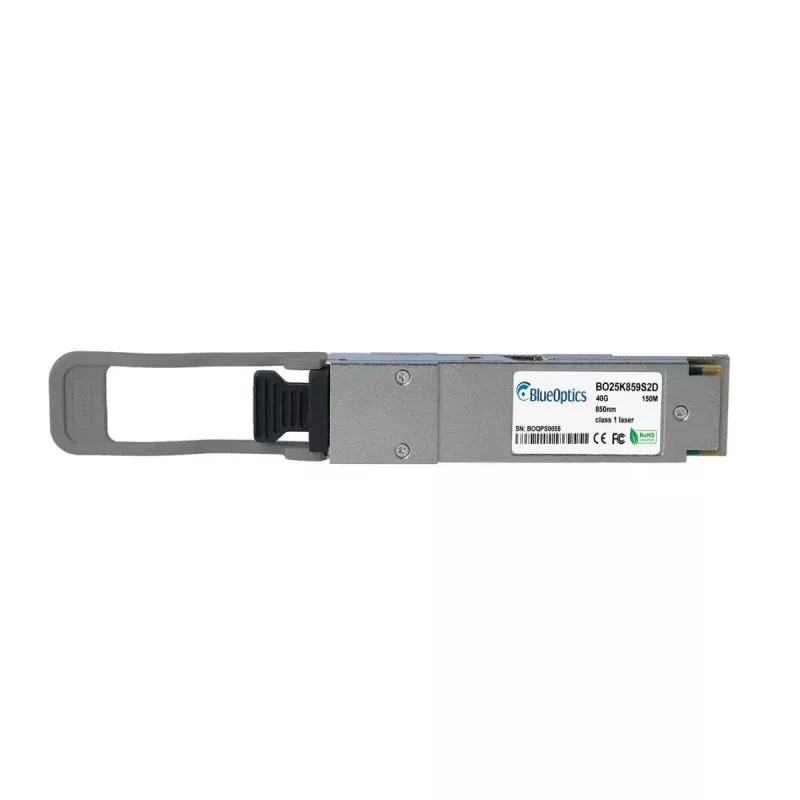

BlueOptics UQSP-40G/M3/SW-BO sieťový transceiver modul 40000 Mbit/s QSFP

The BlueOptics UQSP-40G/M3/SW-BO is a QSFP multimode fiber optic transceiver module designed for 40 Gbit/s data transmission. It operates at a wavelength of 850 nm, uses a QSFP interface and an MPO/MTP connector compatible with MSA standards, and comes in a metal housing for mechanical robustness. The module requires a 3.3 V supply, weighs approximately 20 g and is intended for high-speed short-reach links in network equipment supporting 40GBASE-SR4 protocols.

Advantages

The module delivers up to 40000 Mbit/s throughput over multimode fiber and supports simultaneous transmit and receive channels via MPO/MTP connectivity. Its metal housing provides durability and thermal stability while the low weight simplifies handling and installation. Designed to meet MSA form-factor and signaling conventions, the transceiver is suitable for integration into a variety of network devices that accept QSFP modules.

Suitable for

Key specifications

How to use

Install the QSFP transceiver into a compatible QSFP port on supported network equipment while the device is powered down or following the vendor's hot-swap procedure. Connect the MPO/MTP patch cord to the module and route to the corresponding MPO/MTP connector or patch panel. Ensure the host hardware supports 40GBASE-SR4 and QSFP modules from third-party vendors, and confirm supply voltage and platform compatibility before commissioning. After physical installation, verify link status and perform optical power or continuity checks as part of commissioning.

Recommendations

Use high-quality multimode MPO/MTP patch cords and follow fiber handling best practices to maintain optimal link performance. Confirm compatibility with your switch or router firmware if Digital Diagnostics (DDM/DOM) is required for monitoring. For short-reach 40G links, choose appropriate multimode fiber types and keep connector endfaces clean to reduce insertion loss and guarantee reliable operation.
