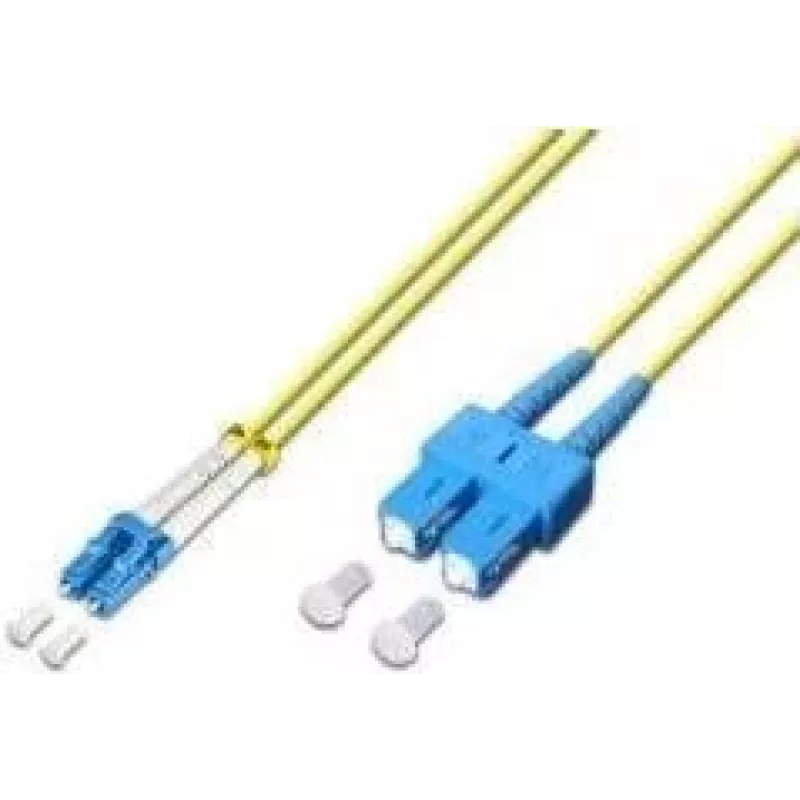

Lightwin LDP-09 LC-SC 5.0 Duplex Single-mode Fiber Optic Patch Cable, LC to SC, 5 m, žltý, LSZH

The Lightwin LDP-09 LC-SC 5.0 is a high-quality duplex single-mode fiber optic patch cable designed for reliable, high-speed data transmission in professional network environments. With LC to SC connectors and a length of 5 meters, this cable is ideal for connecting network equipment such as switches, routers, and patch panels in data centers, telecommunications rooms, and enterprise networks.

Advantages

This patch cable offers low insertion loss (<0.3 dB) and high return loss (>50 dB), ensuring excellent signal integrity and minimal data errors. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, reducing toxic fumes and smoke. The yellow jacket color allows for easy identification of single-mode cables in dense cabling installations.

Suitable for

• Data center cabling infrastructure
• Telecommunications networks
• Enterprise LAN and WAN connections
• Fiber-to-the-desk (FTTD) applications
• High-speed data transmission up to 10 Gbps and beyond

Key specifications

• Cable Type: Duplex Single-mode Fiber Optic Patch Cable (OS2)
• Connector A: LC Duplex
• Connector B: SC Duplex
• Fiber Core/Cladding: 9/125 µm
• Polish Type: UPC (Ultra Physical Contact)
• Cable Length: 5 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Insertion Loss: < 0.3 dB
• Return Loss: > 50 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Cable Diameter: 3.0 mm
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC and SC duplex ports. Pair with Lightwin patch panels and pigtails for a complete structured cabling solution.
