LogiLink M12 CAT6A priemyselný patch kábel, PUR, M12 X-kódovaný na RJ45, 1,5 m

10 Gigabit Ethernet over 1.5 meters of industrial-grade cabling—this M12 X-coded to RJ45 patch cable delivers high-speed connectivity in harsh environments where standard cables fail. The CAT6A S/FTP shielding and rugged PUR jacket ensure signal integrity and mechanical resilience from -40°C to +85°C.

Overview

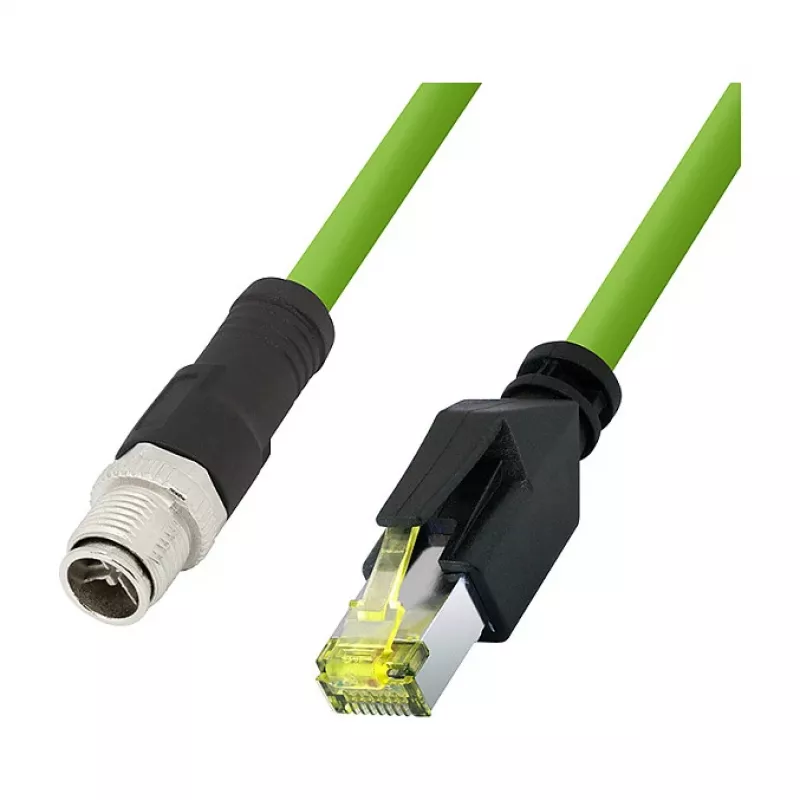

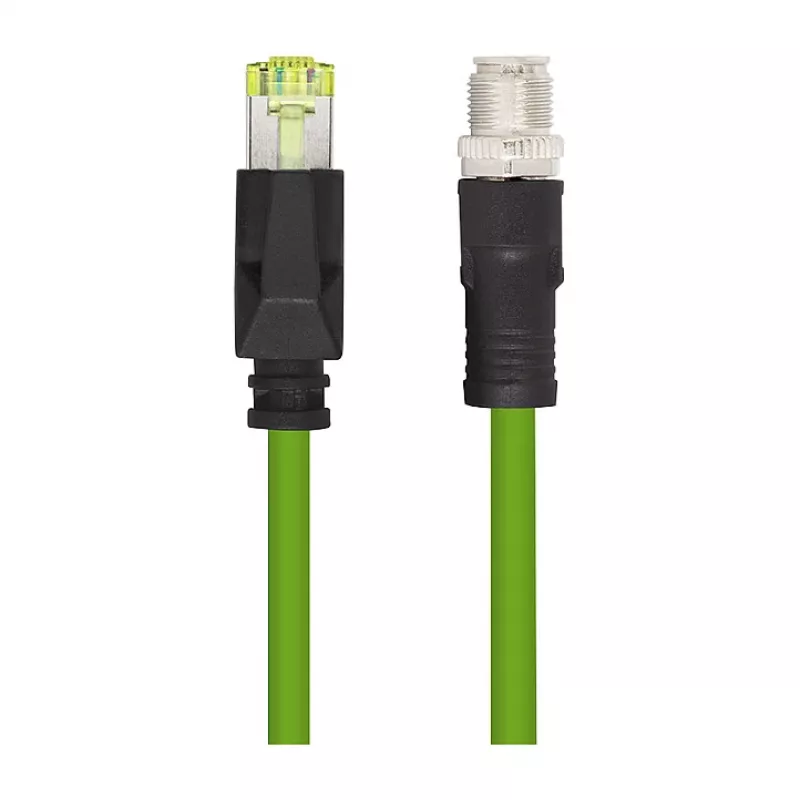

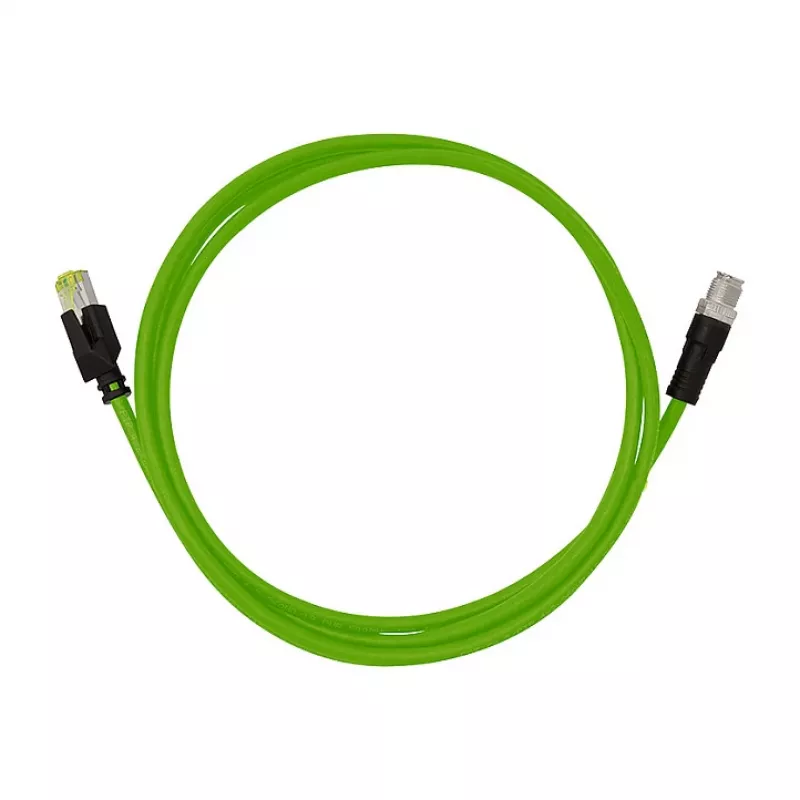

The LogiLink CQM045S is a 1.5-meter industrial Ethernet patch cable featuring an M12 X-coded male connector on one end and an RJ45 male connector on the other. It supports data transfer rates up to 10 Gbps (10GBASE-T) and is fully compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards. The cable's S/FTP (PiMF) shielding provides excellent protection against electromagnetic interference, making it ideal for automation, machine vision, and other demanding applications.

What stands out

• M12 X-coded connector with IP67 rating when mated, ensuring dust-tight and waterproof performance.
• PUR (polyurethane) jacket offers superior resistance to oil, chemicals, abrasion, and UV radiation.
• Supports Power over Ethernet (PoE, PoE+, and 4PPoE up to IEEE 802.3bt) for powering devices over the same cable.
• Halogen-free construction for improved safety in case of fire.
• Wide operating temperature range from -40°C to +85°C for extreme conditions.

Technical details

• Cable type: Industrial Ethernet Patch Cable, CAT6A
• Shielding: S/FTP (PiMF)

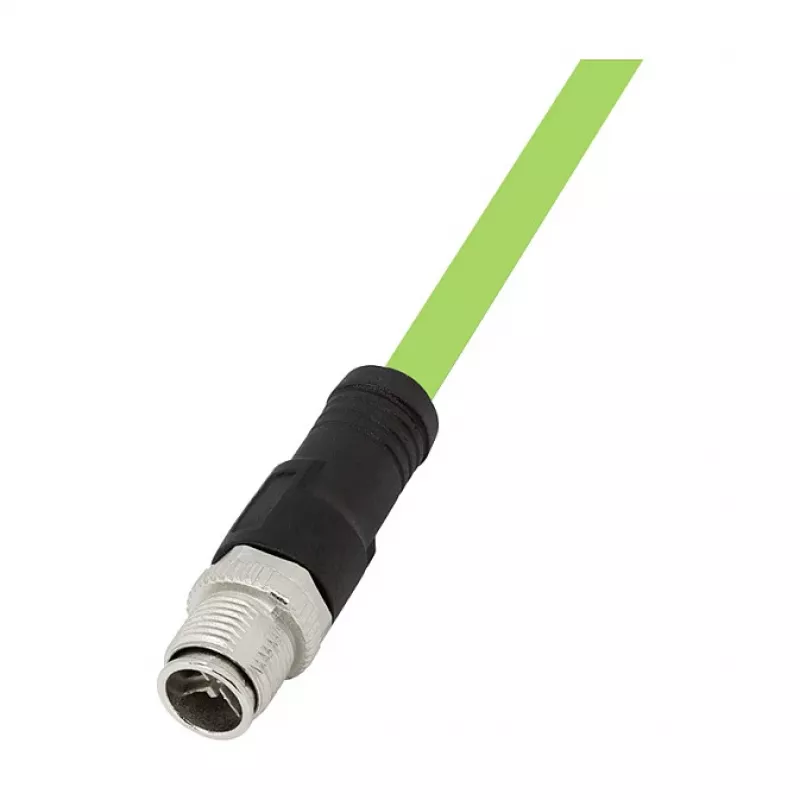

• Connector 1: M12 X-coded male

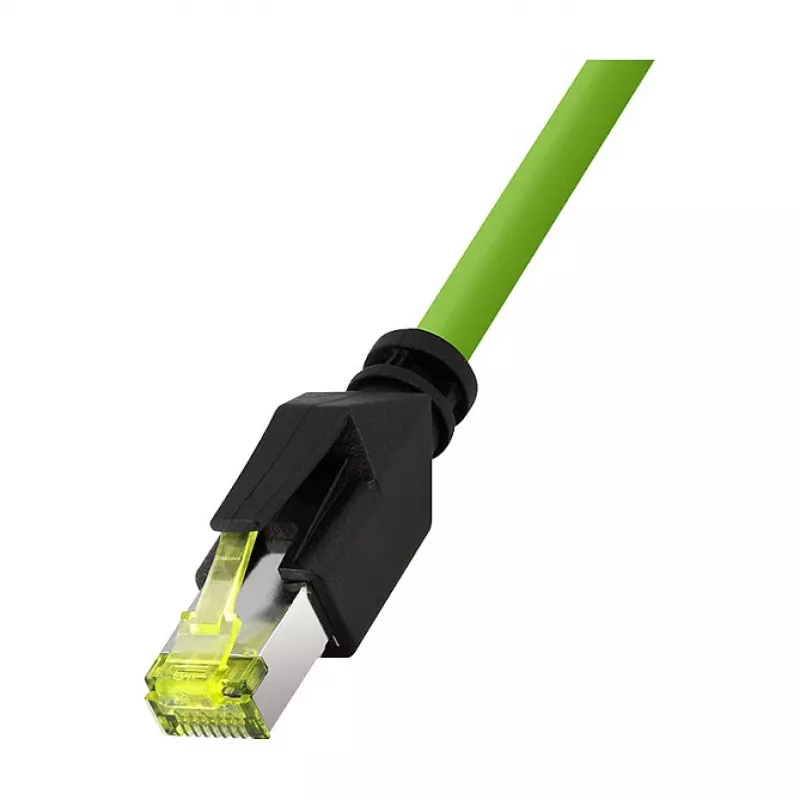

• Connector 2: RJ45 male
• Cable length: 1.5 m
• Jacket material: PUR (Polyurethane)
• Data transfer rate: up to 10 Gbps
• PoE support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• IP rating (M12 connector): IP67 when mated
• Operating temperature: -40°C to +85°C
• Conductor material: Bare copper
• AWG size: 26/7 AWG
• Outer diameter: approx. 6.5 mm
• Cable colour: Green
• Halogen free: Yes
• Standard compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Our verdict

Built for the factory floor, this LogiLink patch cable combines rugged construction with high-speed performance, making it a reliable choice for industrial Ethernet applications.
