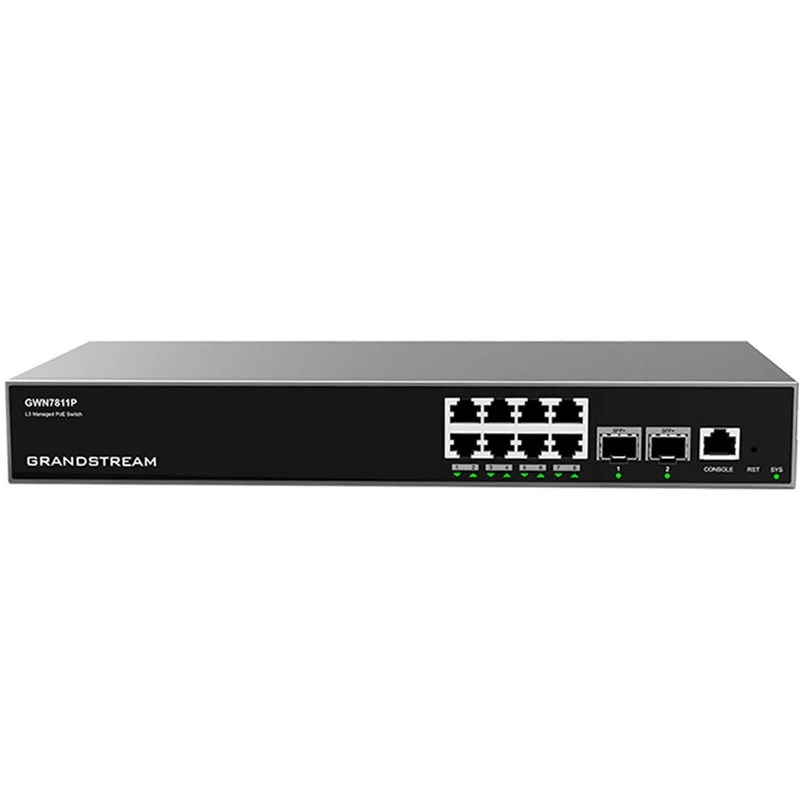

Managed Switch Grandstream Networks GWN7811P

The Grandstream Networks GWN7811P is a managed Layer 3 Gigabit Ethernet switch with 8 RJ-45 Gigabit ports and integrated Power over Ethernet (PoE). It provides a switching capacity of 56 Gbit/s and a MAC address table of 16,000 entries, supporting multiple IEEE networking standards to deliver reliable connectivity and centralized management for business networks.

Advantages

The GWN7811P combines Layer 3 management, PoE support and Gigabit ports in a compact 8-port switch, enabling simplified network deployment and centralized control. It supports 10G uplinks for higher throughput and adheres to a broad set of IEEE standards for compatibility and security. Built-in management options include cloud-based GWN.Cloud, on-premise GWN Manager and an embedded controller in the device web UI, allowing flexible provisioning and real-time monitoring.

Suitable for

• Small and medium business LANs requiring managed switching and PoE for IP phones, cameras and APs
• Edge aggregation with 10G uplinks to core switches or servers
• Environments needing centralized monitoring and device provisioning

Key specifications

• Switch type: Managed Layer 3
• Ports: 8 × Gigabit Ethernet (10/100/1000) RJ-45
• PoE: Yes (802.3af / 802.3at support)
• Switching capacity: 56 Gbit/s
• MAC address table: 16,000 entries
• 10G support: Yes (uplink)
• Networking standards: IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3ad, 802.3af, 802.3at, 802.1x, 802.1w, 802.1s, 802.1p, 802.1Q, 802.1D
• Colour: Grey
• Weight: 2.17 kg

How to use

Install the GWN7811P in a rack or on a flat surface and connect devices to the Gigabit RJ-45 ports. Use the PoE ports to power compatible IP phones, wireless access points or cameras. For management and provisioning, access the device web UI to use the embedded controller, or register the switch with GWN.Cloud for cloud management, or deploy GWN Manager on-premise for local centralized control. Configure VLANs, routing, QoS and link aggregation as required for your network design.

Recommendations

For optimal performance, connect high-bandwidth devices to uplink ports supporting 10G and configure link aggregation for redundancy. Keep firmware up to date and choose the management option (GWN.Cloud, GWN Manager or embedded controller) that best fits your security and operational requirements.
