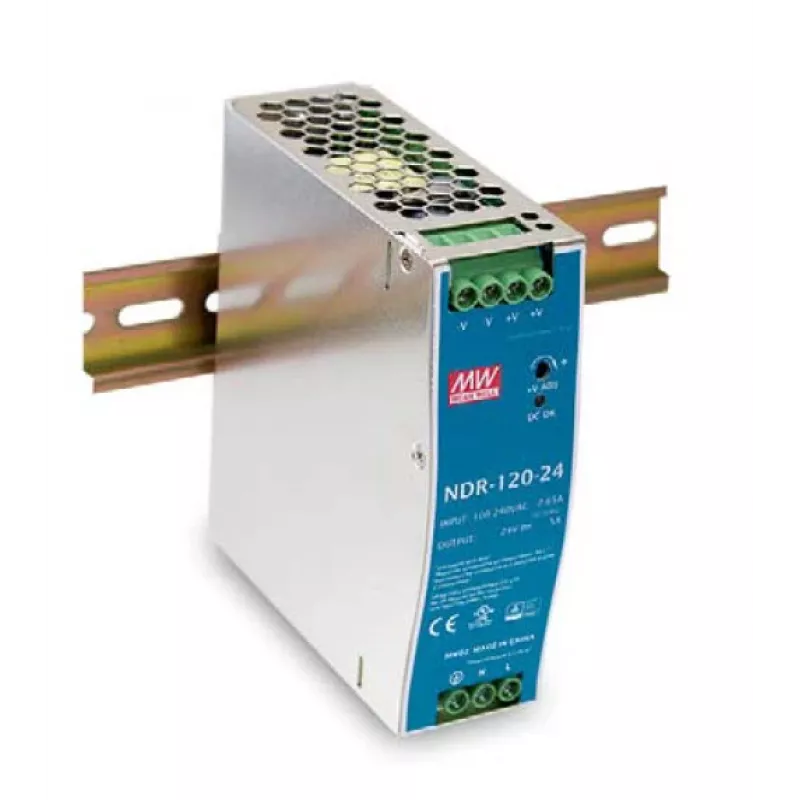

Mean Well NDR-120-24 120W 24V 5A DIN-lištový napájací zdroj

The Mean Well NDR-120-24 is a high-performance 120W single-output industrial power supply designed for DIN rail mounting. With a compact metallic case and a wide input voltage range of 90-264 VAC, it delivers a stable 24 VDC output at 5A. This model features high efficiency (89%), free air convection cooling, and comprehensive protections including short circuit, overload, over voltage, and over temperature. It is ideal for industrial control systems, automation equipment, and telecommunication applications.

Advantages

High reliability and long service life with 3-year warranty. Compact size saves space in control cabinets. Wide input range ensures global compatibility. Low ripple and noise for sensitive loads.

Suitable for

• Industrial automation and control systems
• Telecommunication equipment
• Building automation
• LED lighting and signage
• Test and measurement instruments

Key specifications

• Input Voltage: 90-264 VAC / 127-370 VDC
• Output Voltage: 24 VDC
• Output Current: 5 A
• Rated Power: 120 W
• Efficiency: 89%
• Mounting: DIN Rail TS-35/7.5 or TS-35/15
• Protections: Short Circuit, Overload, Over Voltage, Over Temperature
• Operating Temperature: -20 to +70 °C
• Cooling: Free Air Convection
• Case Material: Metal
• LED Indicator: Power On
• Safety Standards: UL 60950-1, TUV EN 60950-1
• EMC Standards: EN 55022, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2,3,4,5,6,8,11
• Dimensions (WxHxD): 40 x 126 x 114 mm
• Weight: 0.5 kg

Recommendations

For optimal performance, use with appropriate DIN rail accessories and ensure adequate ventilation. This power supply is a reliable choice for demanding industrial environments.
