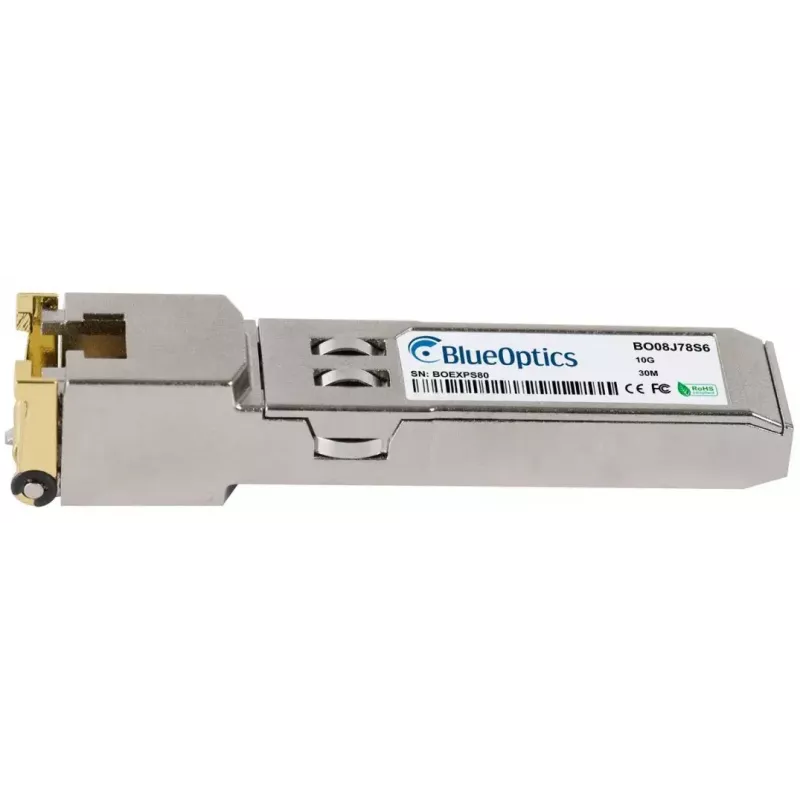

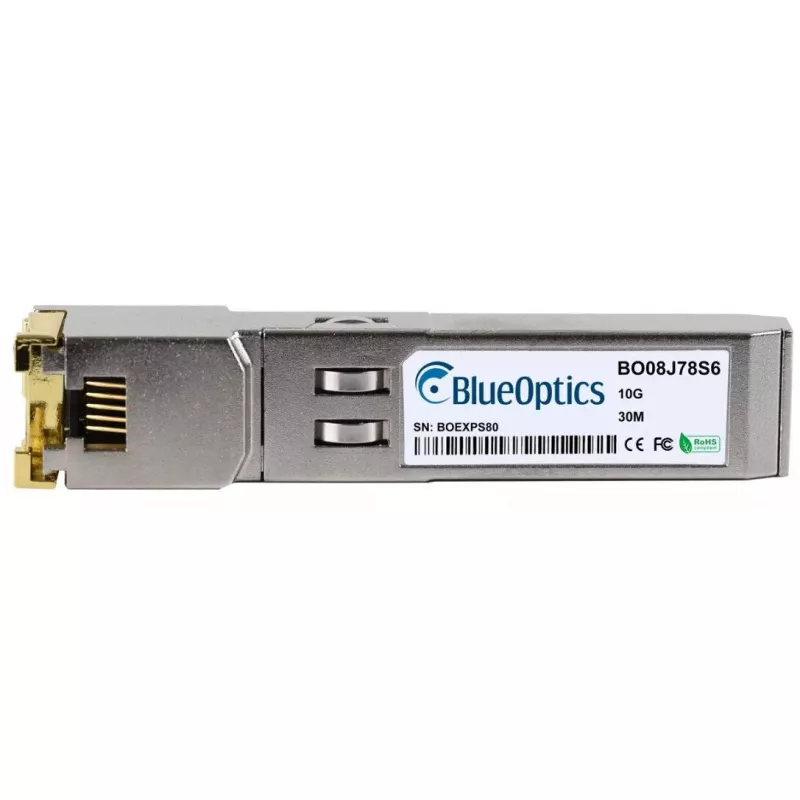

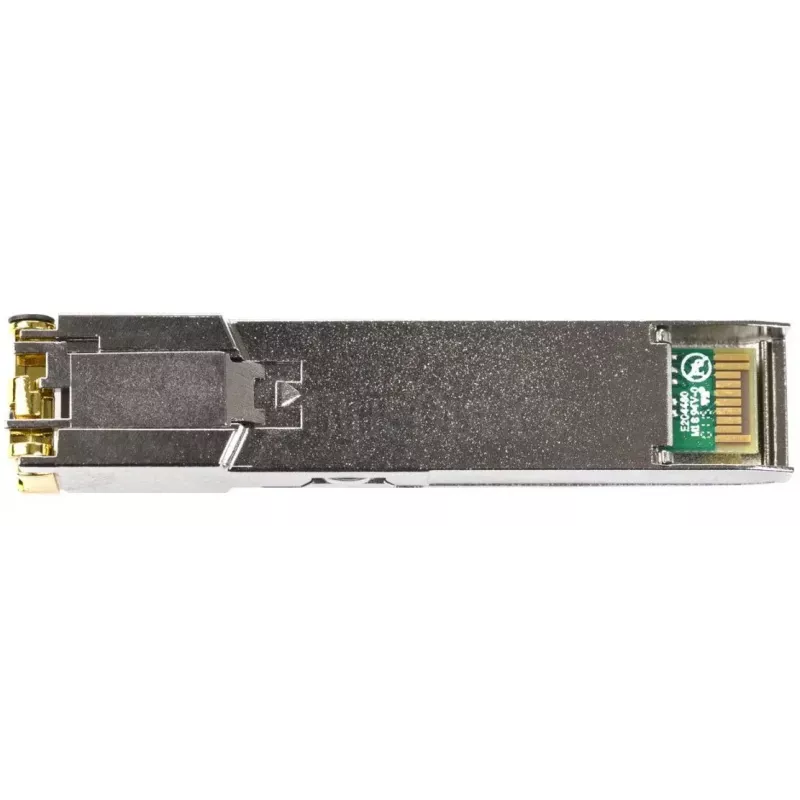

Medený SFP+ transceiver BlueOptics UF-RJ45-10G 10000 Mbit/s

The BlueOptics UF-RJ45-10G is a copper SFP+ transceiver module engineered for short-reach 10 Gigabit Ethernet connections. It provides a standard SFP+ interface for straightforward insertion into compatible network switches, routers or server NICs, and supports data transfer rates up to 10,000 Mbit/s. The module uses an RJ45 copper port to enable connectivity over Cat6a/Cat7 cabling, making it suitable where fiber is not required or where existing copper infrastructure is preferred.

Advantages

The BlueOptics UF-RJ45-10G offers a compact SFP+ form factor that saves slot space while enabling 10 Gbit/s copper connectivity. Its RJ45 interface simplifies installation into existing copper cabling systems and reduces the need for fiber transceivers or media converters. The module is designed for interoperability with standard SFP+ ports and supports high-speed data throughput for demanding network segments.

Suitable for

• 10 Gigabit Ethernet links in data centers and wiring closets
• Server-to-switch or switch-to-switch uplinks over copper cabling
• Upgrading networks that retain Cat6a/Cat7 copper infrastructure
• Environments where short-reach, cost-effective connections are needed

Key specifications

• Interface type: SFP+

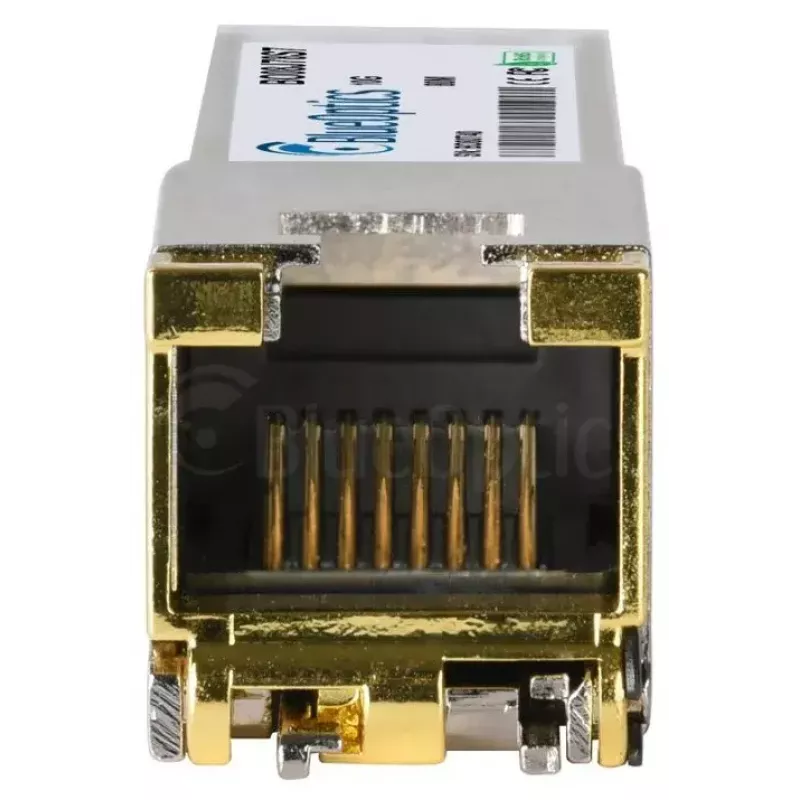

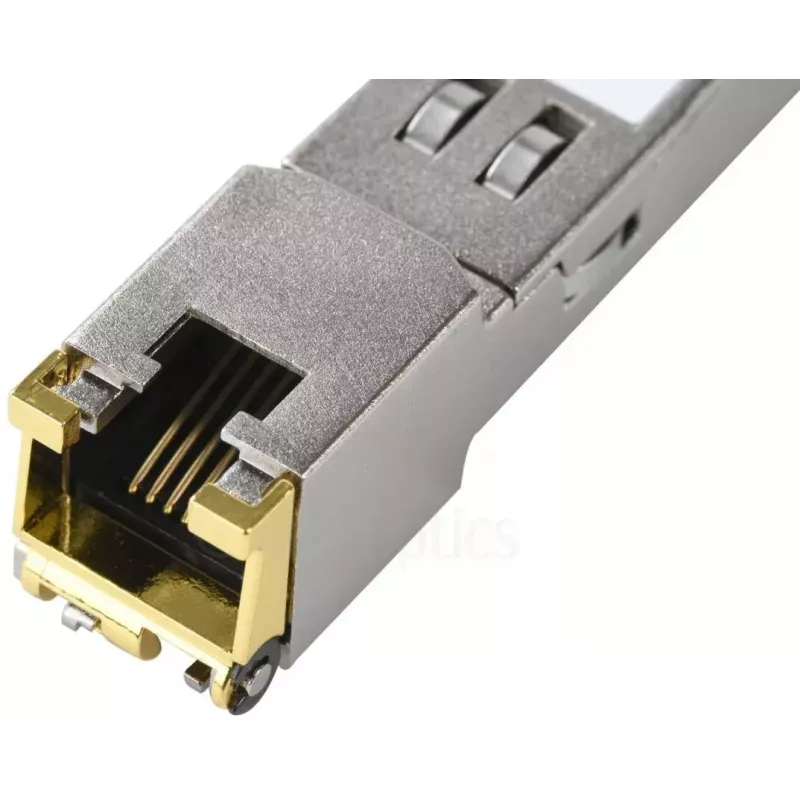

• Connector: RJ45 (copper)
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Typical use: Short-reach 10 Gigabit Ethernet over copper
• Form factor: SFP+ hot-pluggable transceiver

How to use

Ensure the target switch or network device supports SFP+ copper modules before installation. Power down the device if recommended by the equipment manufacturer, remove dust caps from the module and the port, and insert the transceiver into an available SFP+ slot until it latches. Connect a suitable Cat6a or Cat7 RJ45 patch cable to the module’s copper port and to the remote device. Verify link status and configure network settings as required by your infrastructure.

Recommendations

Use shielded, high-quality Cat6a or Cat7 cables for reliable 10 Gbit/s performance and keep cable lengths within the specification for 10 Gigabit Ethernet over copper. Check device firmware and compatibility lists for validated support of third-party SFP+ copper modules to ensure stable operation.
