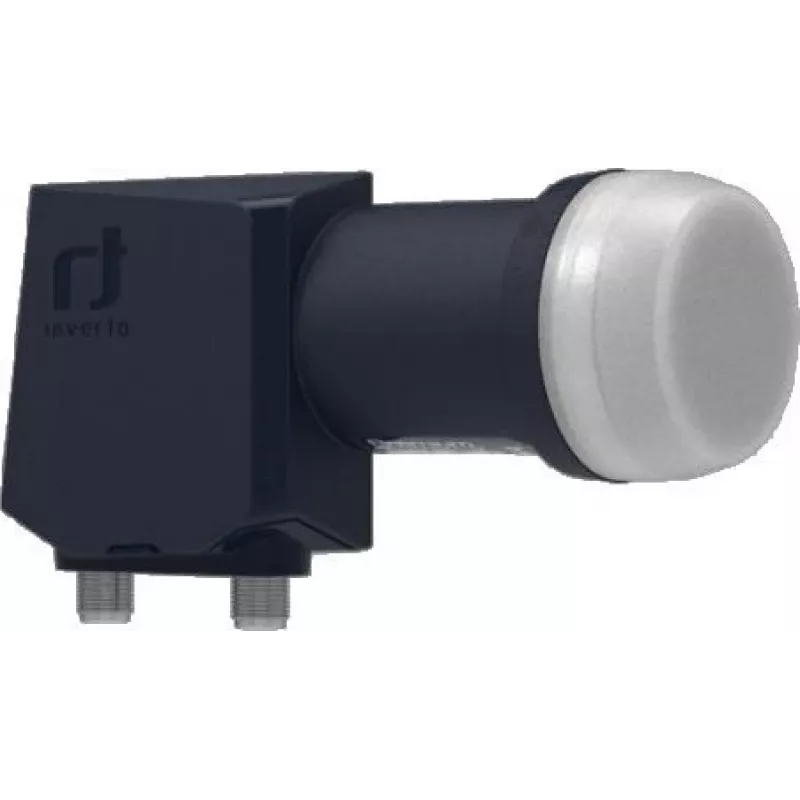

MEGASAT Inverto IDLP-TWL413-PREMU-OPN Twin LNB 40mm 0.2 dB Premium

The MEGASAT Inverto IDLP-TWL413-PREMU-OPN is a premium Twin Universal LNB designed for satellite reception. With a 40mm feedhorn and ultra-low 0.2 dB noise figure, it ensures excellent signal quality for two independent receivers.

Advantages

High conversion gain of 55 dB and low phase noise PLL technology provide stable reception even in challenging conditions. The twin output allows connection of two satellite receivers or a single receiver with twin tuner.

Suitable for

• Satellite TV systems requiring two outputs
• Installations with 40mm feedhorn compatibility
• DVB-S2 digital satellite reception

Key specifications

• LNB Type: Twin Universal
• Noise Figure: 0.2 dB (typical)
• Feedhorn Diameter: 40 mm
• Number of Outputs: 2
• Output Connector: F-Type
• Input Frequency: 10.7 - 12.75 GHz
• Output Frequency: 950 - 2150 MHz
• LO Frequency: 9.75 / 10.6 GHz
• Conversion Gain: 55 dB (min)
• Cross Polarization Isolation: 22 dB (min)
• Control: 13/18V, 0/22kHz
• Current Consumption: 120 mA (max)
• Operating Temperature: -30°C to +60°C
• Impedance: 75 Ohm

Recommendations

Ideal for professional satellite installations requiring reliable performance and low noise. Compatible with most standard satellite dishes with 40mm LNB holder.
