METZ CONNECT 130B20D11200KE Keystone 1 port zapustená sieťová zásuvka čistá biela

The METZ CONNECT 130B20D11200KE is a high-quality, flush-mount network data outlet designed for professional structured cabling. Featuring a single RJ45 keystone port with Cat.6 shielded performance, this outlet ensures reliable data transmission for demanding network environments. The pure white (RAL 9010) finish blends seamlessly with modern interiors, making it ideal for residential and commercial installations.

Advantages

This outlet offers superior shielding (FTP/STP) to minimize electromagnetic interference, ensuring stable connections. The integrated dust protection flaps keep the port clean when not in use. LSA+ insulation displacement terminals enable quick and tool-free termination, saving installation time. PoE+ compatibility supports power over Ethernet for devices like IP cameras and access points.

Suitable for

• Office network outlets
• Home theater and smart home installations
• Data center patching
• Industrial Ethernet applications

Key specifications

• Product Type: Network Data Outlet / Connection Box
• Number of Ports: 1
• Connector Type: RJ45
• Category: Cat.6
• Shielding: Shielded (FTP/STP)
• Mounting Type: Flush-mount (Unterputz)
• Color: Pure White (RAL 9010)
• Connection Technology: LSA+ Insulation Displacement Terminals
• PoE Support: PoE+ (IEEE 802.3at) compatible
• Cable Entry: 8 directions
• Design Features: Central plate with integrated dust protection flaps
• Wiring Scheme: T568A / T568B
• Module Type: E-DAT C6 module
• Housing Material: PC/ABS
• Standard Compliance: ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.2
• Operating Temperature: -40 to +70 °C
• IP Rating: IP20

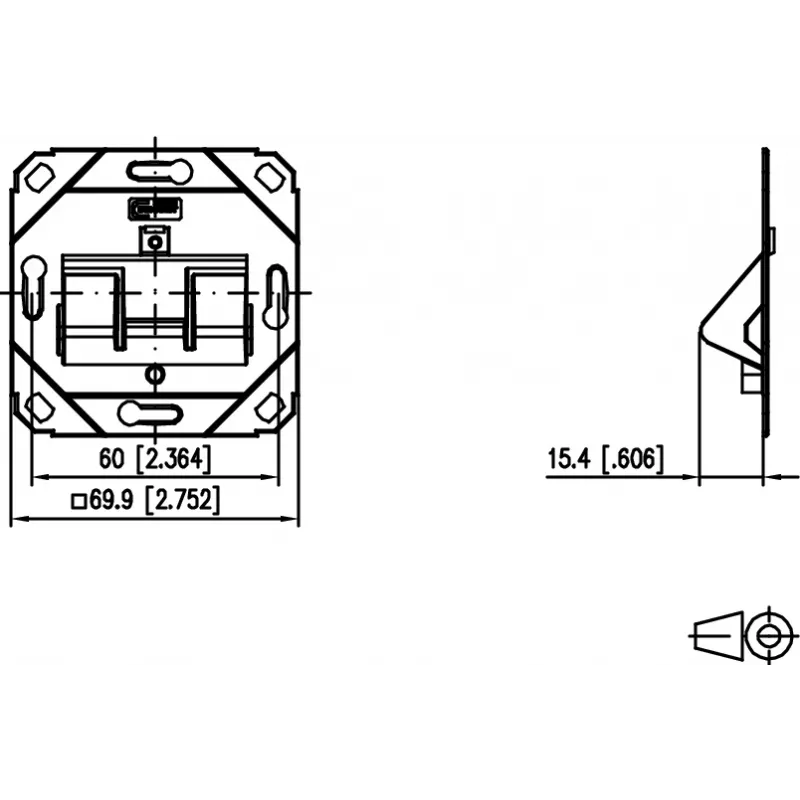

• Cover Frame Dimensions: 80 x 80 mm
• Central Plate Dimensions: 50 x 50 mm

Recommendations

For optimal performance, use with Cat.6 or higher shielded patch cables. Ensure proper grounding of the outlet to maintain shielding effectiveness. This outlet is compatible with standard 55x55 mm flush-mount boxes.
