METZ CONNECT 151P7JOJA20E LC-S/LC-S APC OS2 jednovidové optické patch kábel, 2 m, biela, LSZH

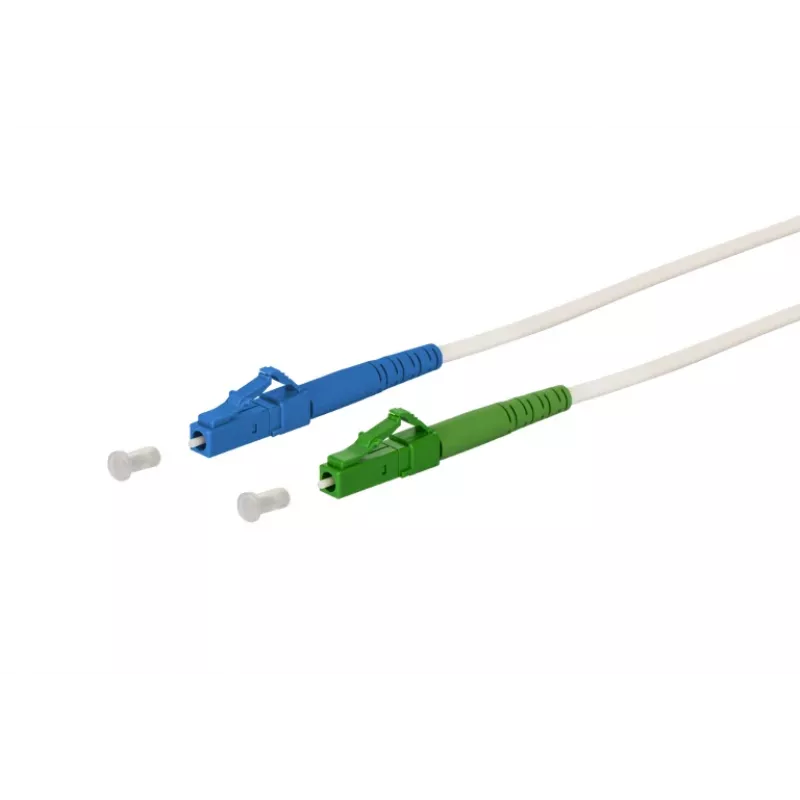

Single-mode OS2 fibre optic patch cable with LC simplex connectors on both ends, featuring APC polishing for low back reflection. The 2-metre white LSZH jacket ensures low smoke and halogen-free performance in fire conditions.

Advantages

APC connectors provide return loss of at least 60 dB, reducing signal interference in high-speed networks. The LSZH jacket emits low smoke and no halogens, making it suitable for enclosed spaces. Attenuation is ≤0.35 dB/km at 1310 nm and ≤0.25 dB/km at 1550 nm.

Suitable for

• Telecom and data centre single-mode links
• FTTH and backbone cabling
• Environments requiring halogen-free cabling

Key specifications

• Fibre type: Single-mode OS2 (9/125 µm)
• Connectors: LC simplex to LC simplex, APC polish
• Length: 2 m
• Jacket: White LSZH, 2.0 mm diameter
• Insertion loss: ≤0.2 dB
• Return loss: ≥60 dB
• Bend radius: 10 mm minimum
• Operating temperature: -20°C to +70°C

Recommendations

For reliable single-mode connections, ensure both ends are cleaned before mating and avoid exceeding the minimum bend radius during installation.
