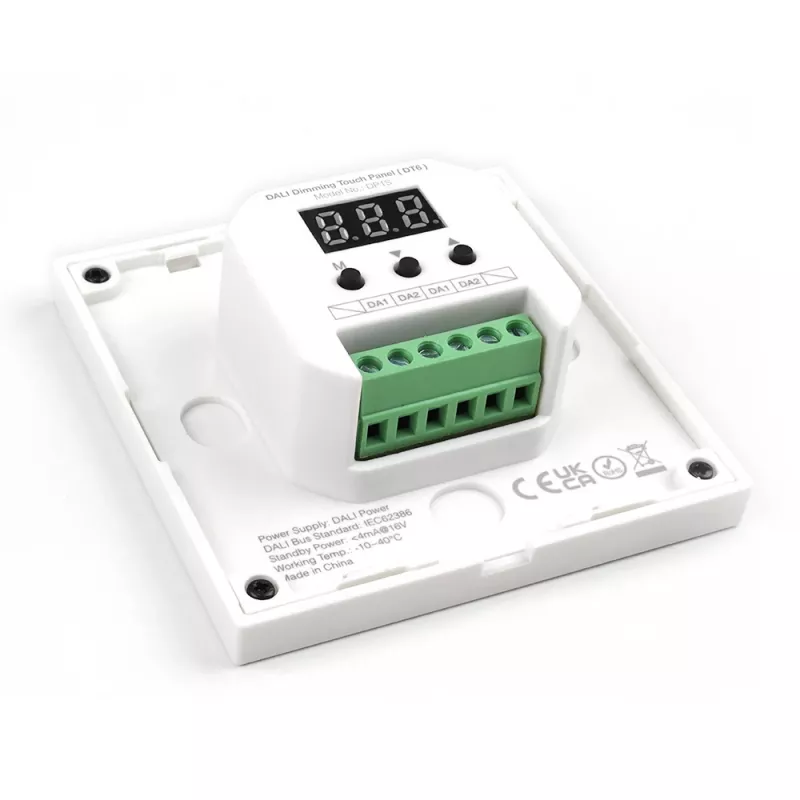

Miboxer LED Smart DALI dimming dotykový panel DT6 (DP1S)

The Miboxer DP1S stands out as a DALI master touch panel that combines sleek tempered glass design with direct control of DT6 LED drivers, eliminating the need for a separate DALI controller. Its capacitive touch surface and four scene recall buttons make lighting adjustments immediate and intuitive.

Highlights

• Direct DALI bus output supports up to 64 DT6 LED drivers
• Capacitive touch control with on/off, dimming, and 4 scene recall
• Wide dimming range from 0.1% to 100% for precise light levels
• Tempered glass panel in black, designed for standard 86-type wall boxes
• Built-in DALI bus power supply (250mA) simplifies installation

In daily use

Wall-mounted in a standard junction box, the DP1S provides a clean, modern interface for managing DALI lighting. The LED backlight ensures visibility in dark environments, while the touch panel responds instantly to adjust brightness or switch scenes. With support for up to 64 DALI devices and a bus cable length of up to 300 meters, it suits both small rooms and larger installations. The panel operates from AC 100-240V and is protected against overload and short circuit.

Full specifications

• Product type: DALI Master Touch Panel
• Control protocol: DALI (Digital Addressable Lighting Interface)
• DALI device type support: DT6 (LED Drivers)
• Control method: Capacitive Touch
• Functions: On/Off, Dimming, 4 Scene Recall
• Dimming range: 0.1% - 100%
• Power supply: AC 100-240V, 50/60Hz
• Output signal: DALI Bus
• DALI bus power output: 250mA (Max)
• Max DALI devices: 64
• Installation: Wall-mounted (Standard 86-type junction box)
• Panel material: Tempered Glass
• Operating temperature: -20°C to 60°C
• DALI bus cable length: Up to 300m
• Protection features: Overload, Short Circuit
• Colour: Black
• Indicator: LED Backlight

Final note

The DP1S is a focused DALI touch panel for DT6 LED drivers, offering reliable dimming and scene control in a stylish glass finish.
