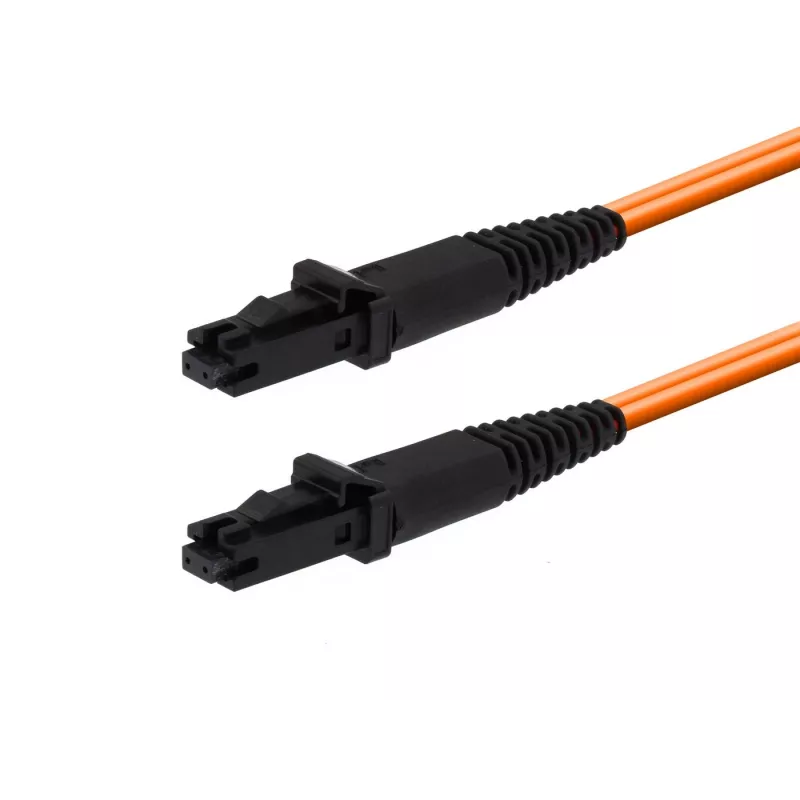

MICROCONNECT MTRJ/UPC na MTRJ/UPC 0,5m OM1 duplexné optické patch kábel, oranžový

For multimode fiber links where space is tight and every connection counts, this 0.5-meter OM1 patch cable pairs MTRJ connectors on both ends with UPC polishing to keep insertion loss below 0.3 dB. The 62.5/125 µm core supports legacy 100BASE-FX and 1000BASE-SX runs at 850 nm, while the duplex PVC jacket stands up to daily handling in patch panels and wall outlets.

Highlights

• MTRJ/UPC to MTRJ/UPC connectors – compact, keyed duplex interface
• OM1 multimode fiber, 62.5/125 µm core/cladding
• 0.5 m length – ideal for short interconnects in racks or enclosures
• Orange PVC jacket, duplex zip-cord construction
• Insertion loss < 0.3 dB, return loss > 30 dB
• Operating temperature -20°C to 70°C

In daily use

Patch panels, media converters, and legacy fiber switches all benefit from the MTRJ form factor: one connector carries both transmit and receive fibers, halving the number of ports you need to manage. The UPC polish on each ferrule ensures a stable physical contact that resists back-reflection, while the orange jacket makes the cable easy to identify as OM1 in a crowded tray. At 0.5 m, it is cut for direct device-to-panel links without excess slack.

Full specifications

• Fiber type: Multimode OM1
• Core/cladding diameter: 62.5/125 µm
• Connector A: MTRJ/UPC
• Connector B: MTRJ/UPC
• Cable length: 0.5 m
• Jacket material: PVC
• Jacket colour: Orange
• Cable structure: Duplex
• Insertion loss: < 0.3 dB
• Return loss: > 30 dB
• Attenuation at 850 nm: 3.5 dB/km
• Attenuation at 1300 nm: 1.5 dB/km
• Bandwidth at 850 nm: 200 MHz·km
• Bandwidth at 1300 nm: 500 MHz·km
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Compliance: RoHS, CE

Final note

When you need a short, reliable OM1 link with the convenience of MTRJ connectors, this cable delivers consistent performance without taking up extra rack space.
