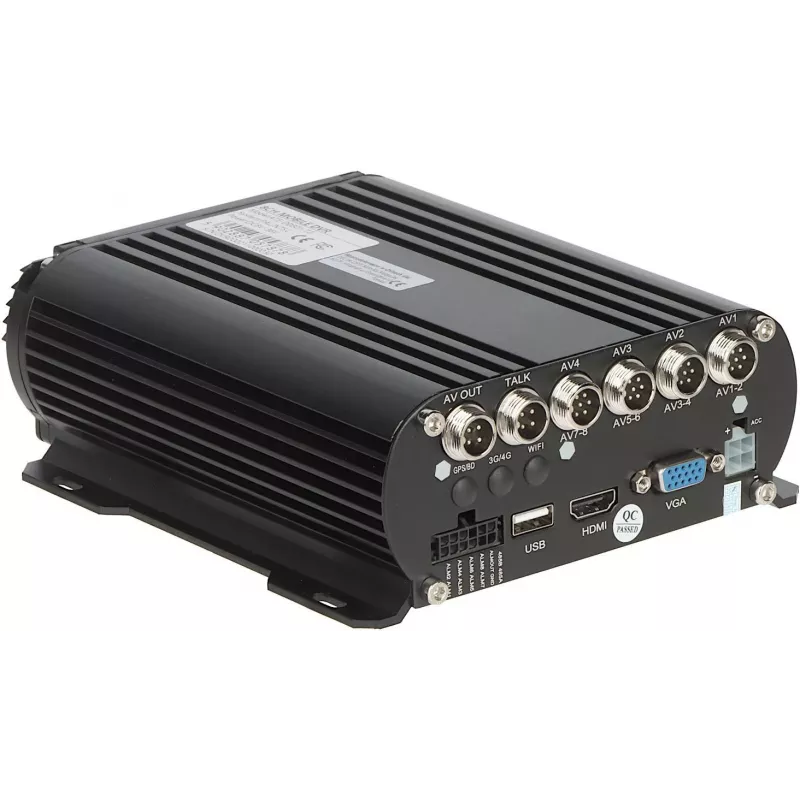

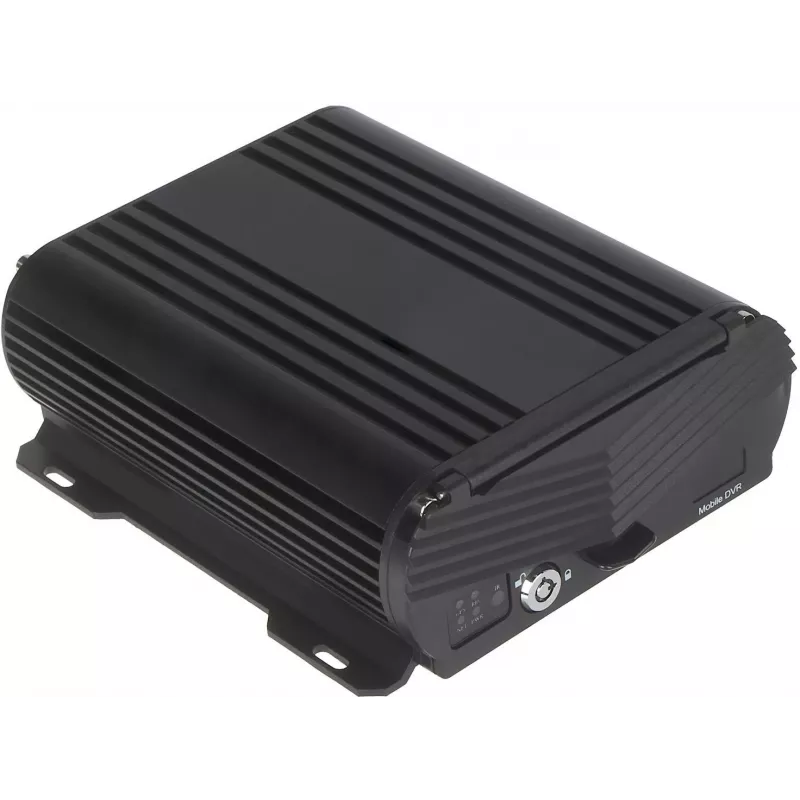

Mobilný DVR AHD ATE-D0801-T2 8-kanálový AUTONE

The AUTONE ATE-D0801-T2 is a professional 8-channel mobile DVR recorder designed for vehicle surveillance. It supports AHD, TVI, CVI, and CVBS video inputs with auto-detection, recording up to 1080P resolution. Built with H.264 compression, it offers efficient storage and reliable performance in harsh environments.

Advantages

This mobile DVR features 8 video inputs, 8 audio inputs, and 8 alarm inputs, making it ideal for comprehensive fleet monitoring. It includes a built-in GPS module for real-time location tracking and a 3-axis G-sensor for impact detection. The device supports up to 2TB via a 2.5" SATA HDD/SSD and an additional SD card slot up to 128GB, ensuring ample storage. With a wide power input range of DC 8V-36V and an operating temperature range of -20°C to +70°C, it is built for rugged use.

Suitable for

• Fleet management and vehicle surveillance
• Public transportation (buses, trains)
• Logistics and delivery trucks
• Emergency vehicles

Key specifications

• Video Input: 8 channels AHD/TVI/CVI/CVBS
• Max Recording Resolution: 8x 1080P@15fps
• Compression: H.264
• Storage: 1x 2.5" SATA HDD/SSD up to 2TB + 1x SD card up to 128GB
• Power Input: DC 8V-36V
• Video Output: 1x VGA, 1x CVBS
• Audio: 8x In, 1x Out
• Alarm: 8x In, 2x Out
• Communication: 1x RS232, 1x RS485, 2x USB 2.0
• Network: 1x RJ45 10/100Mbps Ethernet
• GPS: Built-in
• G-Sensor: Built-in 3-axis
• OS: Embedded Linux
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, use a certified 2.5" SATA HDD or SSD with a capacity of up to 2TB. Ensure the power supply is stable within the DC 8V-36V range. Optional 3G/4G or Wi-Fi modules can be added for remote connectivity.
