Modul optického transceivera BlueOptics 10-2619-01-BO 10000 Mbit/s SFP+

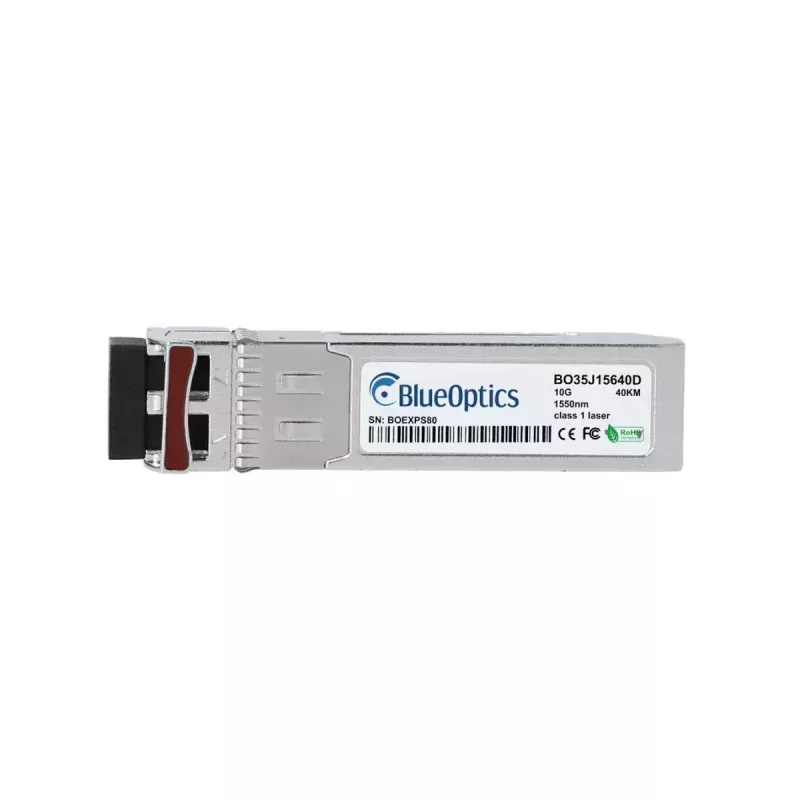

The BlueOptics 10-2619-01-BO is a fiber optic SFP+ transceiver module designed for 10 Gbit/s data links. Housed in a compact SFP+ form factor with a silver finish and a weight of approximately 20 g, this module provides a standardized optical interface for network equipment. It is compliant with CE, FCC and RoHS directives and has a reported mean time between failures (MTBF) of 1,000,000 hours, making it suitable for integration in switches, routers and media converters that accept SFP+ ports.

Advantages

The module supports a maximum data transfer rate of 10000 Mbit/s and fits SFP+ ports, allowing straightforward plug-and-play replacement or expansion of existing 10 Gbit/s links. Its small SFP+ form factor conserves chassis space while offering the optical connectivity required for high-speed uplinks or server connections. Compliance with common regulatory standards ensures compatibility with professional network infrastructures.

Suitable for

• 10 Gbit/s uplinks between switches and data center equipment
• Server-to-switch connections in rack environments
• Media converters and transponder modules with SFP+ slots
• Network upgrades where compact optical modules are needed

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s
• Form factor: SFP+ optical transceiver
• Housing colour: silver
• Weight: approx. 0.02 kg
• Mean time between failures (MTBF): 1,000,000 hours
• Regulatory compliance: CE, FCC, RoHS

How to use

Install the BlueOptics SFP+ transceiver by inserting it into a compatible SFP+ port until it clicks into place. Connect the appropriate fiber optic cable to the module’s optical interface, ensuring correct connector type and polarity. Configure the host device network settings as required for a 10 Gbit/s link and verify link status through the equipment management interface. When removing the module, follow the host device procedure to power down or disable the port if recommended, then press the release latch and gently pull the transceiver out.

Recommendations

Use certified single-mode or multimode fiber and matching connectors as specified by your equipment to achieve the rated 10000 Mbit/s performance. Keep the transceiver dust caps on when not connected and avoid touching optical interfaces. Ensure firmware and driver compatibility of the host device for optimal interoperability.
