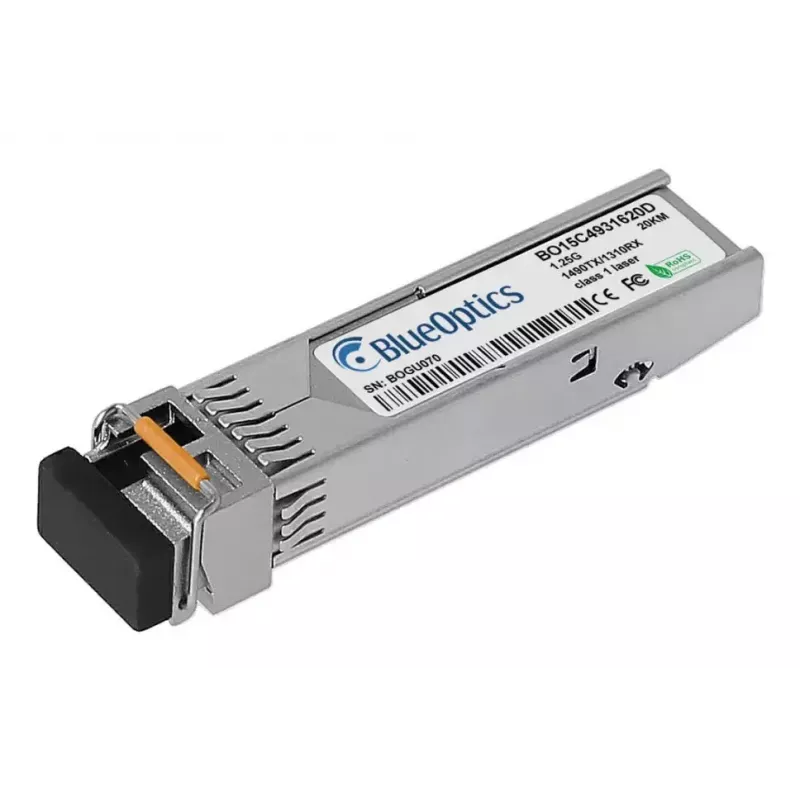

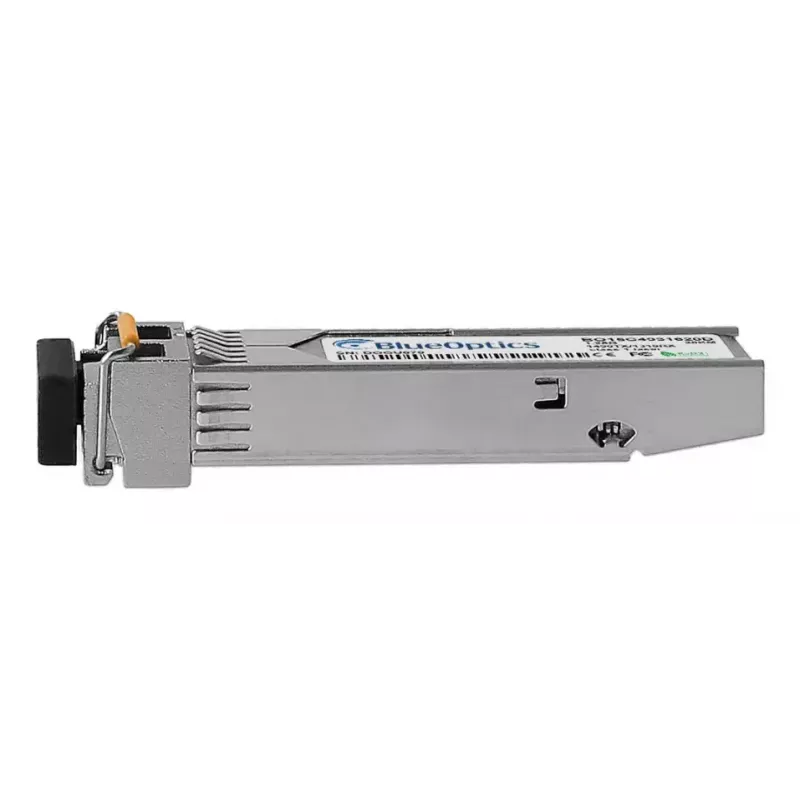

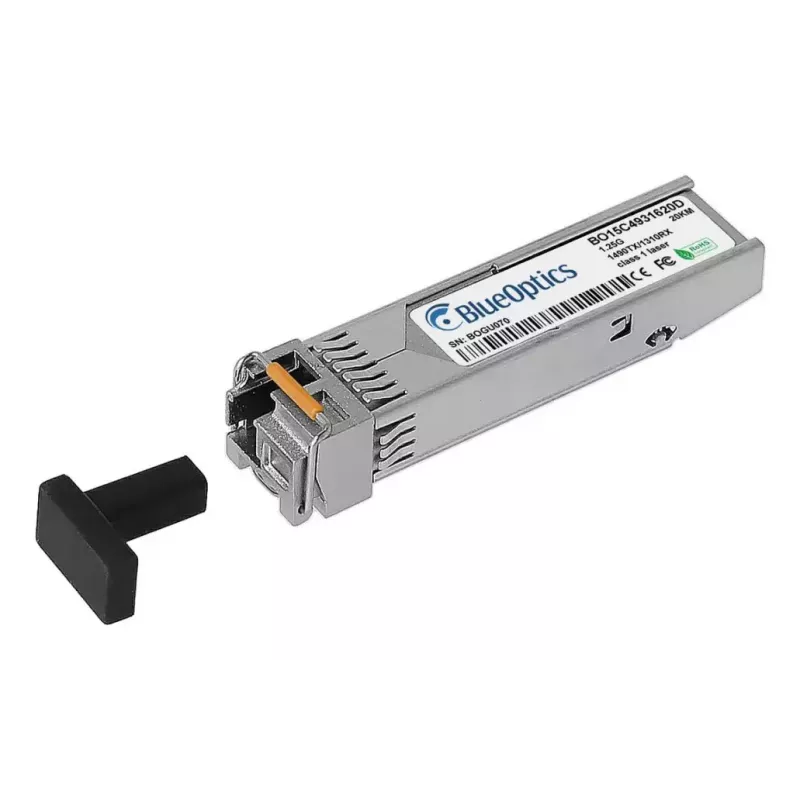

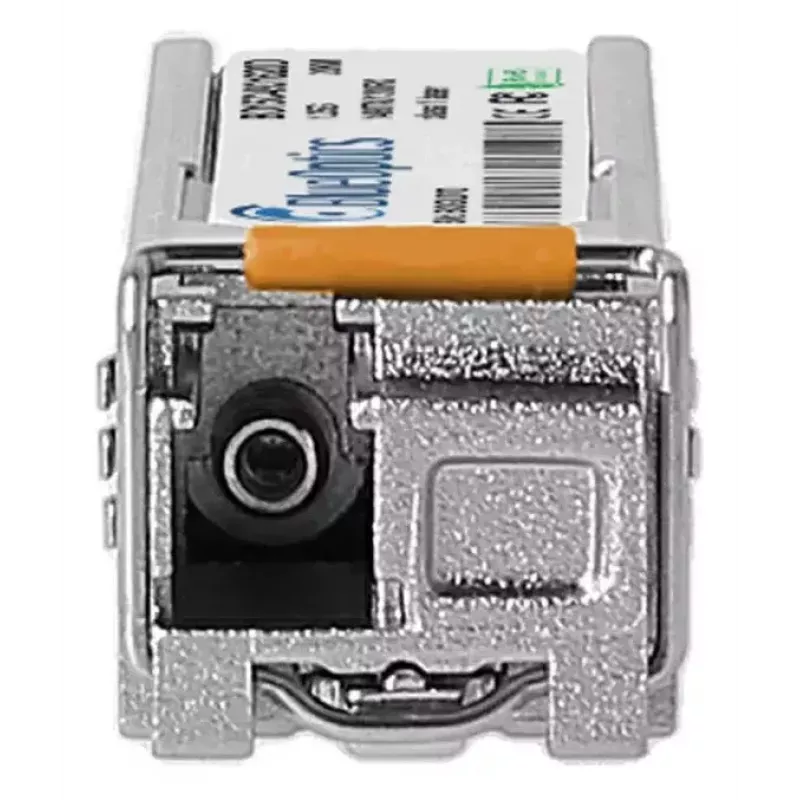

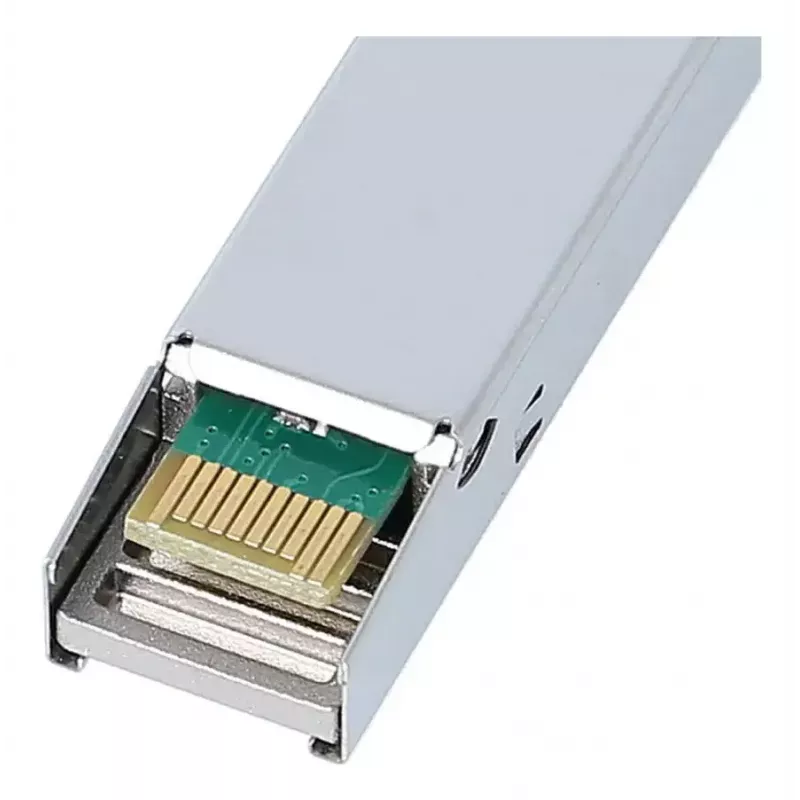

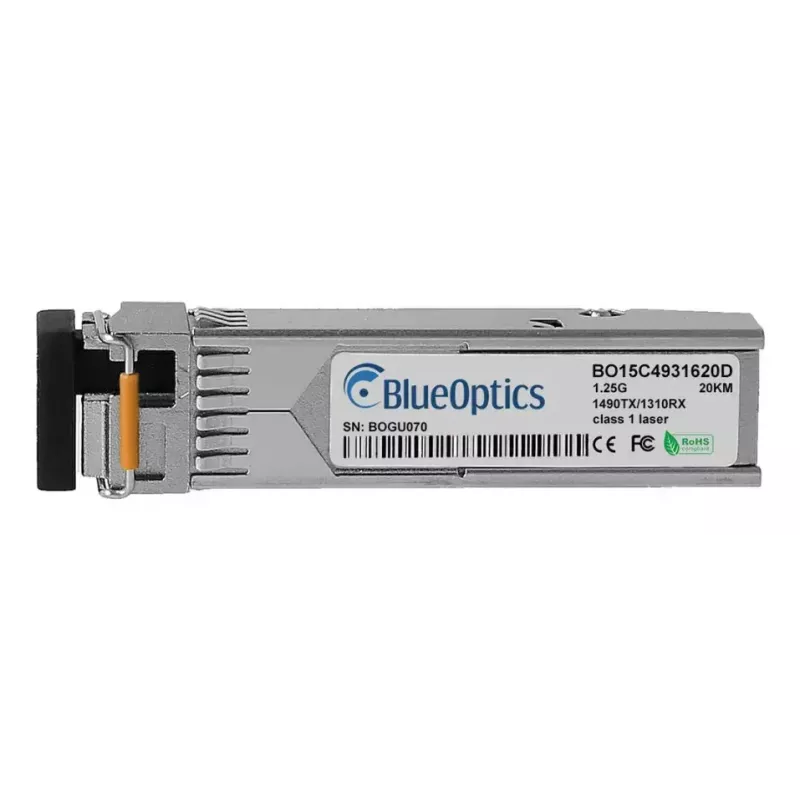

Modul optického transceivera BlueOptics JMEP01B1D11-BO 1250 Mbit/s SFP

The BlueOptics JMEP01B1D11-BO is an SFP fiber optic transceiver module designed for single-mode optical links with a maximum data transfer rate of 1250 Mbit/s. Housed in a metal casing and weighing approximately 20 g, this compact transceiver provides a standardized SFP interface and an LC Simplex optical connector compatible with MSA-compliant equipment. It supports optical transmission over single-mode fiber and is intended for use in networking hardware that accepts SFP transceivers.

Advantages

The transceiver combines a metal housing for mechanical durability with a lightweight design for easy handling and installation. It follows industry MSA form-factor and interface standards, ensuring physical compatibility with a wide range of network devices that support 1.25 Gbps SFP modules. Built to support single-mode fiber links with separate transmit and receive wavelengths, the module is suitable for point-to-point optical connections where EMI immunity and stable optical performance are required.

Suitable for

Key specifications

How to use

Install the transceiver into an available SFP slot on the host device until it engages with the retention mechanism. Connect an appropriate single-mode LC Simplex patch cable between the transceiver and the remote transceiver or patch panel, observing the correct transmit/receive orientation. Ensure the host device is configured to accept a 1.25 Gbit/s SFP module and that any required firmware or software settings permit the module to operate. Power and link status can be monitored through the host equipment management interface; allow a short negotiation period for the link to reach operational state.

Recommendations

Use single-mode LC Simplex patch cords and maintain clean optical connectors to ensure optimal signal quality. Verify that the host device supports SFP transceivers at 1.25 Gbit/s and, if available, enable digital diagnostics (DDM/DOM) support in the host system to monitor operational parameters. Store and handle the transceiver in a dust-free environment and avoid mechanical stress to the optical port.
