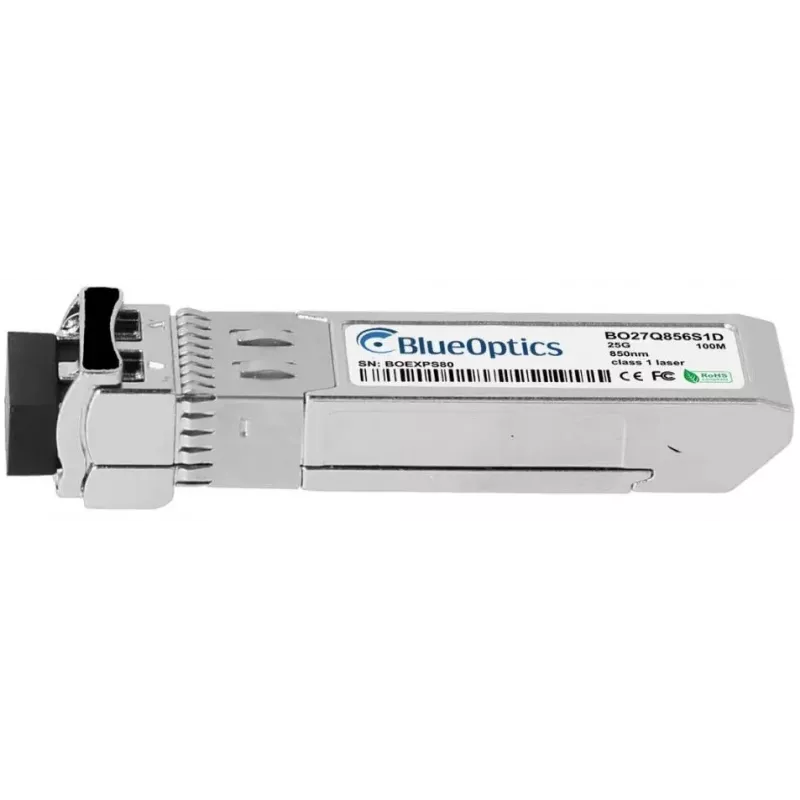

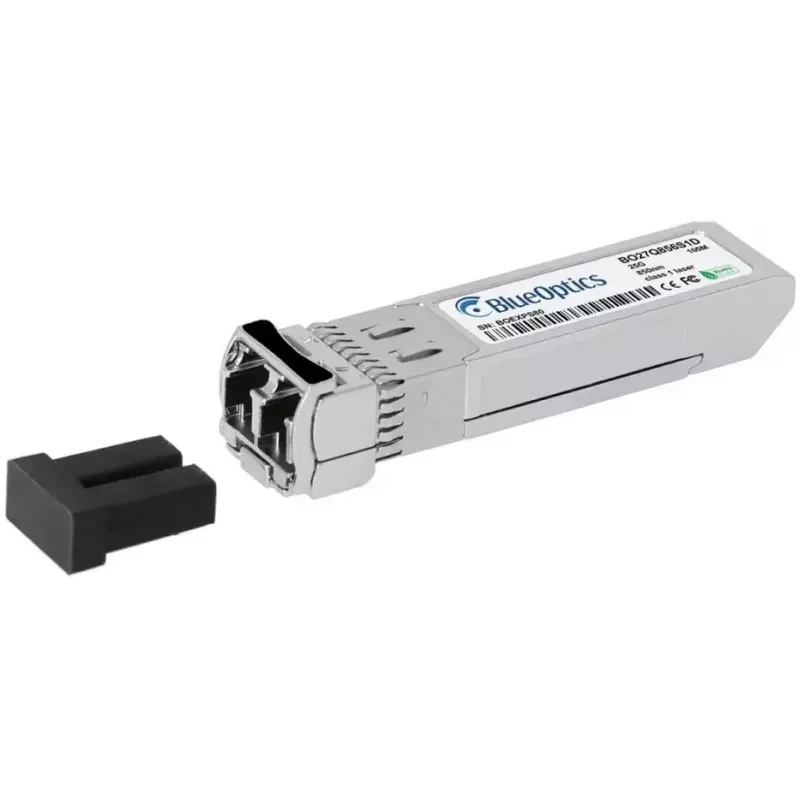

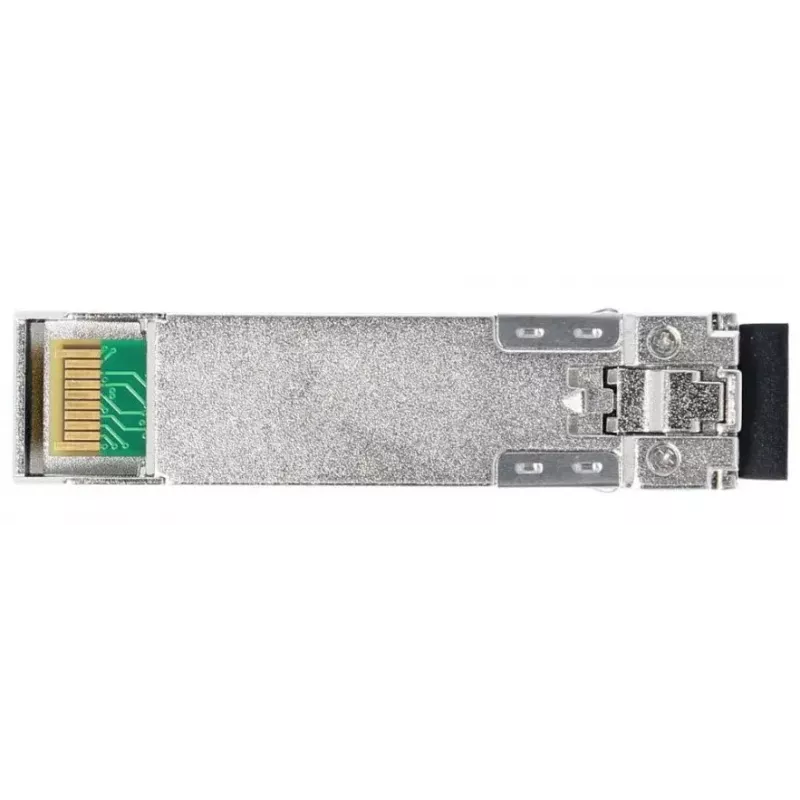

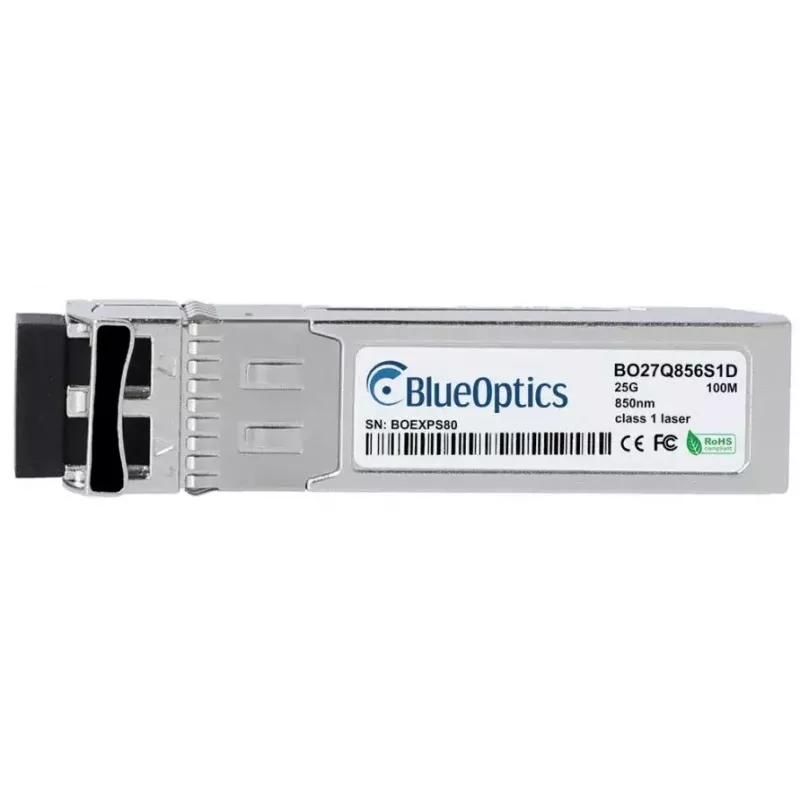

Modul optického transceiveru BlueOptics MMA2P00-AS-BO SFP28 850 nm

The BlueOptics MMA2P00-AS-BO is a 25G SFP28 fiber optic transceiver module designed for multimode links at 850 nm. It uses an LC duplex connector and supports 25GBASE-SR transmission over multimode fiber to distances up to 100 meters. The module implements Digital Diagnostics Monitoring (DDM/DOM) and is manufactured to industry MSA standards for compatibility with hardware that supports the original Mellanox MMA2P00-AS SFP28 transceiver.

Advantages

This SFP28 transceiver provides 25 Gbps data rates over multimode fiber with an LC duplex interface and DDM support for real-time monitoring of voltage, temperature, laser bias current, transmit power and receive power. It is produced to MSA specifications and uses components from established suppliers to ensure interoperability, long service life and high mean time between failures (MTBF).

Suitable for

• 25G high-speed Ethernet links (25GBASE-SR)
• Data center switch-to-switch or switch-to-server connections
• Storage networking and Fibre Channel over Ethernet (FCoE) applications
• Short-reach multimode fiber links up to 100 m

Key specifications

• Form factor: SFP28
• Wavelength: 850 nm (TX/RX)
• Connector: LC duplex
• Standard: 25GBASE-SR
• Max distance: 100 m on multimode fiber
• Digital Diagnostics: DDM/DOM (MSA SFF-8472)
• Compliance: MSA, RoHS, CE
• Weight: 0.04 kg

How to use

Insert the SFP28 transceiver into a compatible SFP28 port on switches, routers or host adapters that support the Mellanox MMA2P00-AS module. Use an LC duplex multimode patch cord to connect to the remote transceiver or patch panel. Verify that the host device supports DDM/DOM if you require diagnostic monitoring and check link parameters in the host management interface after installation.

Recommendations

To achieve optimal performance, use high-quality multimode fiber and appropriate LC patch cords, ensure both ends use compatible 25GBASE-SR SFP28 modules, and verify firmware or driver compatibility on the host hardware. Observe ESD precautions when handling the transceiver and store it in an anti-static environment when not in use.
