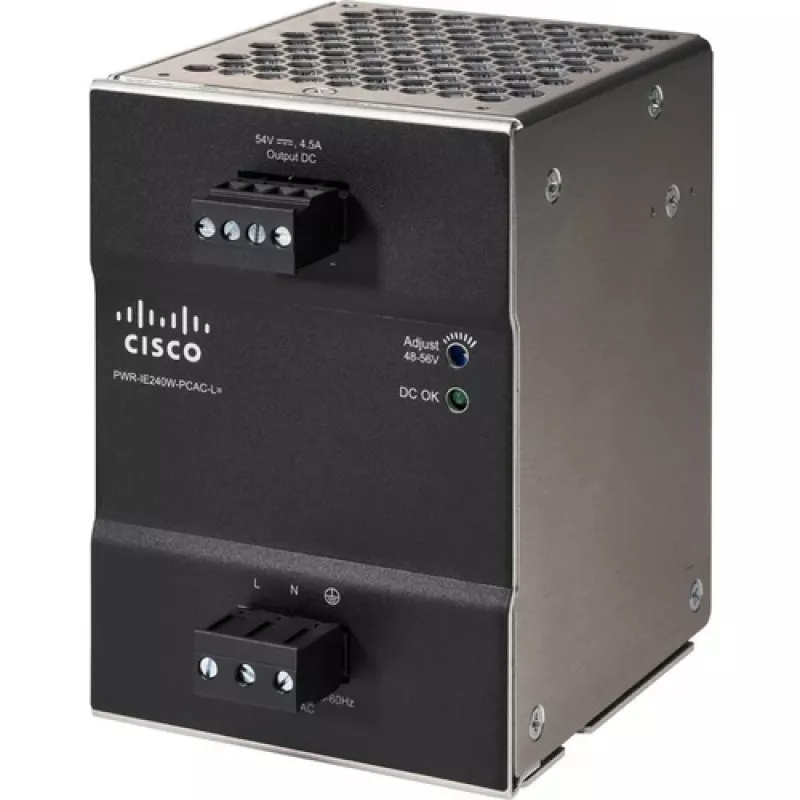

Napájací zdroj Cisco 240W AC P/S LITE

The Cisco 240W AC P/S LITE is a compact industrial power supply that provides a total output of 240W for Cisco industrial Ethernet switches, routers and computing devices. It accepts an AC input voltage range of 90–264 V at 50/60 Hz, features a compact enclosure (85 mm W × 121 mm D × 124.1 mm H), an IP20 safety rating and is certified to EN 60950-1 and UL 62368-1. With an MTBF of 1,058,750 hours, it is designed for reliable continuous operation in industrial installations.

Advantages

The unit delivers a stable 240W output in a small form factor suitable for din-rail mounting and tight cabinet spaces. Wide AC input range and standard safety certifications simplify integration into existing systems. High MTBF indicates long service life, while available conformal coating options and an operating temperature range used across Cisco industrial supplies support deployment in demanding environments.

Suitable for

• Powering Cisco industrial Ethernet switches
• Supplying power to industrial routers and gateways
• Industrial computing devices and control equipment

Key specifications

• Output power: 240 W
• Input voltage: 90–264 V AC, 50/60 Hz
• Dimensions (W×D×H): 85 × 121 × 124.1 mm
• Safety rating: IP20
• Certifications: EN 60950-1, UL 62368-1
• MTBF: 1,058,750 hours
• Manufacturer part number (MPN): PWR-IE240W-PCAC-L=
• EAN: 0889728211512

How to use

Mount the power supply on a compatible DIN rail and connect the AC input to a suitable 90–264 V AC source. Connect the DC output or device-specific power connectors to the target Cisco industrial switch, router or computing device following the equipment wiring diagrams and safety procedures. Ensure proper ventilation around the unit and observe IP20 enclosure limitations when installing in exposed environments.

Recommendations

Install the power supply inside a protective enclosure if it will be exposed to dust or liquids beyond IP20 conditions. Verify compatibility with your Cisco device model and follow Cisco installation guides for PoE-capable systems to ensure correct power budgeting.
