Nástenná skriňa EFB Elektronik 691712FGR.2

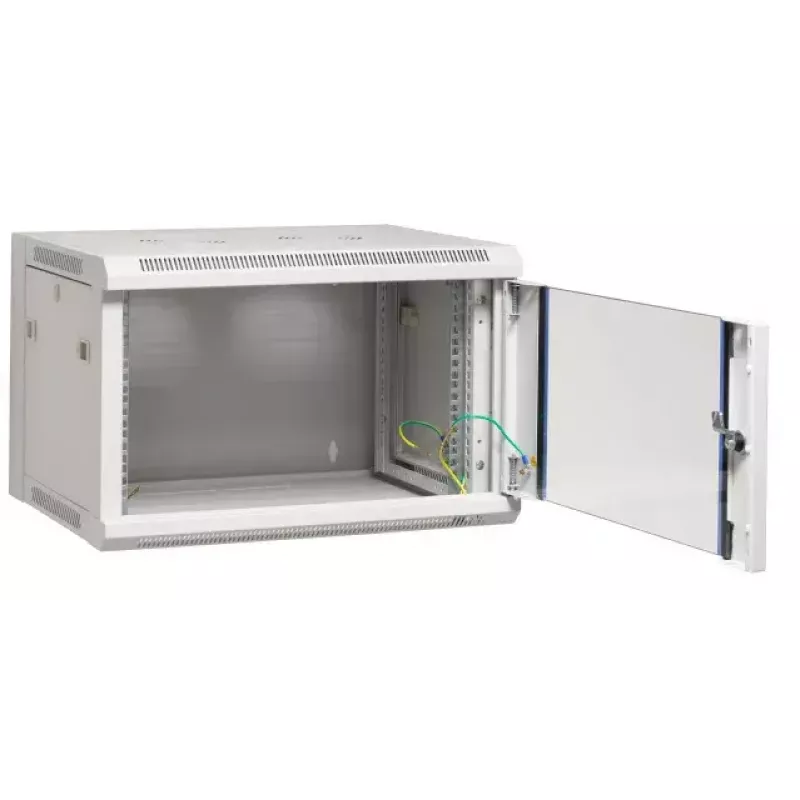

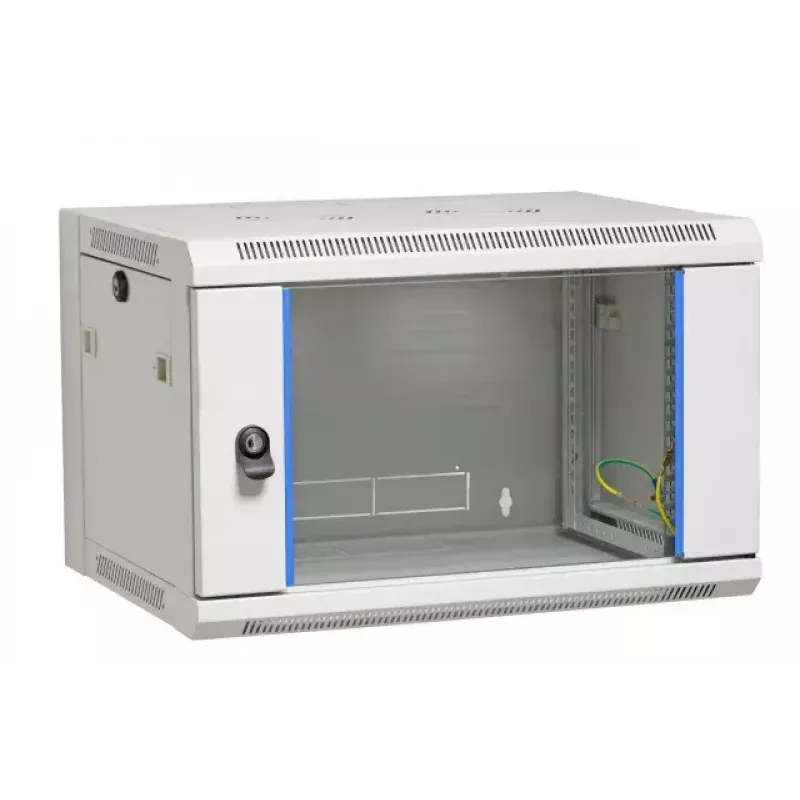

Wall mounted rack EFB Elektronik 691712FGR.2 is a steel sheet cabinet with a screwed frame designed for mounting on walls to save floor space. The cabinet is delivered unassembled and self-ventilated, with removable side wall equipped with a quick fastener. Roof, bottom and rear wall have pre-punched openings (230 x 41 mm) for cable entry, and the roof is prepared for mounting two single fans (Art.-No. 691664). Inside there are two front-sided, depth-adjustable 19" rails. The front door includes a window of certified safety glass (4 mm) with a lock. Cabinet parts are completely earthed, the maximum load is 60 kg and the protection degree is IP20. Paint finish is RAL7035 (light grey). Included accessories: 2 keys. Delivered unassembled in transport packaging.

Advantages

The EFB Elektronik 691712FGR.2 offers a compact wall-mounted design that optimizes space while providing a secure housing for network equipment. Its removable side wall with quick fastener enables easier installation and maintenance, while pre-punched cable entries and fan-ready roof simplify routing and ventilation options. The front door with safety glass and lock provides visual access without compromising security, and the depth-adjustable 19" rails allow flexible equipment mounting. Full earthing of parts and RAL7035 powder-coated finish ensure durability and compliance with indoor installation requirements.

Suitable for

• Mounting and organizing 19" network equipment in offices and small server rooms
• Structured cabling terminations and patch panels
• Environments requiring wall-mounted, space-saving rack solutions with IP20 protection

Key specifications

• Brand: EFB Elektronik, model: 691712FGR.2
• Dimensions (W x D x H): 570 mm x 600 mm x 635 mm
• Material: steel sheet housing with screwed frame
• Mounting: wall mounted, delivery unassembled
• Rail type: 2 x 19" front-sided, depth-adjustable
• Cable entries: pre-punched openings 230 x 41 mm (roof, bottom, rear)
• Fan provision: roof prepared for 2 x single fan (Art.-No. 691664)
• Front door: safety glass window, thickness 4 mm, with lock
• Protection class: IP20
• Max. load: 60 kg
• Finish: RAL7035 (light grey)
• Included accessories: 2 x key
• EAN: 4049759160807, MPN: 691712FGR.2

How to use

Unpack the cabinet and follow the included assembly instructions to mount the screwed frame and panels. Fix the cabinet securely to a suitable wall structure using appropriate anchors and fasteners for the wall material. Install the depth-adjustable 19" rails to the required position, route cables through the pre-punched openings (230 x 41 mm) and, if required, mount up to two single fans on the prepared roof openings. Mount network devices on the 19" rails, secure the front door and lock it with the supplied keys. Ensure all cabinet parts remain properly earthed during and after installation.

Recommendations

Install the rack on load-bearing walls and use appropriate wall anchors. Keep ventilation openings unobstructed; if active cooling is needed, install compatible fans (Art.-No. 691664). Observe the 60 kg maximum load rating and distribute equipment weight evenly on the rails to maintain stability and safe operation.
