Nástenný rack EFB Elektronik 691715FGR.1

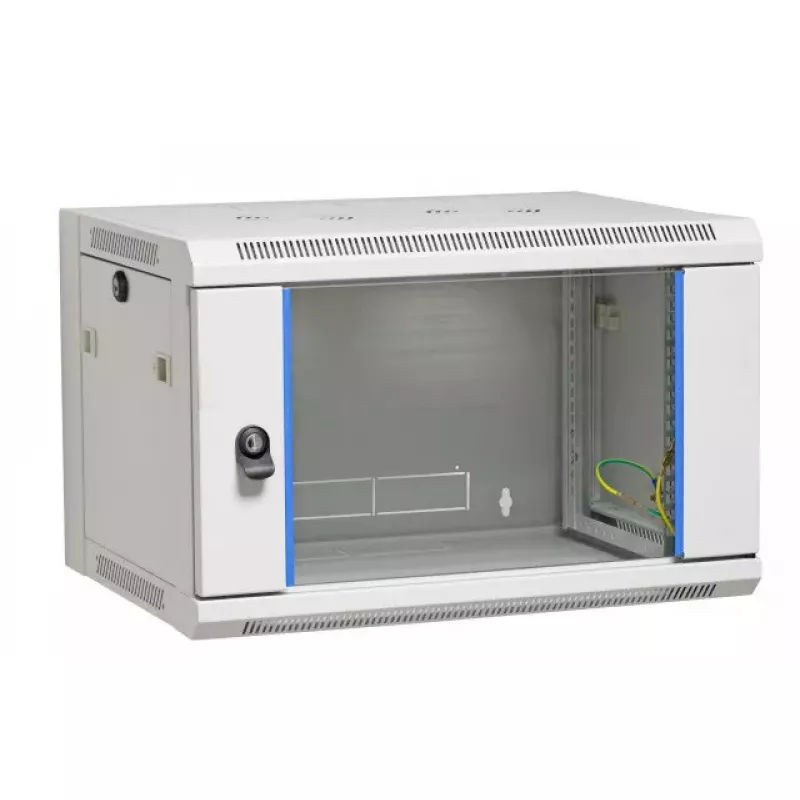

The EFB Elektronik 691715FGR.1 wall mounted rack is a compact network cabinet designed to organize and protect network equipment in offices, server rooms or technical spaces. Constructed from steel sheet with a screwed frame and a RAL7035 light grey paint finish, the cabinet offers a robust mounting solution with a maximum load capacity of 60 kg. With IP20 protection, pre-punched cable entry points and depth-adjustable 2 x 19" rails, it provides practical features for tidy installations where space is limited.

Advantages

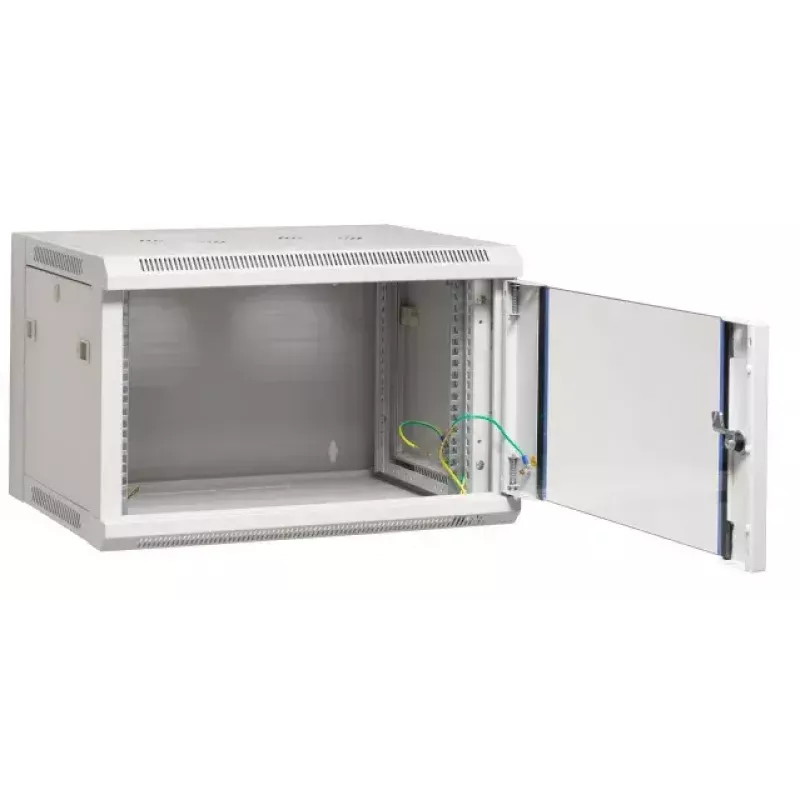

The cabinet’s steel sheet housing and screwed frame ensure structural stability while remaining service-friendly thanks to removable side walls with quick fasteners. A front door with a 4 mm certified safety glass window and a lock permits visual inspection without opening, and included keys simplify secure access control. Pre-punched openings on the roof, bottom and rear facilitate cable routing, and the roof is prepared to accept two single fans for optional active ventilation. All cabinet parts are fully earthed for electrical safety.

Suitable for

• Wall-mounted installations in small server rooms and network closets
• Mounting switches, patch panels and compact network devices on 19" rails
• Organized cable entry and routing in office IT cabinets
• Environments requiring visible device monitoring through a glass door

Key specifications

• External dimensions: Width 570 mm, Depth 450 mm, Height 770 mm
• Protection rating: IP20 (protection against solid objects >12.5 mm)
• Material: Steel sheet housing with screwed frame
• Mounting: 2 x 19" rails, front-sided, depth-adjustable
• Front door: Certified safety glass window, 4 mm thick, with lock
• Cable entry: Pre-punched openings on roof, bottom and rear (230 x 41 mm)
• Ventilation: Roof prepared for mounting of 2 x single fans
• Load capacity: Maximum 60 kg
• Finish: RAL7035 light grey
• Delivery: Unassembled, includes 2 keys

How to use

Unpack the cabinet from its transport packaging and assemble following the included assembly instructions. Mount the cabinet securely to a suitable wall structure that supports the cabinet’s maximum load of 60 kg. Install the depth-adjustable 19" rails to match the depth of the devices you plan to mount, then mount switches, patch panels and other 19" compatible equipment. Route cables through the pre-punched openings at the roof, bottom or rear and fit grommets or brush strips as needed. If additional airflow is required, install up to two single fans in the prepared roof positions and connect them to a suitable power source. Ensure all parts remain properly earthed and lock the front door when access is not required.

Recommendations

For safe and reliable operation, mount the cabinet on a load-bearing wall and distribute equipment weight evenly across the rails. Use proper cable management accessories and maintain clearance for ventilation. When placing active equipment that generates heat, consider installing the optional fans and monitoring internal temperature. Regularly check the earthing and lock functionality to ensure electrical safety and physical security.
