Nástenný rack EFB Elektronik 691709FTS.2

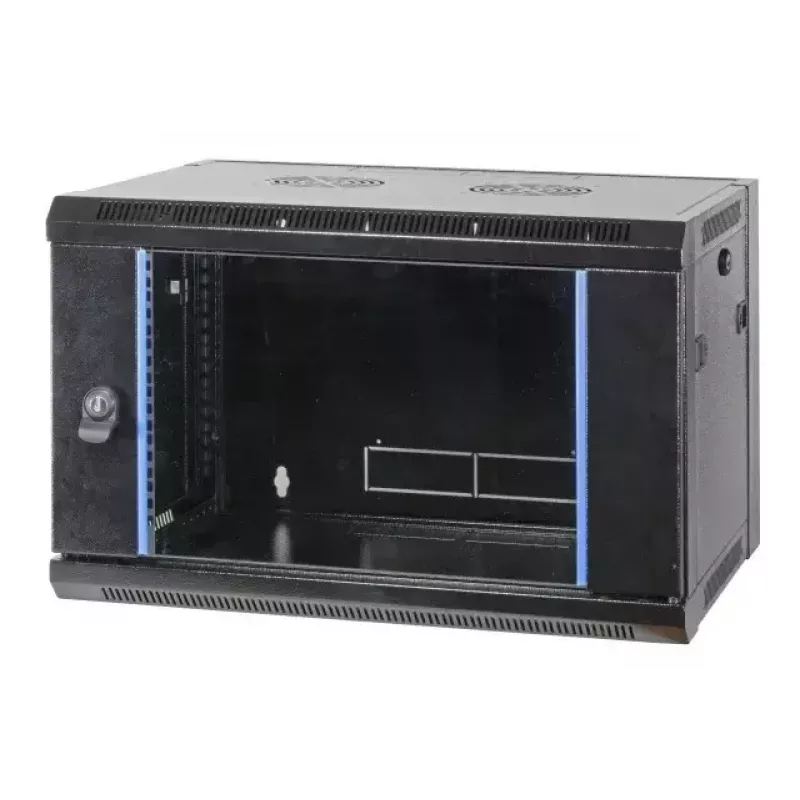

The EFB Elektronik 691709FTS.2 wall mounted rack is a compact network cabinet engineered for organized equipment storage and secure mounting of 19" devices. Constructed from steel sheet housing with a screwed frame and finished in RAL9005 jet black, the cabinet is delivered unassembled and designed for wall attachment. It offers an IP20 protection rating, removable side wall with quick fastener, pre-punched cable entry openings and a front door with a 4 mm certified safety glass window and lock. Inside are two depth-adjustable 19" rails for mounting active or passive network components, while the roof is prepared for two single fans to support self-ventilation when required.

Advantages

The rack combines sturdy steel construction with a screwed frame for reliable load bearing up to 60 kg and integrated earthing of all cabinet parts. Pre-punched openings in the roof, bottom and rear wall simplify cable routing, and the removable side wall with quick fastener allows convenient access during installation or maintenance. The front door with safety glass and lock provides visual inspection without opening while maintaining secure closure; included keys ensure controlled access. The jet black paint finish and compact dimensions help integrate the unit into technical rooms, office spaces or retail environments.

Suitable for

• Mounting and organizing 19" network switches, patch panels and routers in small to medium installations
• Wall-mounted IT closets in offices, server rooms, retail outlets or communication cabinets in technical rooms
• Environments requiring basic protection from solid objects and tidy cable management

Key specifications

• External dimensions (W x D x H): 570 mm x 600 mm x 500 mm
• Protection rating: IP20
• Material: steel sheet housing with screwed frame
• Internal mounting: 2 x 19" rails, front-sided, depth-adjustable

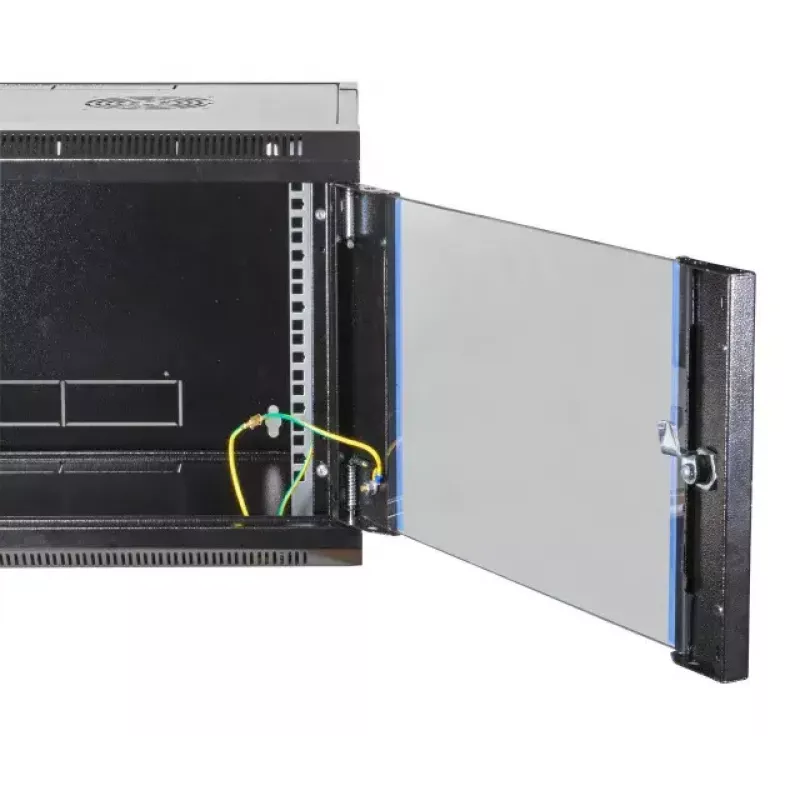

• Front door: certified safety glass window, 4 mm thickness, lockable

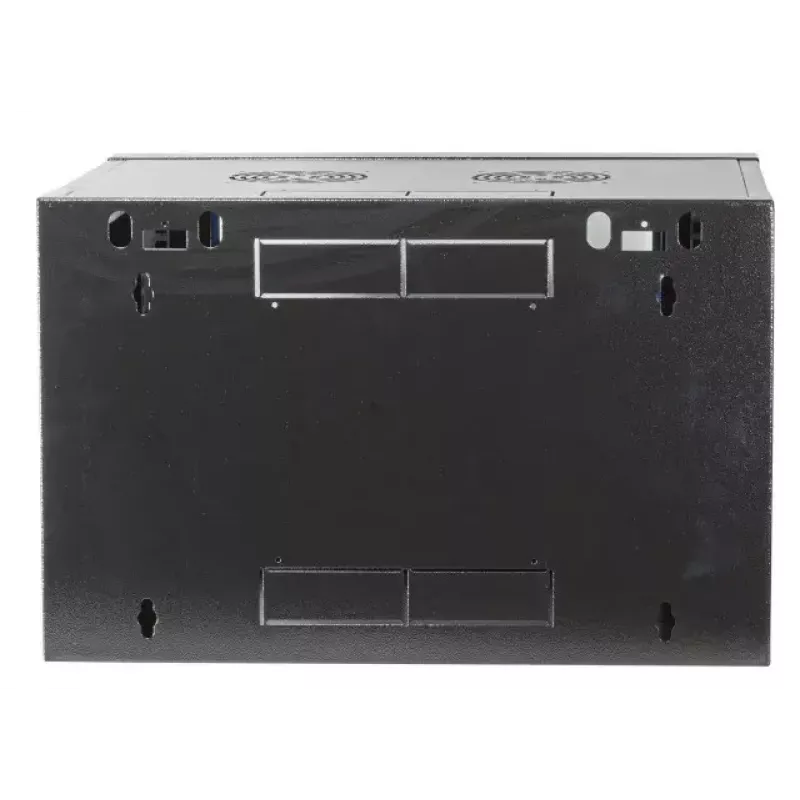

• Cable entry: pre-punched openings in roof, bottom and rear (230 x 41 mm)
• Ventilation: self-ventilated; roof prepared for 2 x single fan

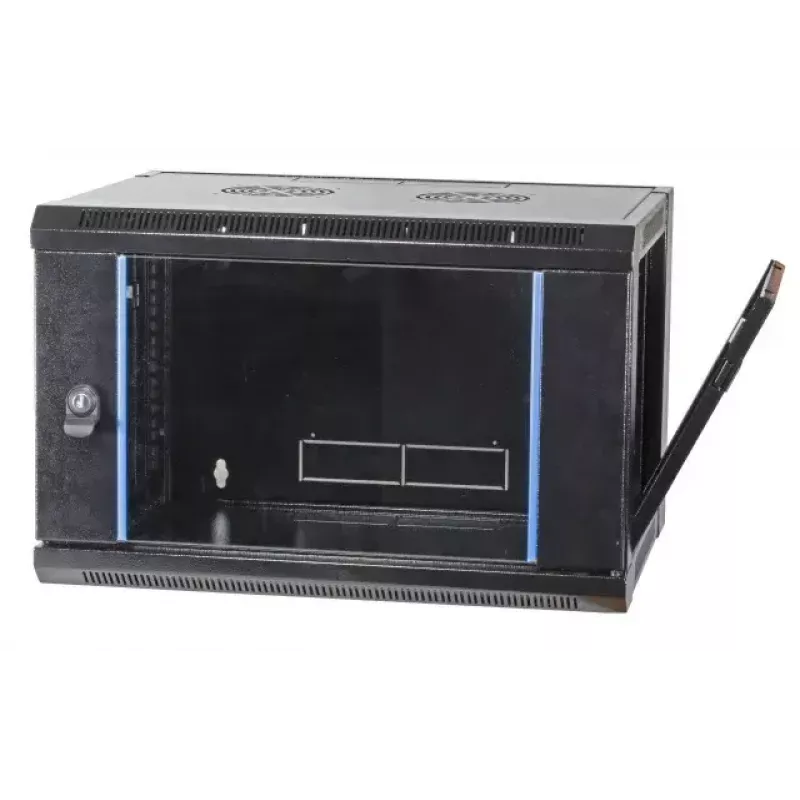

• Removable side wall with quick fastener for access
• Max. static load capacity: 60 kg
• Finish: powder coat RAL9005 (jet black)
• Delivery state: unassembled; includes 2 keys

How to use

Assemble the cabinet following the supplied instructions and secure it to a suitable load-bearing wall using appropriate fixings (not included). Install and adjust the two 19" rails to match the depth of your equipment, route cables through the pre-punched openings and earth the cabinet as part of the installation. Mount devices onto the 19" rails, use the removable side wall for easier cabling and, if additional airflow is required, fit up to two single fans in the prepared roof positions. Lock the front door after installation to restrict access and retain the keys in a secure location.

Recommendations

Use the cabinet in dry indoor environments only, consistent with the IP20 protection rating; avoid exposure to moisture or dust beyond typical indoor conditions. Do not exceed the maximum load of 60 kg and choose appropriate wall anchors for the mounting surface to ensure safe installation. For improved thermal management in densely populated installations, install compatible fans in the roof openings and maintain clearance around the cabinet for airflow and service access.
