Nástenný rack Triton Delta B4S 19" rack nástenná montáž 12U/400

The Triton Delta B4S 19" wall-mounted rack is a compact 12U cabinet designed to organize and secure network and IT equipment. Constructed from steel sheet with a 5 mm safety hardened glass front door, the rack supports up to 30 kg and is finished in grey. At 20.5 kg own weight, it suits small server, networking and AV installations where space-saving wall mounting and front visibility are required.

Advantages

Steel construction provides structural strength while the 5 mm hardened glass door offers visibility of equipment and a degree of physical protection. The 12U size and 19" mounting standard make the rack compatible with standard patch panels, switches and small servers. Wall-mount design saves floor space and is suitable for closets, small offices or home installations.

Suitable for

• Small network closets and telecommunications points
• Home lab or small office rack installations
• Mounting 19" switches, patch panels and compact servers
• Audio-visual or surveillance equipment with 12U height

Key specifications

• Mounting size: 19"
• Height: 12U
• Maximum load capacity: 30 kg
• Net weight: 20.5 kg

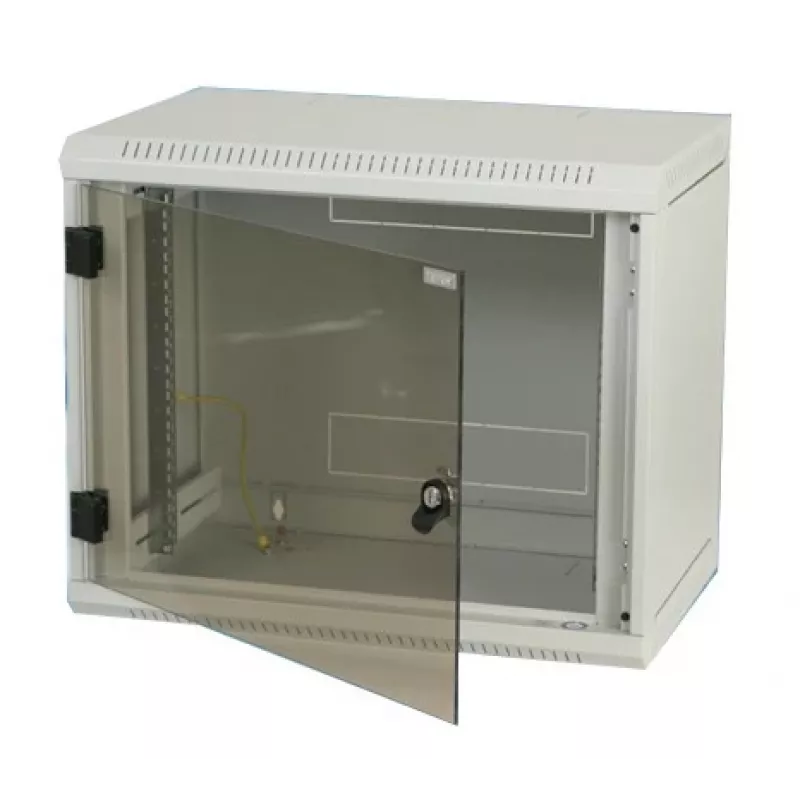

• Front door: 5 mm safety hardened glass
• Body material: steel sheet
• Colour: Grey
• Brand: Triton
• MPN: RBA-12-AS4-CAX-A1
• EAN: 8595105016541

How to use

Securely fasten the rack to a suitable load-bearing wall following local building codes and using appropriate anchors for the wall material. Install 19" equipment into the mounting rails, positioning heavier devices low in the cabinet to maintain stability. Route cabling neatly through available openings and use proper cable management to maintain airflow and accessibility. Close the glass door to protect equipment while allowing visual inspection.

Recommendations

Check the combined weight of installed equipment to ensure it does not exceed the 30 kg maximum. Use appropriate wall fixings rated for the total load and the wall type. For equipment requiring active cooling, verify airflow and consider additional ventilation or low-noise fans if necessary.
