Nástenný/stropný držiak Schwaiger LWH310WD

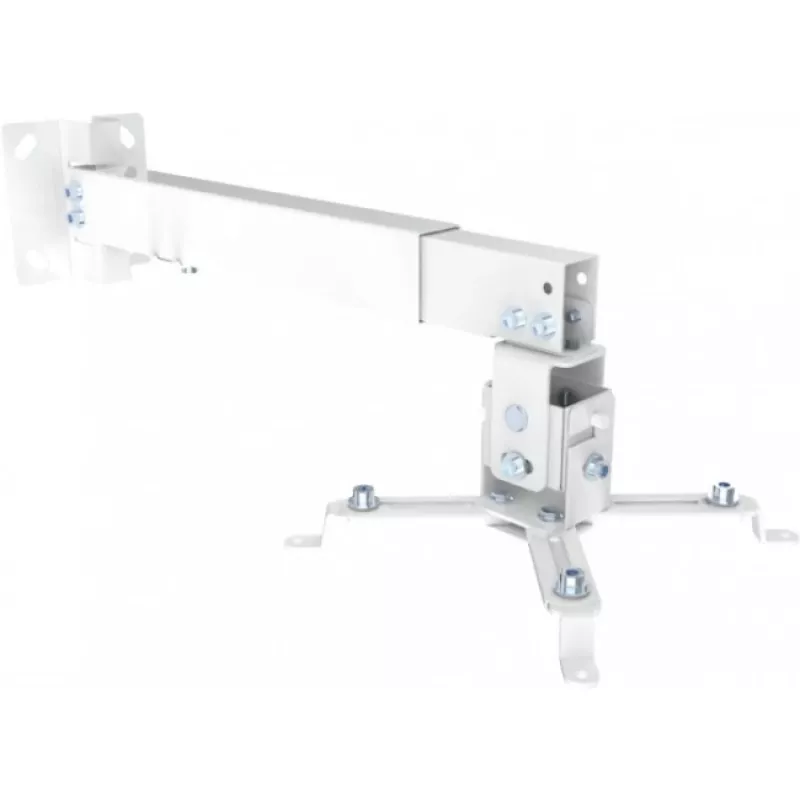

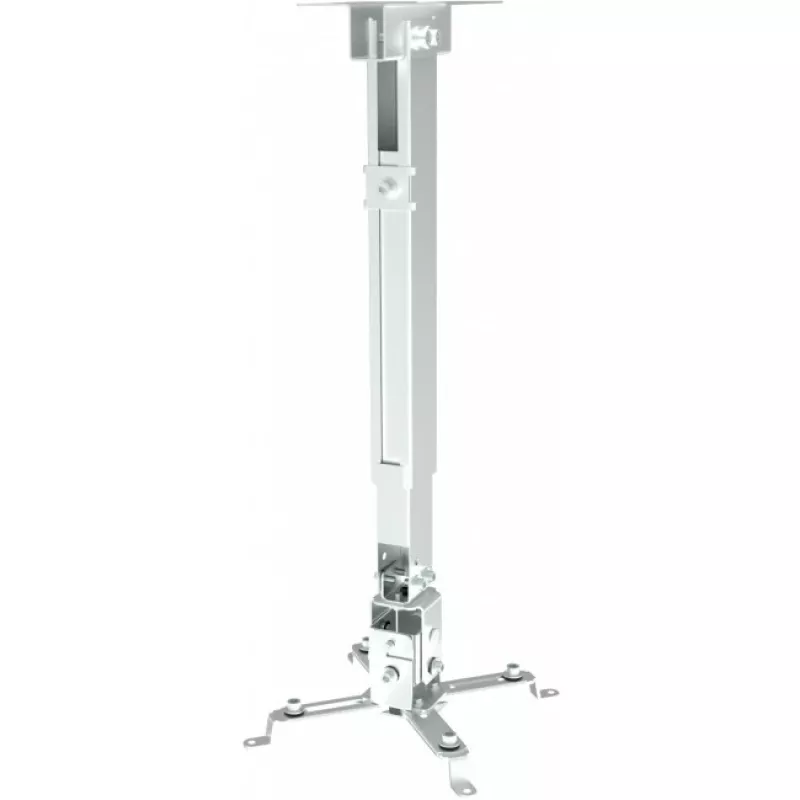

The SCHWAIGER LWH310WD mount is designed for wall or ceiling installation of projectors and similar devices. It supports equipment up to 20 kg and has a compact footprint (270 mm width, 240 mm height, 80 mm depth) with a white finish suitable for home or office environments.

Advantages

This mount offers tilt, axial rotation and swivel adjustments allowing forward tilt, left/right swivel and upward/downward positioning to accommodate sloping ceilings and varied installation angles. Its universal mounting options make it compatible with most projector models while its robust construction provides high mechanical resilience for secure, long-term use.

Suitable for

• Mounting projectors on walls
• Mounting projectors from sloped or flat ceilings
• Home theatre or small office AV installations
• Situations requiring adjustable projector alignment

Key specifications

• Maximum load capacity: 20 kg

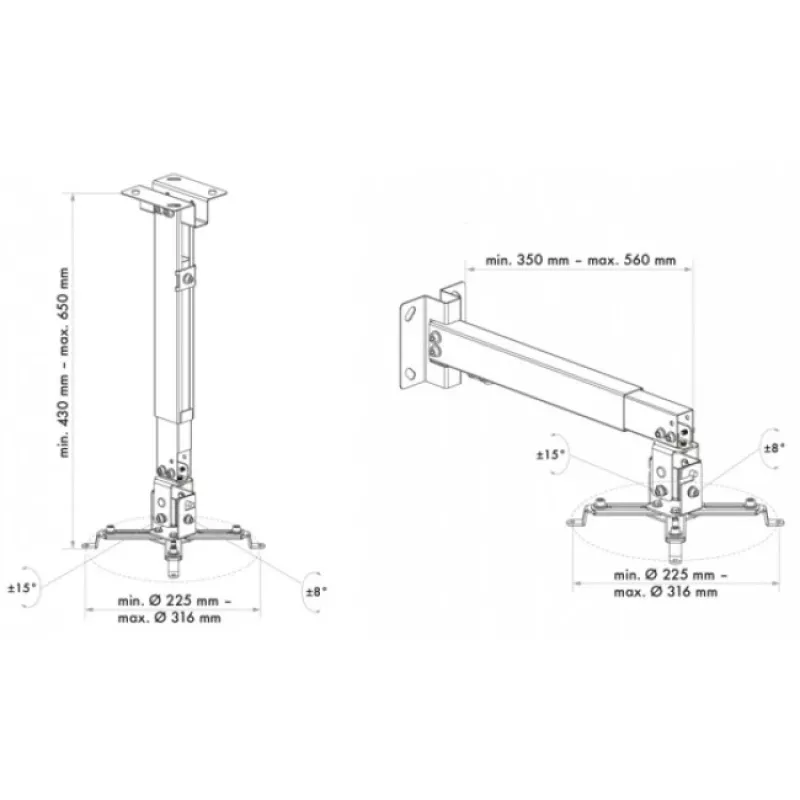

• Dimensions (W×H×D): 270 × 240 × 80 mm
• Mounting type: Wall/ceiling
• Colour: White
• Brand / model: SCHWAIGER LWH310WD
• EAN: 4004005011654

How to use

Attach the mount to a suitable solid wall or ceiling surface using appropriate fixings for your substrate. Fix the projector to the universal plate, then adjust tilt, axial rotation and swivel to align the projected image. Tighten all adjustment screws to secure the set position and recheck alignment after powering on the projector.

Recommendations

Use appropriate anchors and screws for the mounting surface and ensure the combined weight of the projector and any accessories does not exceed the 20 kg rating. If mounting on a sloped ceiling, confirm the chosen fixings are rated for angled loads and periodically check all fastenings for tightness.
