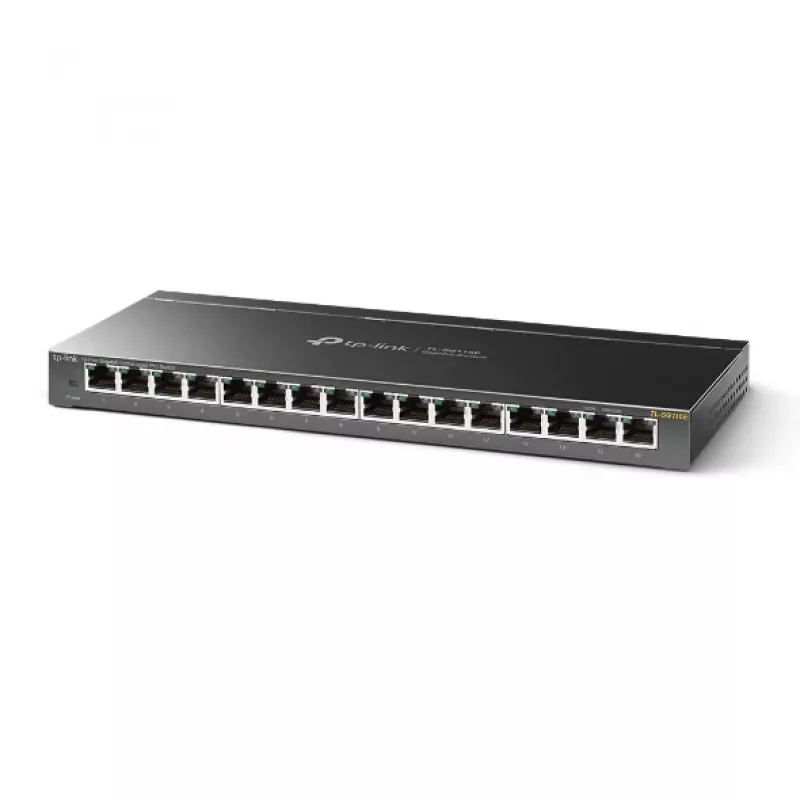

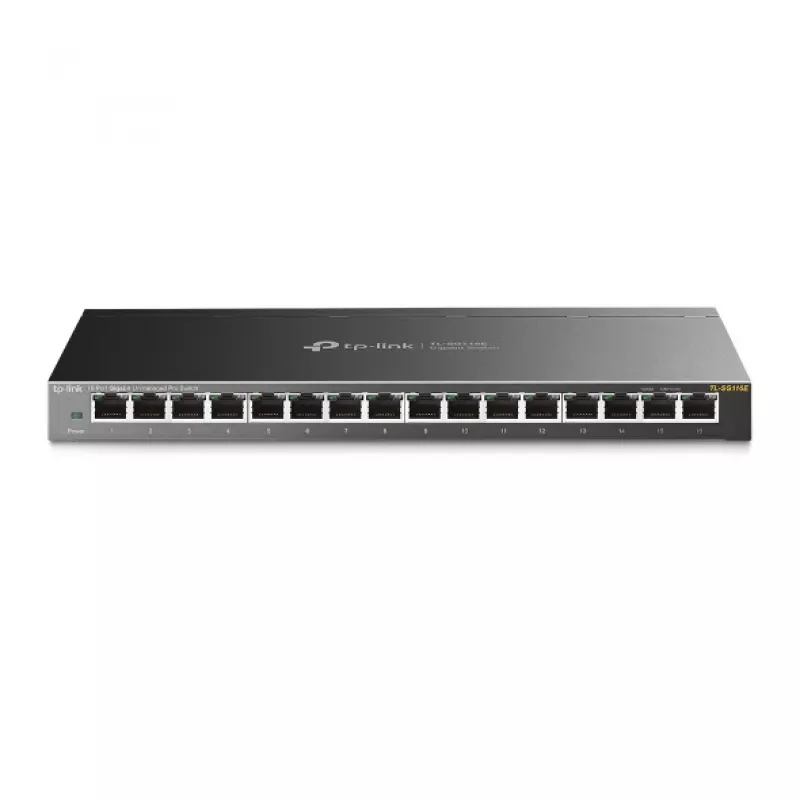

Nespravovaný switch TP-Link TL-SG116E 16-port Gigabit

The TL-SG116E Unmanaged Pro switch is an upgrade for basic unmanaged switches, suitable for home and small business networks. It offers plug-and-play deployment without the need for a technician and a durable metal casing that protects internal components. The switch supports intelligent features such as QoS, VLAN and IGMP Snooping to meet both simple and more demanding network requirements.

Advantages

The switch provides straightforward installation with Auto MDI/MDI-X and auto-negotiation on all ports for automatic link speed detection and compatibility adjustment. Its metal housing enhances reliability and enables placement on desktops or workbenches. Additional features include network monitoring, Port Mirroring, Loop Prevention and Cable Diagnostics to help identify and locate connection issues, while QoS and VLAN functions allow traffic prioritization and segmentation.

Key specifications

• Model: TL-SG116E Unmanaged Pro
• Ports: 16 Ethernet ports
• Management: Unmanaged Pro with intelligent features (QoS, VLAN, IGMP Snooping)
• Auto features: Auto MDI/MDI-X and auto-negotiation on all ports
• Casing: Durable metal enclosure
• Additional software: Port Mirroring, Loop Prevention, Cable Diagnostics, Network Monitoring
• Energy: Energy-saving technology adjusts power by link status and cable length

How to use

Connect devices to any of the 16 Ethernet ports; Auto MDI/MDI-X eliminates the need for crossover cables. The switch detects link speed automatically and configures ports for optimal compatibility. Use the available monitoring and diagnostic functions to inspect traffic, mirror ports for troubleshooting, detect loops and test cable quality. Configure traffic priority using Port/802.1p/DSCP QoS and set VLANs using port-based or 802.1Q-based methods where network segmentation is required.

Recommendations

Place the TL-SG116E on a stable, ventilated surface and connect it to a compatible power source. For networks requiring advanced centralized management, consider pairing this Unmanaged Pro switch with managed switches or a network controller. Use QoS to prioritize voice and video traffic and run diagnostics when connection issues are suspected.
