Neupravovaný switch PLANET IP30 priemyselný 4-portový

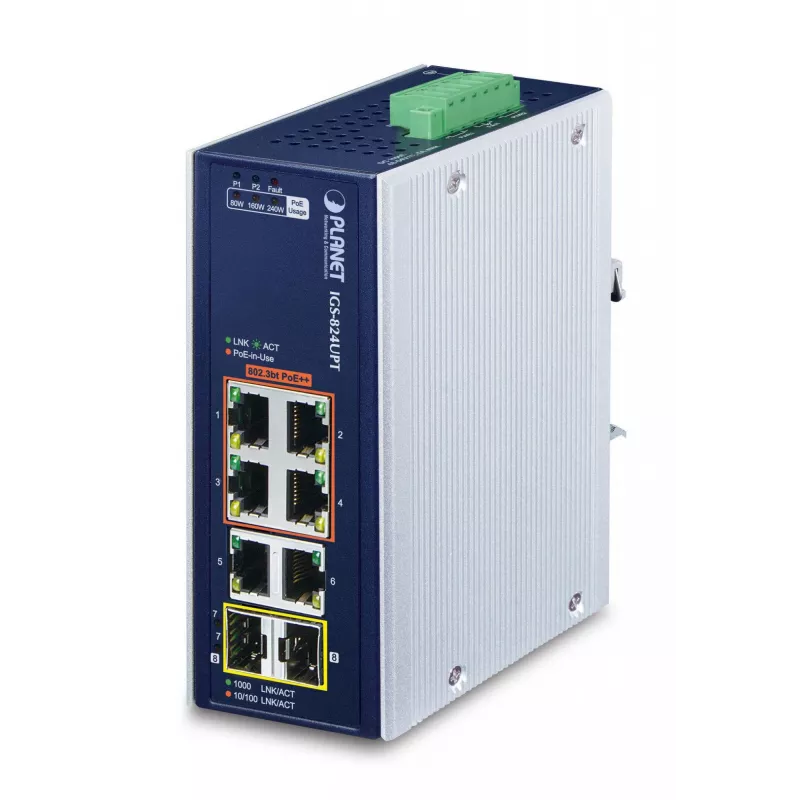

The PLANET IGS-824UPT is an IP30-rated industrial unmanaged Gigabit Ethernet switch with four 10/100/1000BASE-T ports and two 100/1000BASE-X SFP uplink slots. Designed for harsh environments, it provides IEEE 802.3bt (PoE++) injector capability to deliver up to 95 W per port over standard Cat5e/6 cabling, a total PoE budget of up to 240 W, redundant 48–54 V DC dual power inputs, and an operating temperature range of -40 to 75 °C in a rugged metal housing.

Advantages

The switch combines high-power PoE++ delivery with gigabit data throughput and fiber uplink flexibility in a compact, fanless IP30 metal enclosure. Intelligent front-panel LEDs show real-time PoE power usage levels (80 W / 160 W / 240 W). Redundant DC power inputs and robust ESD and surge protection improve availability and reliability in industrial installations.

Suitable for

• Deploying PoE PTZ or high-power surveillance cameras
• Powering thin clients, AIO touch PCs, POS terminals and kiosks
• Remote digital signage and lighting systems
• Extending networks to remote sites via SFP fiber uplinks

Key specifications

• Ports: 4 × 10/100/1000BASE-T (PoE++), 2 × 100/1000BASE-X SFP
• PoE standard: IEEE 802.3bt (PoE++), PoH support
• Per-port power: up to 90–95 W (4-pair)
• Total PoE budget: up to 240 W
• Power input: dual 48–54 V DC
• Switching capacity: 16 Gbit/s
• MAC table: 4000 entries
• Operating temperature: -40 to 75 °C
• Housing: IP30 metal, fanless
• Weight: 0.777 kg

How to use

Mount the IGS-824UPT on a DIN rail in a suitable enclosure or cabinet. Connect network devices to the Gigabit RJ-45 ports using Cat5e/6 cables; PoE-capable ports will provide power automatically to IEEE 802.3bt-compliant devices. Insert compatible SFP transceivers into the SFP slots for fiber uplinks and choose multi-mode or single-mode modules according to required distance. Provide redundant DC power via the 48–54 V inputs; the switch performs automatic hardware failover between supplies.

Recommendations

Use Cat5e or Cat6 cabling for full PoE++ power delivery, select SFP modules matched to the fiber type and distance, and ensure proper grounding and isolation in high-interference industrial environments to maintain stable operation.
