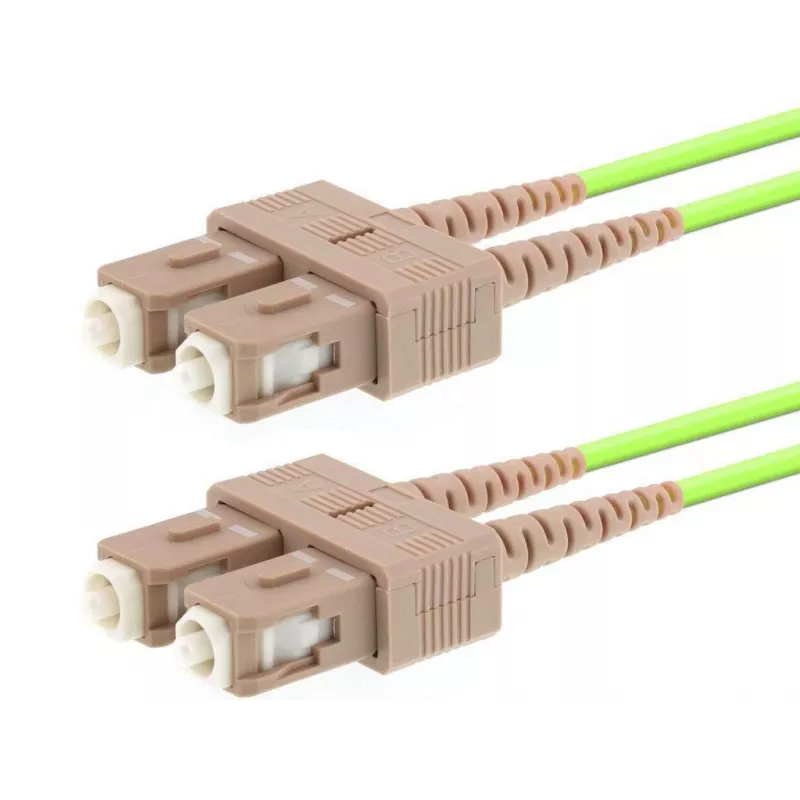

Optický patch kábel LOGON AL5SCSC10I/5I — OM5, SC–SC, 10 m, 50 µm, plný duplex, svetlozelený

LOGON AL5SCSC10I/5I is a 10 m fibre optic patch cable built for high-speed short-range links. It uses WideBand OM5 multimode fibre with a 50 µm core diameter and SC connectors on both ends in a full duplex configuration. The light green jacket identifies OM5 fibre and ensures visual identification in racks and cabling trays. This cable is compatible with existing multimode installations and supports multi-wavelength transceivers for future 100 Gb/s and 400 Gb/s short-reach applications.

Advantages

WideBand OM5 bend-insensitive multimode fibre delivers OM4-level performance across a wider spectral window (850–950 nm), enabling short wavelength division multiplexing (SWDM) systems. The 50 µm laser-optimized core improves bandwidth for short-range high-density links, while SC–SC terminations provide reliable mechanical performance and easy insertion in common multimode equipment. The 10 m length is suitable for inter-rack and equipment-to-equipment connections in data centres and telecommunications rooms.

Suitable for

• Data centre interconnects and patching between racks
• Storage area networks (SAN) and server uplinks
• Telecom equipment and optical distribution frames requiring multimode SC terminations
• Multi-wavelength short-reach links using SWDM transceivers

Key specifications

• Fibre type: WideBand OM5 bend-insensitive multimode fibre
• Core diameter: 50 µm
• Length: 10 m
• Connector type: SC to SC, male on both ends
• Mode configuration: Full duplex multimode
• Jacket colour: Light green (OM5 identification)
• Optimised wavelength range: 850–950 nm

How to use

Install the LOGON OM5 SC–SC patch cable by inserting each SC connector into the corresponding SC adapter or transceiver port until the connector clicks into place. Route the cable through cable management paths, avoiding tight bends and excessive tension; follow standard bend radius guidelines for multimode fibre to maintain performance. For full duplex links, ensure transmit and receive ports are correctly paired so that each fibre carries the intended direction of traffic.

Recommendations

Use this cable for short-range, high-density multimode connections where OM5 compatibility and SWDM-capable transceivers are required. Inspect connector endfaces before mating and keep dust caps on unused connectors. For permanent installations, secure the cable with appropriate strain relief and maintain bend radii to preserve optical performance.
