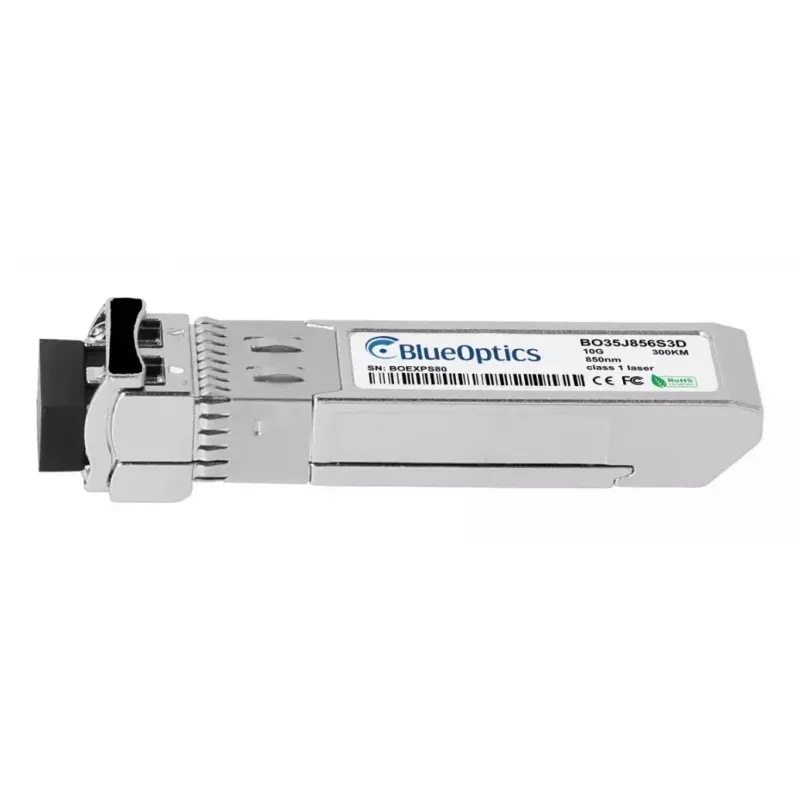

Optický transceiver BlueOptics PLRXPL-SC-S43-CS-BO 10000 Mbit/s SFP+

The BlueOptics PLRXPL-SC-S43-CS-BO is a 10G SFP+ fiber optic transceiver designed for multimode applications with a maximum data transfer rate of 10000 Mbit/s. The module uses LC duplex optics and operates at 850 nm for both transmit and receive functions, providing a standard-compliant solution for high-speed optical links in network equipment. The transceiver is finished in silver, weighs approximately 20 g and meets CE, RoHS and FCC requirements.

Advantages

This SFP+ transceiver follows MSA form-factor standards and is compatible with a wide range of hardware platforms, enabling straightforward replacement or expansion of existing 10GBASE-SR links. Components are selected from established suppliers and the module supports Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of supply voltage, laser current, optical power and temperature. Designed for multimode fiber, the transceiver provides immunity to electromagnetic interference and a predictable lifetime for stable network availability.

Suitable for

Key specifications

How to use

Insert the transceiver into an SFP+ port on a compatible switch, router or other network device while the host device is powered according to the vendor instructions. Connect LC duplex multimode fiber patch cables to the module’s LC ports, observing correct TX/RX orientation. After insertion, verify link status on the host device and, if supported, use the DDM/DOM interface to read diagnostic parameters for optical power, temperature and supply voltage. Follow the hardware vendor’s guidelines for hot-plugging and ESD precautions.

Recommendations

Use OM3/OM4 multimode fiber for optimal short-range 10G performance and keep fiber connectors clean to maintain low insertion loss. Ensure the host device firmware or software supports third-party SFP+ modules and DDM/DOM access if remote diagnostics are required. Store unused transceivers in protective packaging to avoid contamination and mechanical damage.
