Optický transceiver BlueOptics QSF-507T-BO 40000 Mbit/s QSFP 850 nm

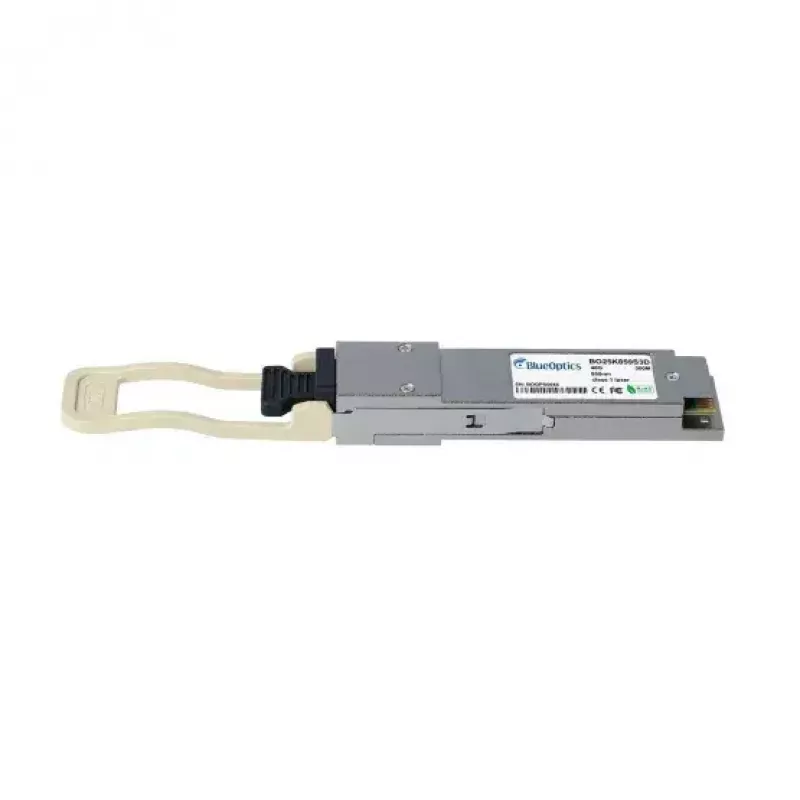

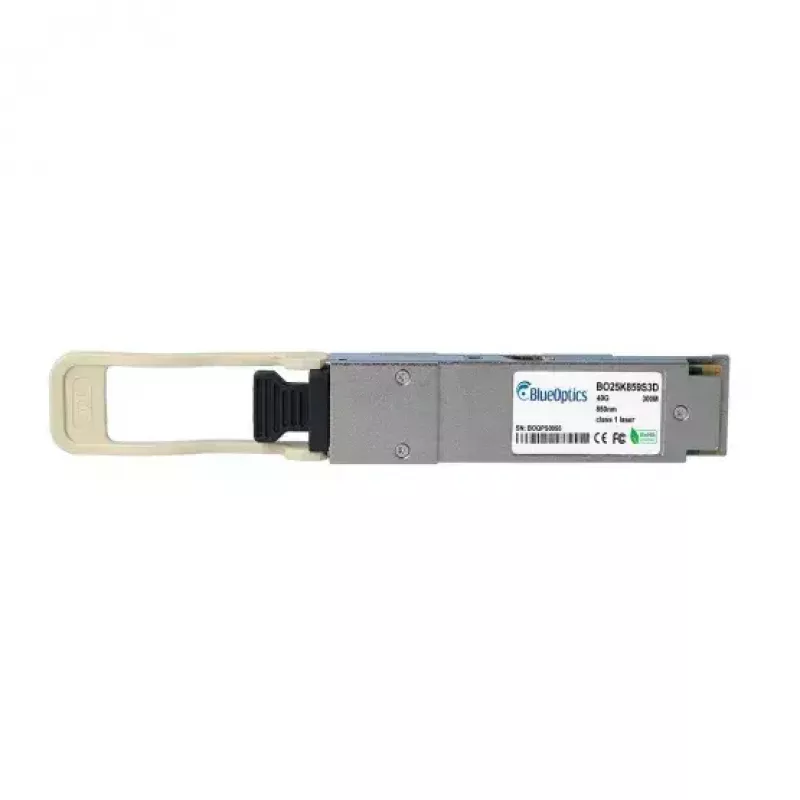

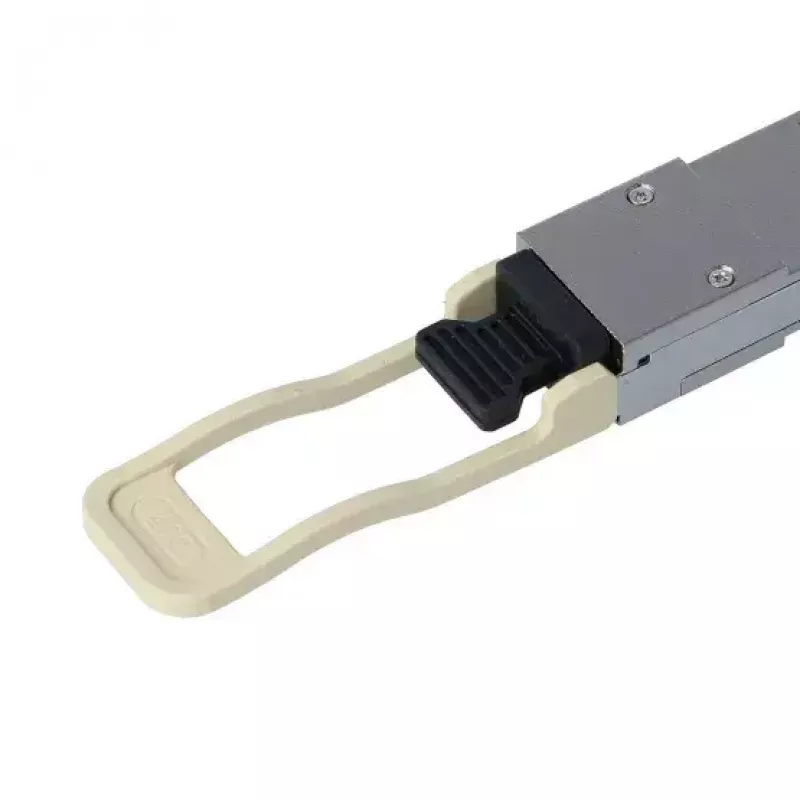

The BlueOptics QSF-507T-BO is a metal-bodied QSFP fiber optic transceiver module engineered for 40 Gbit/s data transmission over multimode fiber. Operating at an 850 nm wavelength and featuring an MPO/MTP-style QSFP interface, the module is compact (approx. 40 g) and intended for use in high-bandwidth network equipment that supports QSFP 40G optics. It supports short-reach multimode links and is designed to meet MSA QSFP mechanical and optical form-factor expectations.

Advantages

The transceiver provides a standardized QSFP interface for straightforward integration with compatible switches, routers and storage systems, offering high-density 40G connectivity in a compact metal housing that aids mechanical stability and heat dissipation. Built to support common multimode fiber applications at 850 nm, it enables simultaneous transmit and receive channels through MPO/MTP optical connections and includes support for digital diagnostics when the host hardware exposes the interface.

Key specifications

How to use

Install the BlueOptics QSF-507T-BO transceiver into a compatible QSFP slot on your switch, router or storage device following the vendor's hot-swap and handling guidelines. Connect the MPO/MTP multimode fiber patch cord to the module ensuring correct polarity and secure seating. Verify link status and speed on the host device management interface. If digital diagnostics are required, enable and read the transceiver monitoring data through the host system only if the platform supports DDM/DOM functions.

Recommendations

Use multimode fiber patch cords and MPO/MTP trunk cables rated for 40G multimode applications. Ensure compatibility with the host hardware QSFP interface and confirm that the device firmware accepts third-party QSFP modules. Maintain clean fiber endfaces and follow ESD precautions when handling the transceiver to preserve optical performance and lifetime.
