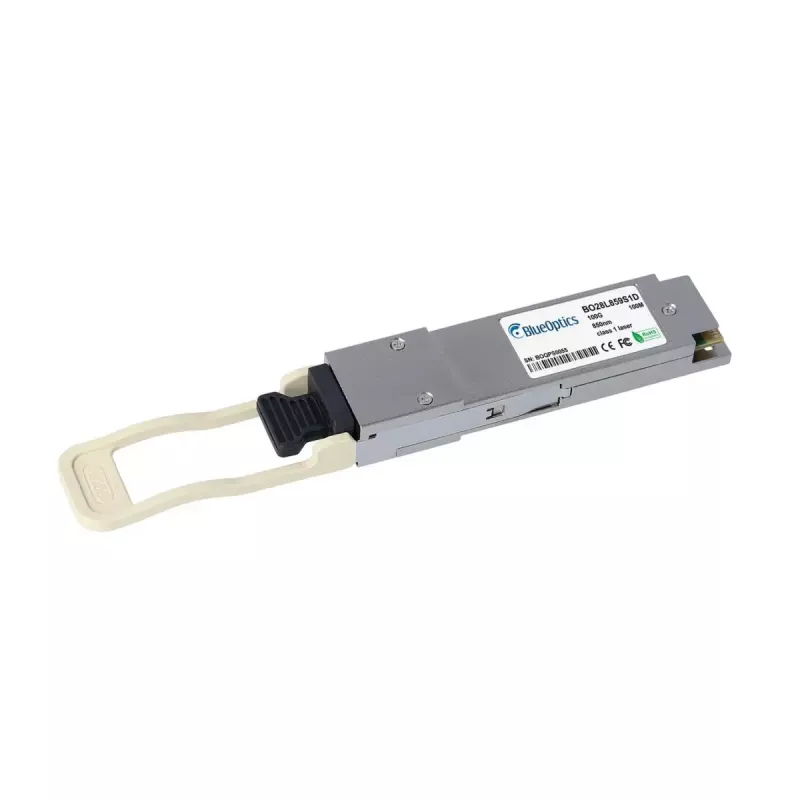

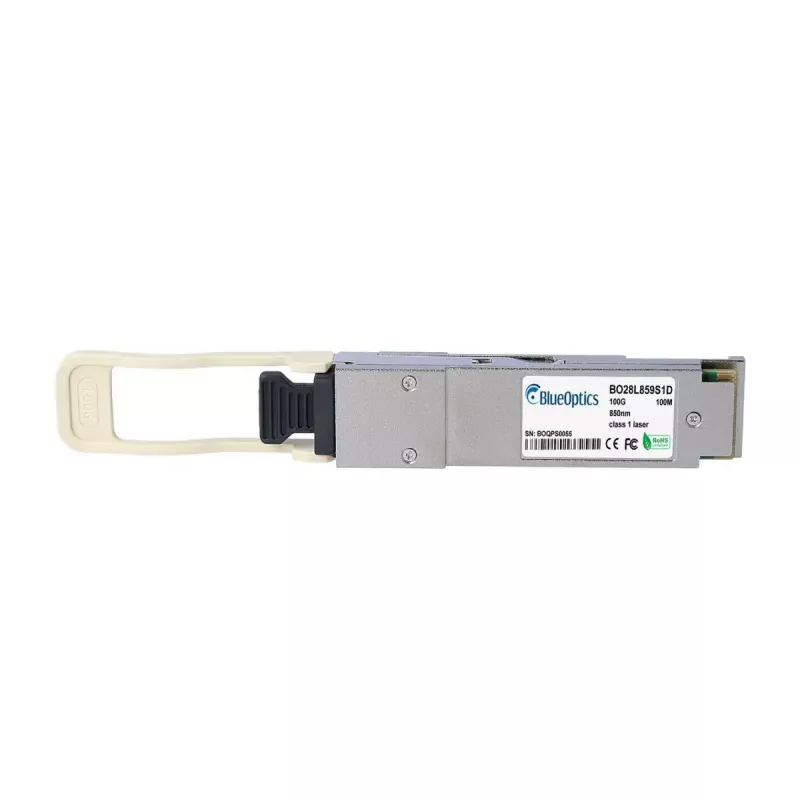

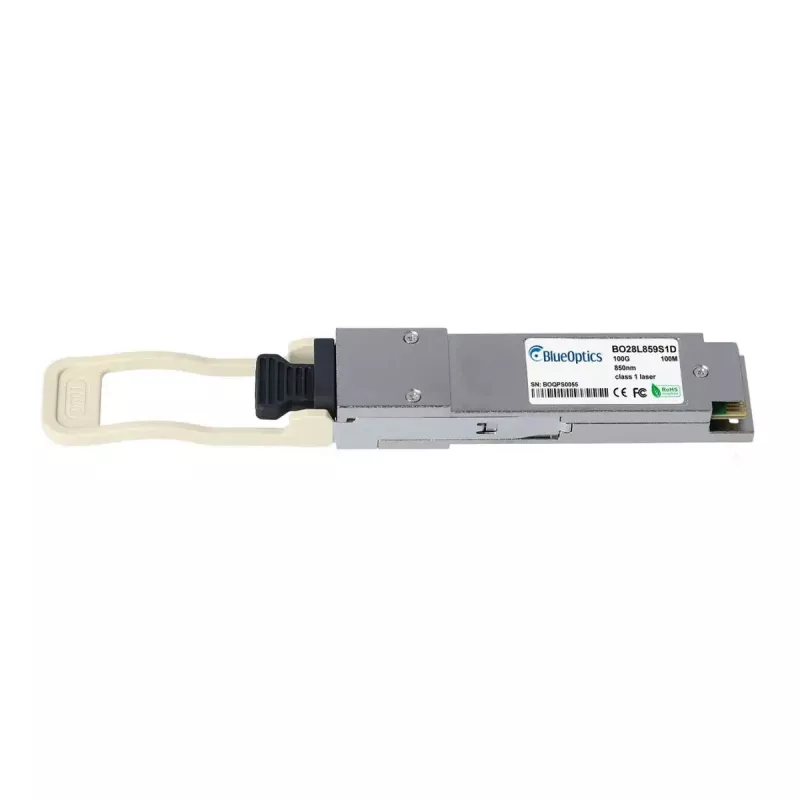

Optický transceiver modul BlueOptics 02-SSC-5806-BO 100000 Mbit/s QSFP28

The BlueOptics 02-SSC-5806-BO is a QSFP28 fiber optic transceiver module designed for 100000 Mbit/s (100G) optical links. It operates at an 850 nm wavelength and uses an MPO/MTP-style multi-fiber interface compatible with QSFP28 form-factor ports. The module is lightweight (0.04 kg) and finished in silver, intended for high-bandwidth short-reach multimode fiber connections in switches, routers and other network equipment that accept QSFP28 modules.

Advantages

This QSFP28 transceiver supports a 100000 Mbit/s data rate and 850 nm transmission for multimode fiber, providing a standardized interface for high-speed links. It follows common QSFP28 physical form-factor conventions and uses MPO/MTP multi-fiber connectivity, enabling simultaneous transmit and receive over parallel fiber lanes. The compact, lightweight metal housing simplifies installation in dense port environments while offering mechanical compatibility with equipment that supports QSFP28 optics.

Suitable for

• 100G short-reach multimode fiber connections in data center switch uplinks
• High-bandwidth interconnects between routers, switches and storage systems
• Aggregation links in campus and enterprise networks requiring QSFP28 ports

Key specifications

• Interface type: QSFP28 form factor with MPO/MTP multi-fiber connector
• Maximum data transfer rate: 100000 Mbit/s (100G)
• Operating wavelength: 850 nm for multimode fiber transmission
• Typical reach: designed for short-reach multimode applications (in accordance with QSFP28 SR specifications)
• Weight: 0.04 kg
• Color: silver metal housing

How to use

Install the BlueOptics QSFP28 module into a compatible QSFP28 port following the equipment vendor’s hot-swap procedures. Connect an MPO/MTP multimode patch cord between the transceiver and the corresponding patch panel or another MPO/MTP transceiver. Verify link negotiation and interface status in the host device management interface and ensure the connected fiber and patching follow multimode polarity and lane assignment conventions. Use appropriate fiber breakout or fanout assemblies when connecting to duplex LC endpoints.

Recommendations

Ensure the host hardware supports 100G QSFP28 SR optics and any digital diagnostics functionality before deployment. Use multimode OM3/OM4 fiber and MPO/MTP patch cords rated for 100G short-reach links, keep connectors clean, and follow ESD and handling precautions to maintain performance and lifetime.
