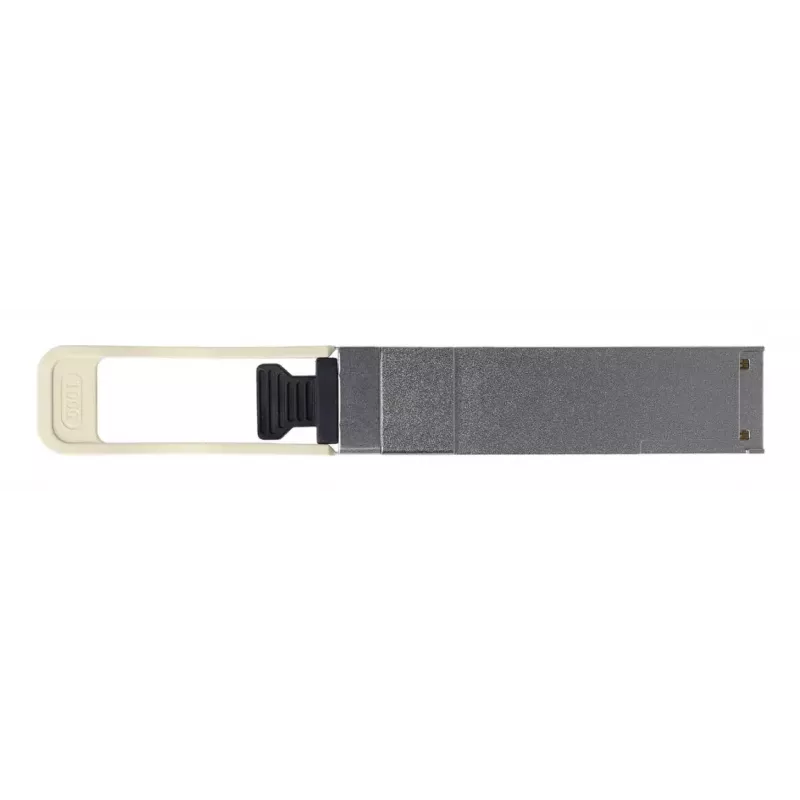

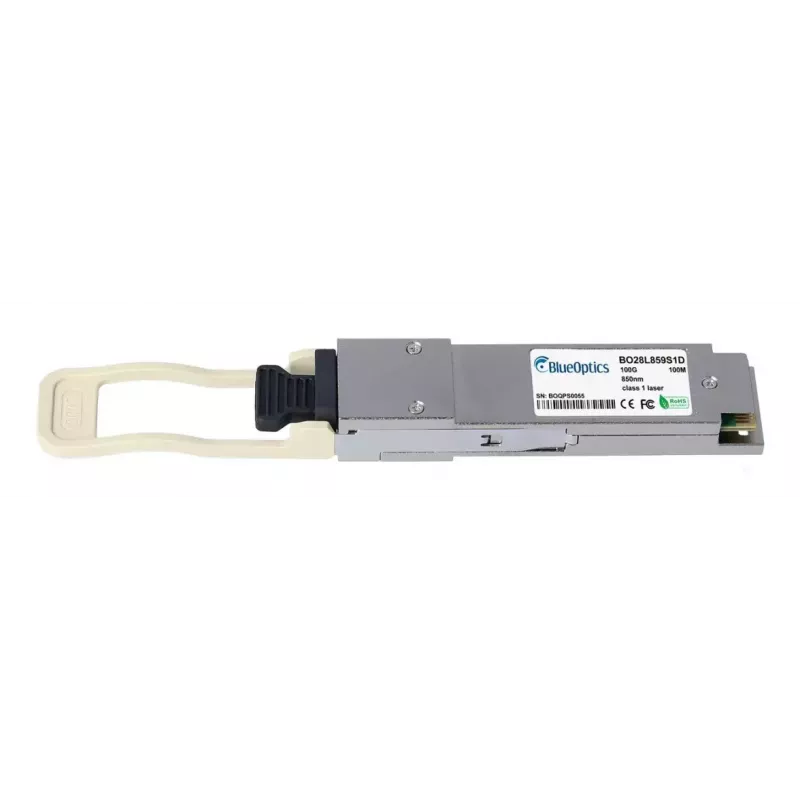

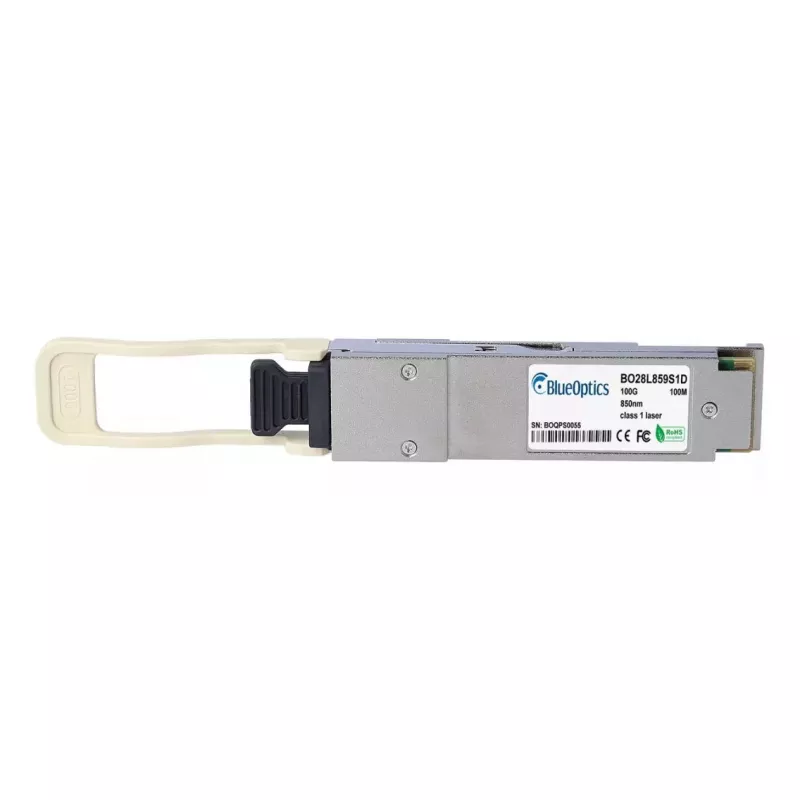

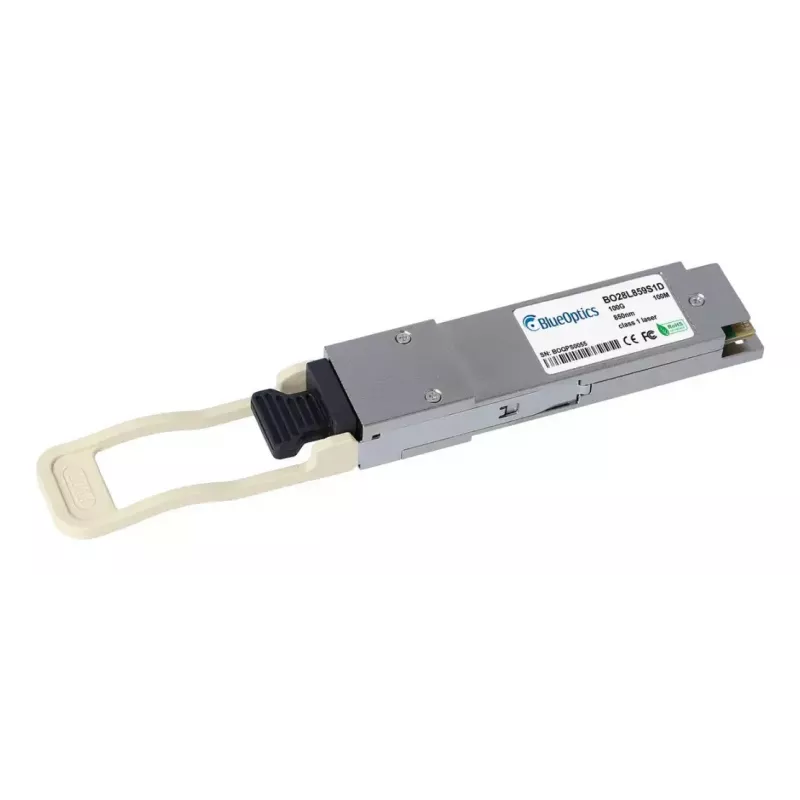

Optický transceiver modul BlueOptics 1AB474800005-BO QSFP28 MTP/MPO

The BlueOptics 1AB474800005-BO QSFP28 MTP/MPO is a fiber optic transceiver module designed for high-speed 100G data transmission over multimode fiber. The module uses a QSFP28 interface and an MTP/MPO connector, and its aluminium housing weighs approximately 40 g. It supports short-reach multimode optical links and is intended for use in network equipment that accepts QSFP28 MTP/MPO transceivers.

Advantages

The transceiver provides a compact QSFP28 form factor that enables 100G connectivity in modern switches, routers and storage systems while maintaining a small physical footprint. Its MTP/MPO connector facilitates multi-fiber connections for parallel optical transmission. The aluminium enclosure offers mechanical durability and contributes to effective thermal conduction for stable operation. The module is compatible with widely used networking platforms and is suitable for deployments where reliable, high-bandwidth optical links are required.

Suitable for

• 100G short-reach multimode fiber links in data center aggregation and spine layers
• High-throughput switch-to-switch connections and router uplinks
• Storage area network interconnects and high-bandwidth server links
• Environments requiring MTP/MPO parallel fiber cabling

Key specifications

• Interface type: QSFP28
• Connector: MTP/MPO multi-fiber
• Application: 100G multimode optical transmission (short-reach)
• Module housing: aluminium
• Weight: 0.04 kg

How to use

Install the BlueOptics QSFP28 transceiver into a compatible QSFP28 slot on the network device following the vendor's hot-plug procedures. Connect an appropriate MTP/MPO multimode fiber patch cord to the module's connector, ensuring correct fiber polarity and proper seating of the MTP/MPO ferrule. Verify link status and transmit/receive parameters using the host device management interface. If the host supports digital diagnostics (DDM/DOM), monitor operational parameters such as optical power and temperature as available.

Recommendations

Use multimode fiber patch cords and patch panels designed for MTP/MPO connections and ensure the cabling meets the required OM classification for 100G short-reach operation. Clean fiber endfaces before mating and follow ESD precautions when handling the module. Confirm host device compatibility with QSFP28 MTP/MPO transceivers and, where available, enable digital diagnostic monitoring to assist with troubleshooting and preventive maintenance.
