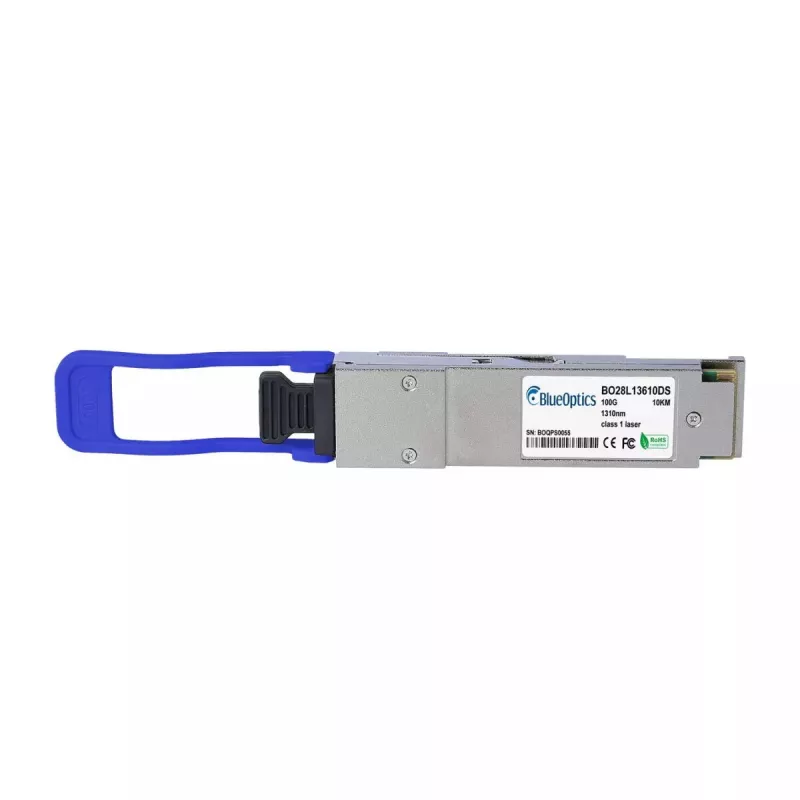

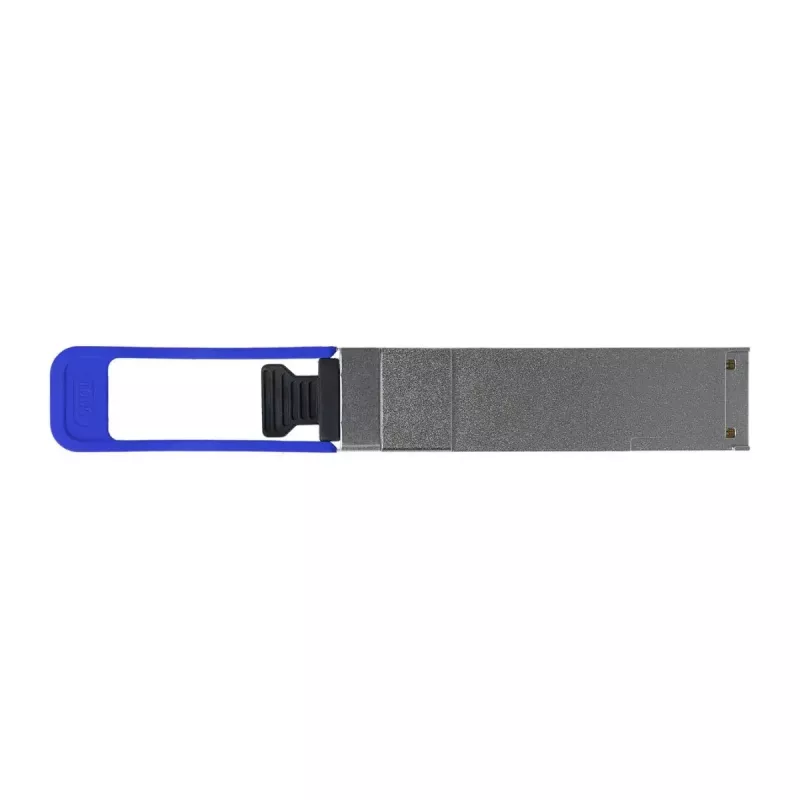

Optický transceiver modul BlueOptics BO28L13610DS-BO 100000 Mbit/s QSFP28

The BlueOptics BO28L13610DS-BO is a QSFP28 fiber optic transceiver module engineered for 100000 Mbit/s (100G) links over single-mode fiber. It uses a duplex LC connector and supports long-reach transmissions up to 10,000 meters. The module is housed in metal for mechanical stability, weighs 40 g and is designed to meet MSA QSFP28 interoperability standards. Built for high-availability environments, this transceiver provides digital diagnostics support and a long MTBF for reduced maintenance in data center and carrier networks.

Advantages

The transceiver delivers 100 Gigabit Ethernet performance with a QSFP28 interface and LC duplex fiber connector, enabling simultaneous transmit and receive channels over one fiber pair. Compact metal housing ensures durability and EMI resilience for reliable operation. Integrated digital diagnostics (DDM/DOM) provide real-time monitoring of supply voltage, laser bias current, optical output and input power and temperature to simplify troubleshooting. A long mean time between failures (1,000,000 hours) helps maintain continuous operation and lowers replacement frequency.

Suitable for

• 100 Gigabit Ethernet links in data centers and core networks
• Long-reach single-mode fiber connections up to 10 km
• Interoperable use in switches, routers, storage systems and optical transport equipment that support QSFP28
• High-density aggregation and spine-leaf network topologies

Key specifications

• Maximum data transfer rate: 100000 Mbit/s (100G)
• Interface: QSFP28 (electrical and mechanical MSA compliant)
• Fiber type: single-mode fiber
• Connector: LC duplex
• Wavelength (Tx/Rx): 1310 nm (typical for LR optics)
• Maximum transmission distance: up to 10,000 m (10 km)
• Housing: metal
• Weight: 0.04 kg
• Digital diagnostics: DDM/DOM support (real-time monitoring)
• MTBF: approximately 1,000,000 hours

How to use

Install the QSFP28 transceiver into a compatible QSFP28 port on a switch, router or other networking device following the host hardware manufacturer’s insertion and removal procedure. Connect duplex LC single-mode patch cables to the module’s LC connector, observing correct transmit/receive orientation. Enable or verify support for 100GBASE-LR operation and DDM/DOM monitoring in the host device firmware or management interface as required. Perform link verification and basic troubleshooting using the host equipment’s status indicators and the module’s diagnostic readings.

Recommendations

Use high-quality single-mode LC patch cords and compliant patch panels to achieve the specified 10 km reach. Confirm interoperability with your hardware vendor and ensure DDM/DOM support is enabled to monitor optical parameters remotely. Avoid excessive bending or strain on fiber connectors and maintain clean connector endfaces to prevent signal loss.
