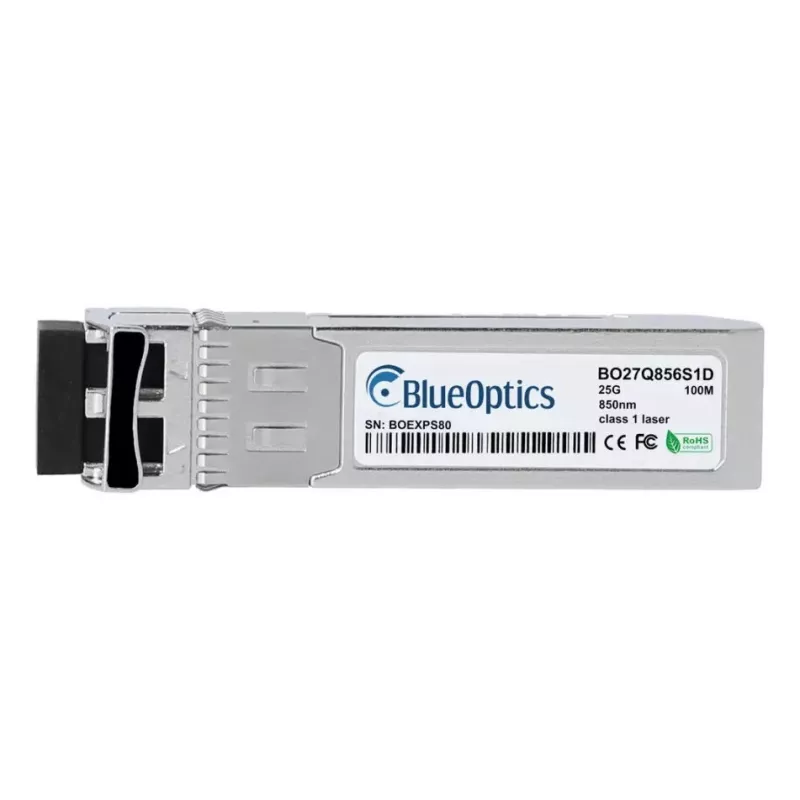

Optický transceiver modul BlueOptics MMA2P00-AS_FF-BO 25000 Mbit/s SFP28

The BlueOptics MMA2P00-AS_FF-BO fiber optic transceiver module is designed for 25 Gbps optical links using an SFP28 form factor and LC Duplex connector. It operates at an 850 nm wavelength over multimode fiber and supports a maximum transfer distance of 100 m. The module is compact and lightweight (approx. 20 g) and features digital diagnostics monitoring (DDM/DOM) compatible with MSA SFF-8472, providing real-time information on supply voltage, laser current, optical power and temperature. With a long MTBF rating, this SFP28 transceiver is suitable for integration into common networking hardware that accepts SFP28 25GBASE-SR modules.

Advantages

The module delivers a 25 000 Mbit/s data rate in an industry-standard SFP28 enclosure, enabling high-speed short-range optical connectivity. Its LC Duplex multimode interface and 850 nm VCSEL design minimize electromagnetic interference and support low-latency, high-bandwidth links. Integrated digital diagnostics simplify remote monitoring and troubleshooting. Built to MSA-compatible mechanical and electrical specifications, the transceiver is tested for interoperability with a wide range of network devices that support 25GBASE-SR SFP28 modules.

Suitable for

Key specifications

How to use

Power down or follow hot-swap procedures for your host device as recommended by the equipment manufacturer, then insert the SFP28 transceiver into the appropriate SFP28 cage until it latches. Connect LC Duplex multimode patch cables to the transceiver ports, ensuring correct transmit/receive orientation. Confirm link status and diagnostics via the host device management interface; if DDM is supported by the host, you can monitor voltage, temperature and optical power remotely. Follow manufacturer guidelines for handling electrostatic-sensitive devices and avoid bending fiber beyond recommended radii.

Recommendations

Use multimode OM3/OM4 fiber for optimal reach and bandwidth at 25G over short distances. Ensure the host hardware supports SFP28 25GBASE-SR modules and DDM if you require remote diagnostics. Store and handle the transceiver in a clean environment, use dust caps when ports are unused, and inspect fiber connectors before mating to maintain signal quality.
