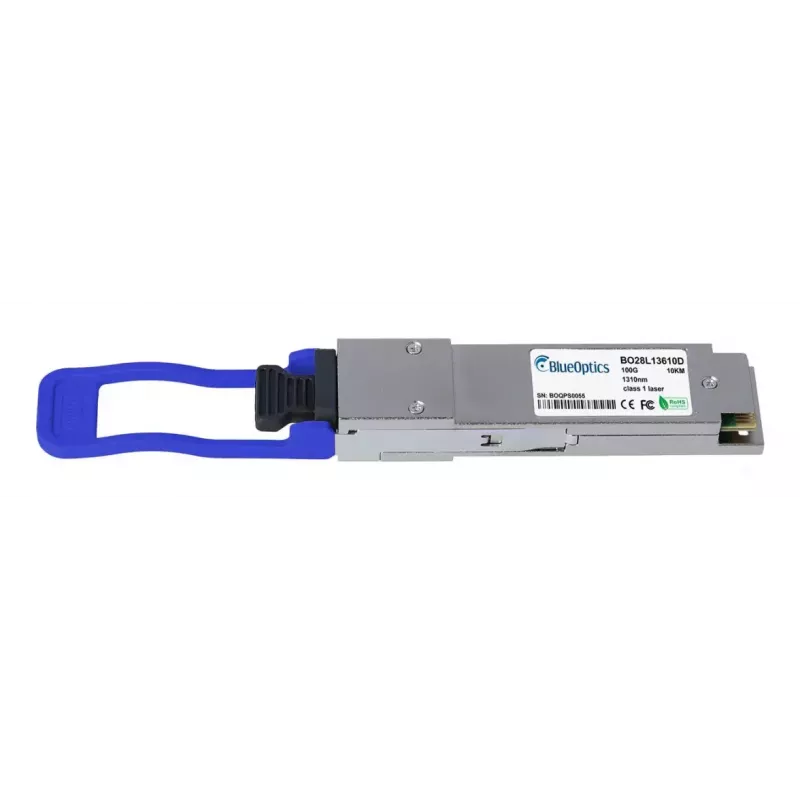

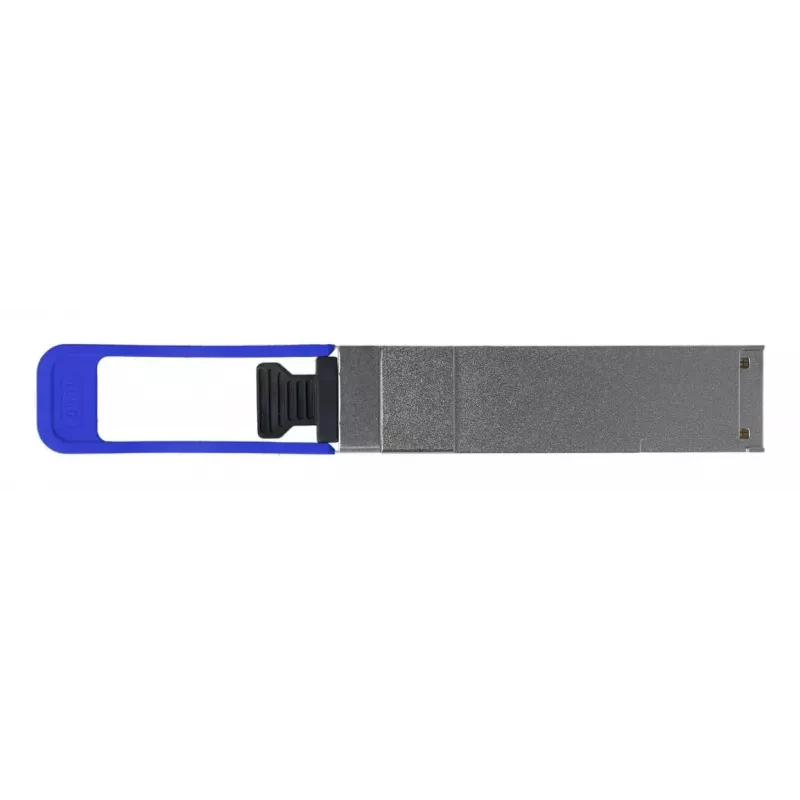

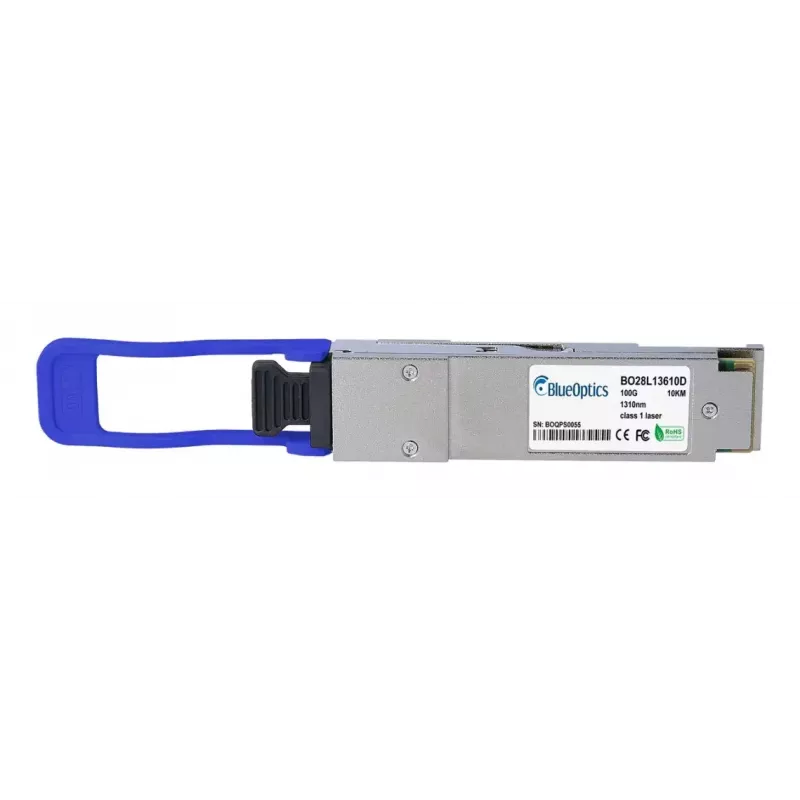

Optický transceiver modul BlueOptics PAN-T-Q28-100GBASE-LR4-BO QSFP28 100G LC

The BlueOptics PAN-T-Q28-100GBASE-LR4-BO is a fiber optic transceiver module engineered for 100G data transmission over single-mode fiber. It uses a QSFP28 interface and an LC duplex connector, and its aluminium housing keeps the module lightweight at 0.04 kg. The module implements 100GBASE-LR4 optics with CWDM-based transmit and receive channels to support long-reach links up to the standard LR4 distances when used with compatible hardware.

Advantages

This QSFP28 transceiver provides a standardized MSA-compliant form factor and LC connector for straightforward integration into QSFP28-capable ports. The aluminium construction offers a compact, lightweight solution that is simple to install and handle. Built to support digital diagnostics monitoring (DDM/DOM) and to meet common LR4 optical characteristics, the module enables remote monitoring of parameters such as supply voltage, laser bias current, optical power and temperature when the host hardware supports these features.

Suitable for

Key specifications

How to use

Install the BlueOptics QSFP28 module into a compatible QSFP28 slot on the host device following the manufacturer's hot-plug and electrostatic discharge guidelines. Connect LC duplex single-mode patch cords to the module's LC connector, ensuring correct transmit/receive orientation and appropriate fiber routing through patch panels or direct connections. Verify link status in the host device and, if available, query digital diagnostics to confirm operational parameters such as optical power and temperature.

Recommendations

Use single-mode LC patch cords and ensure connectors and transceivers are clean to maintain optimal signal quality. Confirm host device compatibility with 100GBASE-LR4 QSFP28 optics and DDM/DOM support before deployment. For long-term reliability, follow the host and cabling vendor guidance on bend radius, connector handling, and environmental conditions.
