Optický transceiver modul BlueOptics RDH10272/19-BO 100000 Mbit/s QSFP28

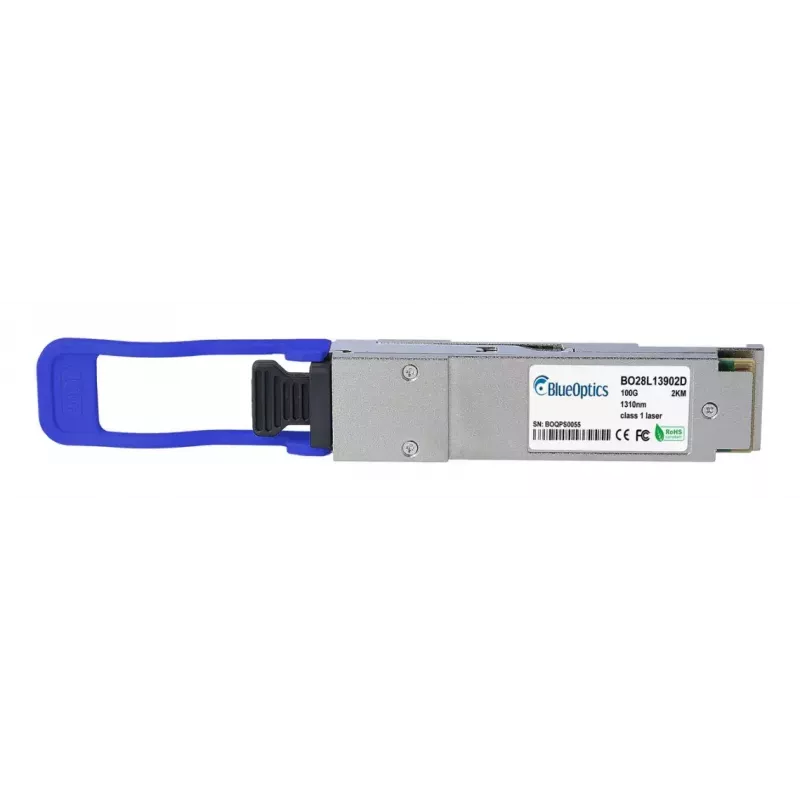

The BlueOptics RDH10272/19-BO is a QSFP28 fiber optic transceiver module designed for 100000 Mbit/s (100G) optical links. It is a silver, compact QSFP28 form-factor module (weight 0.04 kg) that implements the 100GBASE-PSM4 optical interface with an MPO/MTP connector according to MSA standards. The transceiver integrates transmitter and receiver functions with CWDM and supports Digital Diagnostics Monitoring (DDM/DOM) for real-time reporting of parameters such as supply voltage, laser current, optical power and temperature. The module is CE, FCC and RoHS compliant and offers a high reliability level with an MTBF of 3,000,000 hours.

Advantages

This QSFP28 transceiver provides a standardized MPO/MTP interface and follows MSA compatibility guidelines to ensure interoperability with common hardware platforms that support 100GBASE-PSM4. Built from components sourced from established optical component manufacturers, the module delivers long service life, low failure rates and consistent performance. Integrated DDM/DOM diagnostics simplify remote monitoring and fault analysis, while the fiber-optic link design minimizes electromagnetic interference and supports high bandwidth and low-latency transmission.

Suitable for

Key specifications

How to use

Install the BlueOptics RDH10272/19-BO into a compatible QSFP28 slot on your switch, router or other network device, observing the device manufacturer’s hot-plug and handling instructions. Use MPO/MTP fiber patch cables to connect the transceiver to corresponding MPO/MTP ports or patch panels, ensuring correct polarity and fiber type per your network design. If required by your platform, enable or verify DDM/DOM support in device firmware to read diagnostic values. Handle the module with electrostatic discharge (ESD) precautions and store unused modules with protective caps on the connector.

Recommendations

For reliable 100G links, pair the RDH10272/19-BO with high-quality MPO/MTP trunk and patch cables and verify compatibility with the target hardware platform. Confirm that the host device supports 100GBASE-PSM4 and the DDM/DOM interface if remote diagnostics are needed. Maintain appropriate fiber cleanliness and follow manufacturer guidelines for insertion/removal cycles to maximize service life.
