Optický transceiver modul BlueOptics S26361-F4055-L701 SFP28 100m

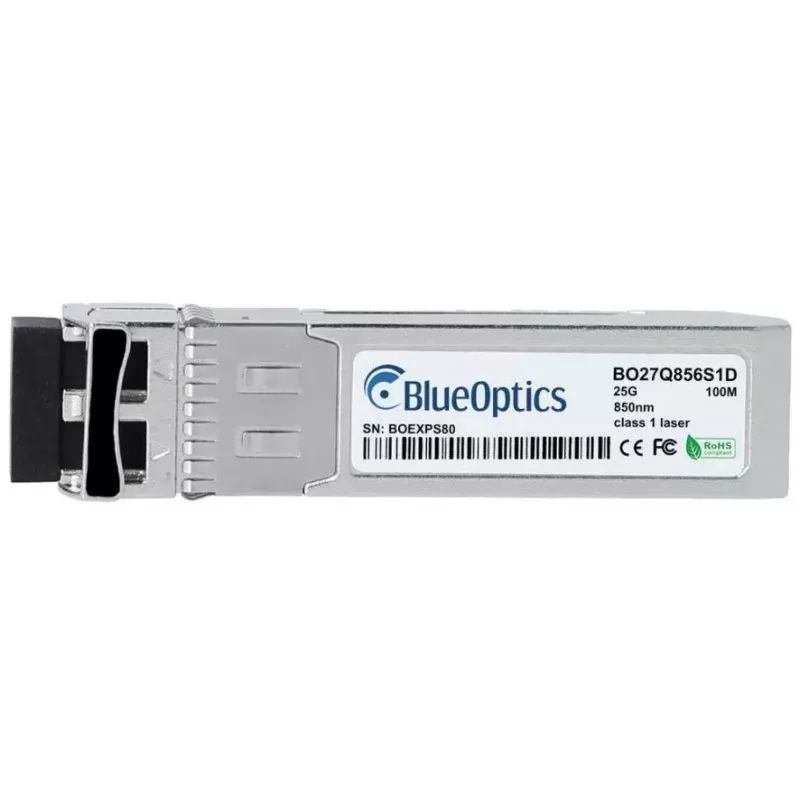

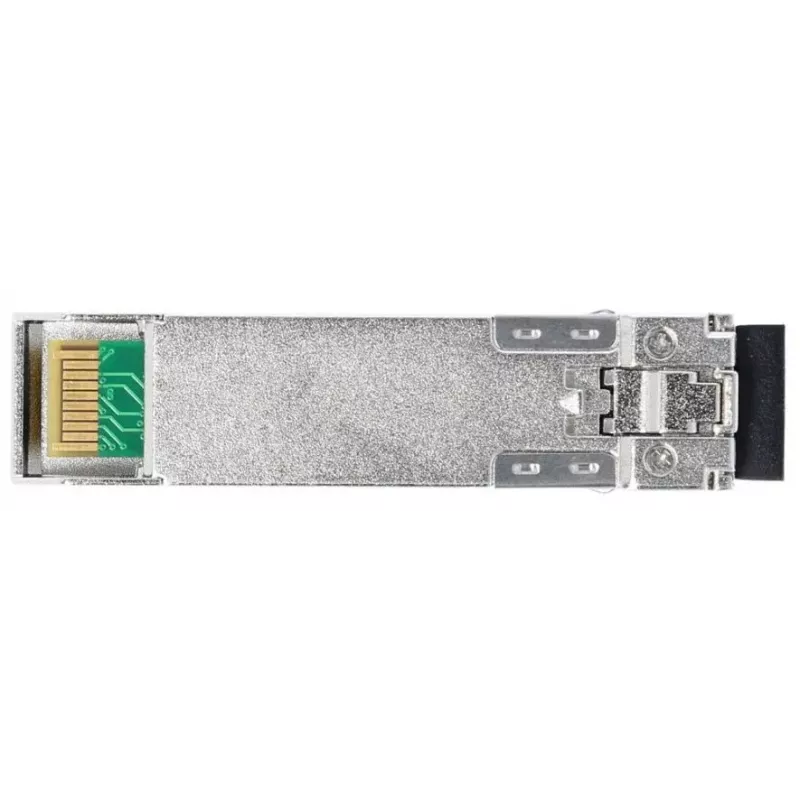

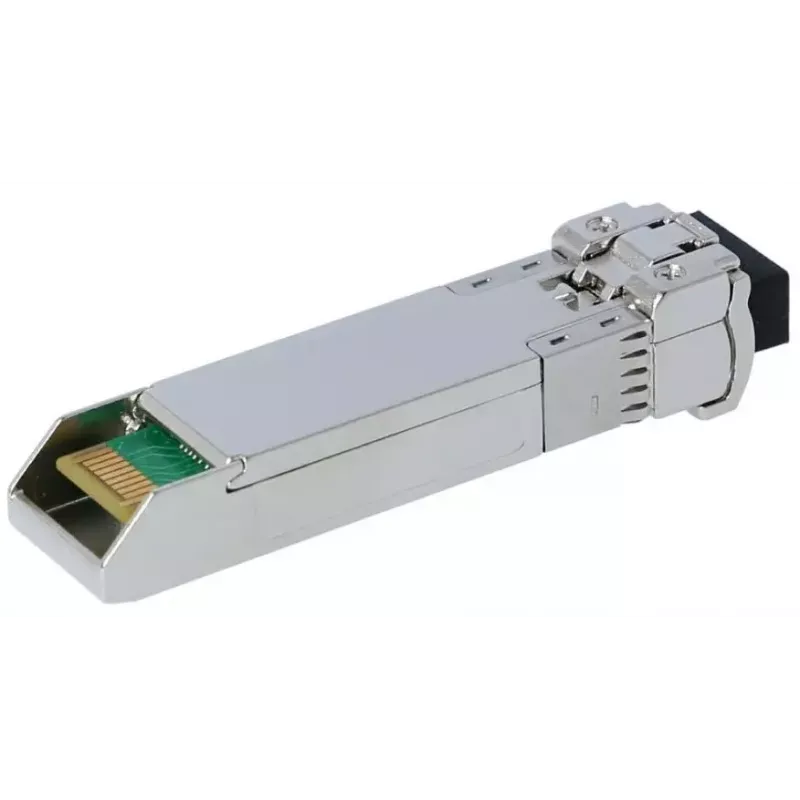

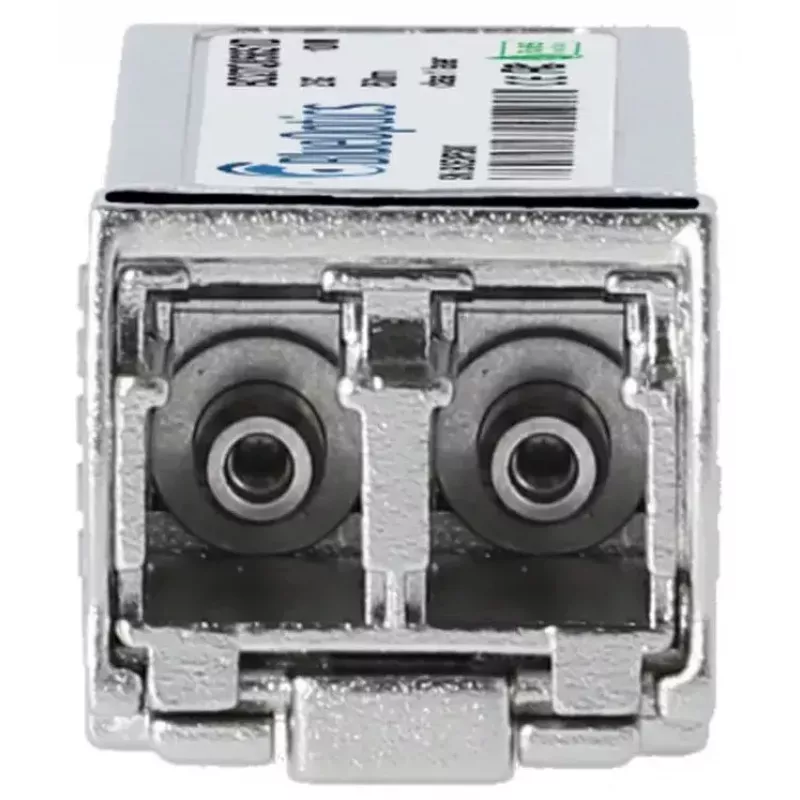

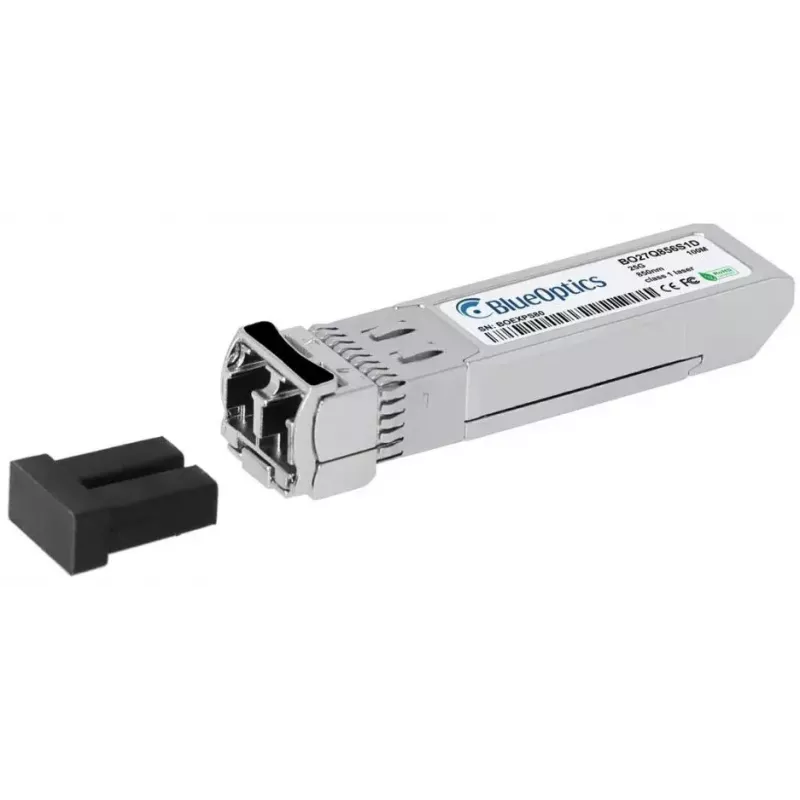

The BlueOptics S26361-F4055-L701 SFP28 100m is a fiber optic transceiver module designed for short-reach multimode links with data rates up to 25 Gbps and an operational range of up to 100 metres. The module uses an SFP28 interface and a duplex LC connector for simultaneous transmit and receive. Encased in aluminium and weighing approximately 20 grams, this single-pack transceiver is intended for deployment in network equipment that supports SFP28 25GBASE-SR modules.

Advantages

This transceiver supports 25GBASE-SR optical signalling and is compatible with MSA-standard SFP28 ports. It is built with an aluminium housing that provides mechanical protection and thermal dissipation. The product is suitable for multimode fiber links using 850 nm wavelength optics, supports simultaneous transmit and receive via LC duplex connections, and is supplied as a single unit for easy replacement or expansion of existing infrastructure.

Suitable for

Key specifications

How to use

Insert the SFP28 transceiver into a compatible SFP28 port on your switch, router or server following the host device manufacturer’s hot-plug procedure. Connect both fibres of an LC duplex patch cable to the module’s transmit and receive ports, ensuring correct polarity. Verify link status on the host device and confirm that the port is configured for 25G operation and the appropriate protocol (Ethernet or Fibre Channel over Ethernet). If digital diagnostics (DDM/DOM) are available and supported by the host, monitor optical parameters such as transmit/receive power and temperature for ongoing link health.

Recommendations

Use high-quality multimode LC duplex patch cords and, where applicable, patch panels to achieve optimal signal integrity. Ensure the host hardware supports MSA-standard SFP28 25GBASE-SR modules and enable DDM/DOM monitoring if diagnostics are required. Handle the module by its housing, keep connector endfaces clean and replace protective caps when not in use to preserve performance.
