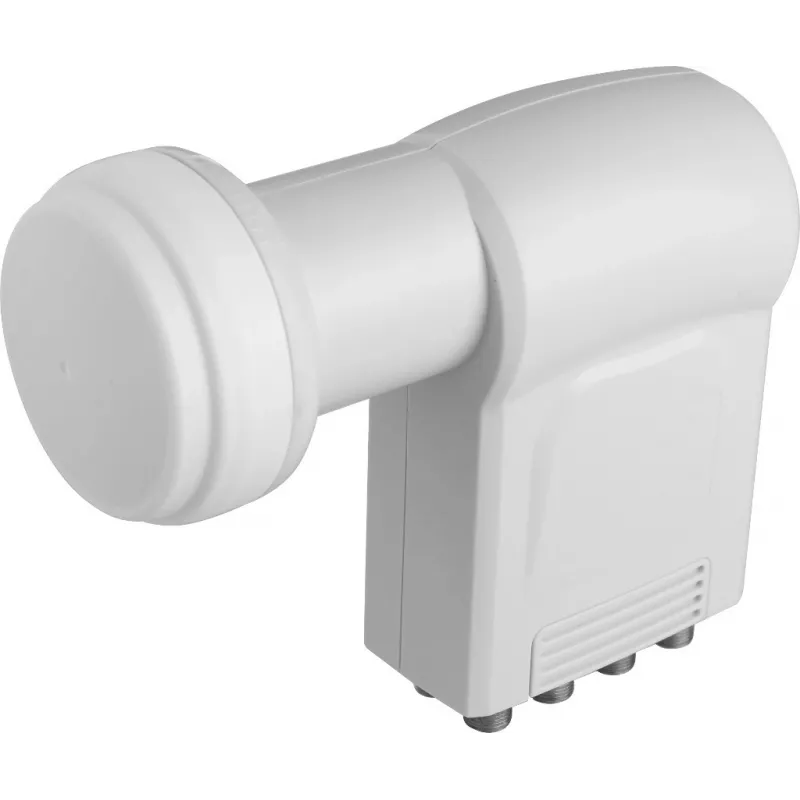

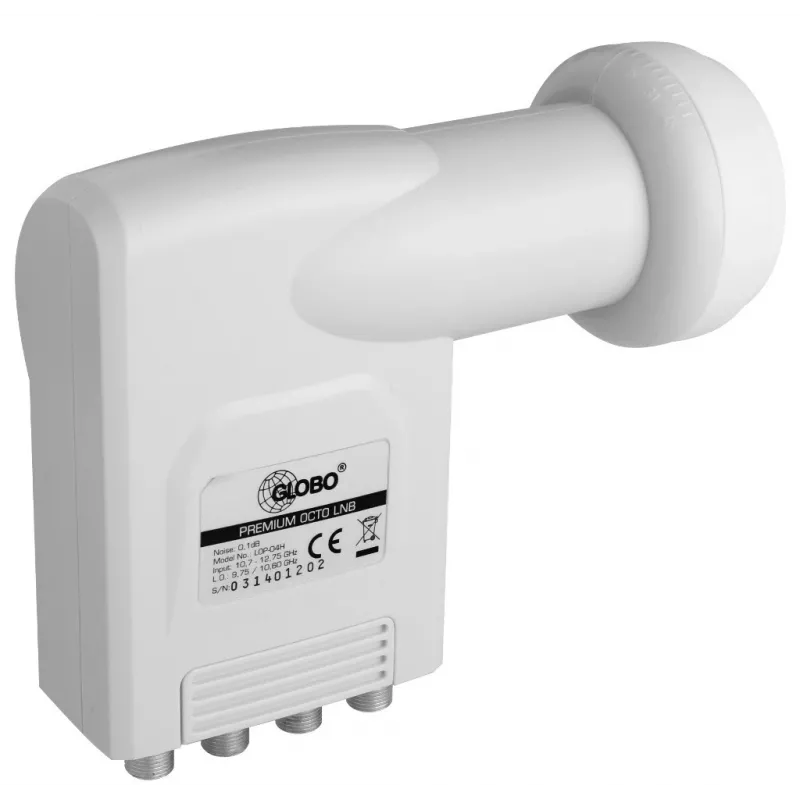

OPTICUM OCTO LOP-04H 8-násobný univerzálny LNB

The OPTICUM OCTO LOP-04H is a high-performance universal LNB designed for satellite reception systems requiring up to eight independent outputs. With its octo configuration, it allows simultaneous connection of multiple receivers or satellite tuners, making it ideal for multi-room installations or head-end systems. The LNB covers both low and high frequency bands with low noise figure and high conversion gain, ensuring excellent signal quality even in challenging conditions.

Advantages

This LNB offers eight outputs, enabling flexible distribution of satellite signals to multiple devices without additional splitters. Its low noise figure of 0.1 dB minimizes signal degradation, while the weather-protected housing ensures reliable operation in outdoor environments. The 40 mm feedhorn diameter is compatible with standard offset satellite dishes.

Suitable for

• Multi-room satellite TV installations
• Small head-end systems
• SMATV (Satellite Master Antenna Television) systems
• Any application requiring up to eight independent satellite signal outputs

Key specifications

• LNB Type: Universal Octo
• Number of Outputs: 8
• Input Frequency Range: 10.7 - 12.75 GHz
• Output Frequency Range: 950 - 2150 MHz
• Local Oscillator Frequencies: 9.75 GHz (Low), 10.6 GHz (High)
• Noise Figure: 0.1 dB
• Conversion Gain: 55 dB (min)
• Cross Polarization Isolation: 20 dB (min)
• LO Stability: ±1 MHz
• Current Consumption: 180 mA (max)
• Feed Diameter: 40 mm
• Connector Type: F-Type (Female)
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use high-quality coaxial cables and F-connectors. Ensure the LNB is properly aligned with the satellite dish and protected from direct exposure to rain or snow. This LNB is compatible with most standard satellite receivers and multiswitches.
