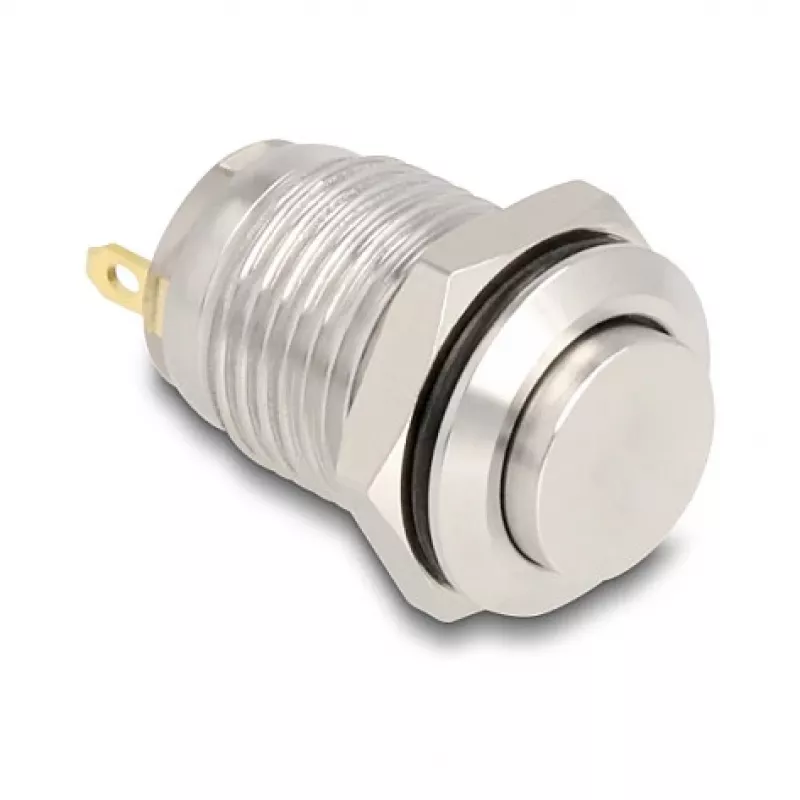

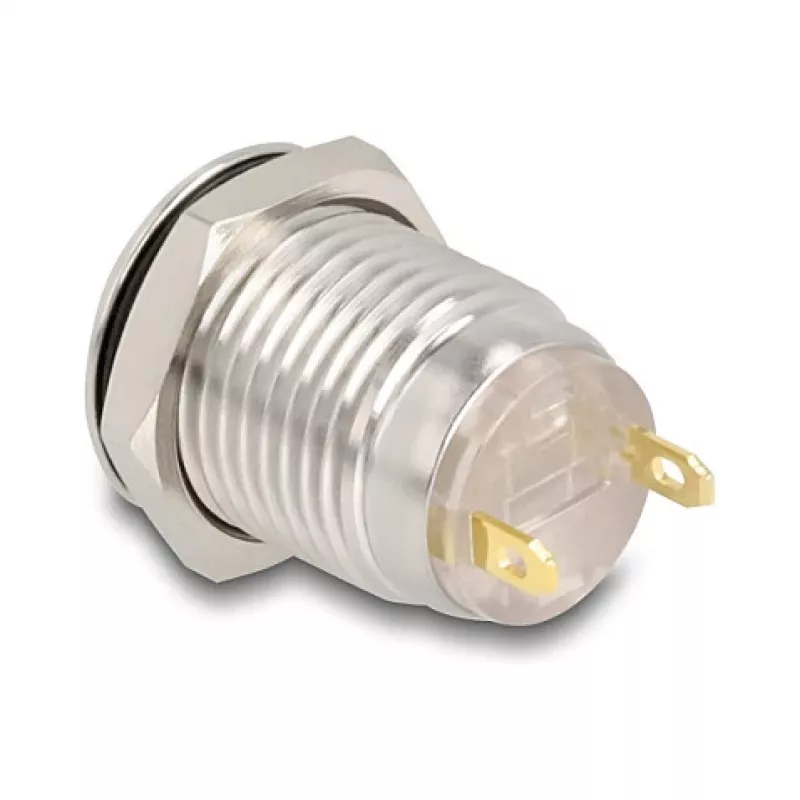

Panel s tlačidlami DeLOCK 20983 strieborný 230V 3A

The DeLOCK 20983 is a silver push-button panel made of nickel and stainless steel, designed for installation in control panels and other equipment. It operates at 230 V with a maximum current of 3 A and has compact dimensions (23 mm width, 14 mm depth), making it suitable for industry, control or regulation technology, as well as for consumer and automotive applications such as doorbells or lighting triggers.

Advantages

The push button combines corrosion-resistant stainless steel with a nickel finish for durable external use. It supports both normally open (NO) and normally closed (NC) contacts to allow flexible wiring configurations. Its compact form factor and 230 V/3 A rating make it compatible with common control circuits and timer-operated lighting systems.

Suitable for

• Control panels in industrial and automation systems
• Control and regulation technology
• Doorbell or corridor lighting with timers in buildings
• Automotive and consumer devices requiring a momentary push-button

Key specifications

• Model: DeLOCK 20983
• Color/finish: Silver (nickel + stainless steel)
• Rated voltage: 230 V
• Maximum current: 3 A
• Type: Momentary push button (returns to initial position)
• Contact configuration: NO (normally open) and NC (normally closed)
• Dimensions: 23 mm (width) x 14 mm (depth)
• Brand: DELOCK
• MPN: 20983
• EAN: 4043619209835

How to use

Install the push button into a suitably sized cutout in a control panel or mounting surface, ensuring secure mechanical fixation and correct orientation. Connect the supply and load conductors to the appropriate NO or NC terminals according to the required function: use the NO contact to close a circuit when the button is pressed or the NC contact to open a circuit when the button is pressed. Verify that the circuit voltage and current do not exceed 230 V and 3 A respectively. After wiring, test the button operation under safe conditions before putting the system into regular service.

Recommendations

Use the DeLOCK 20983 in dry or protected indoor environments or within enclosures rated for the target environment. Protect the contacts and wiring with appropriate fuses or circuit breakers sized for the 3 A maximum current, and follow local electrical codes during installation.
