Omni-directional anténa Panorama LPB-6-60-5SP 0.6-6 GHz SMA IP66

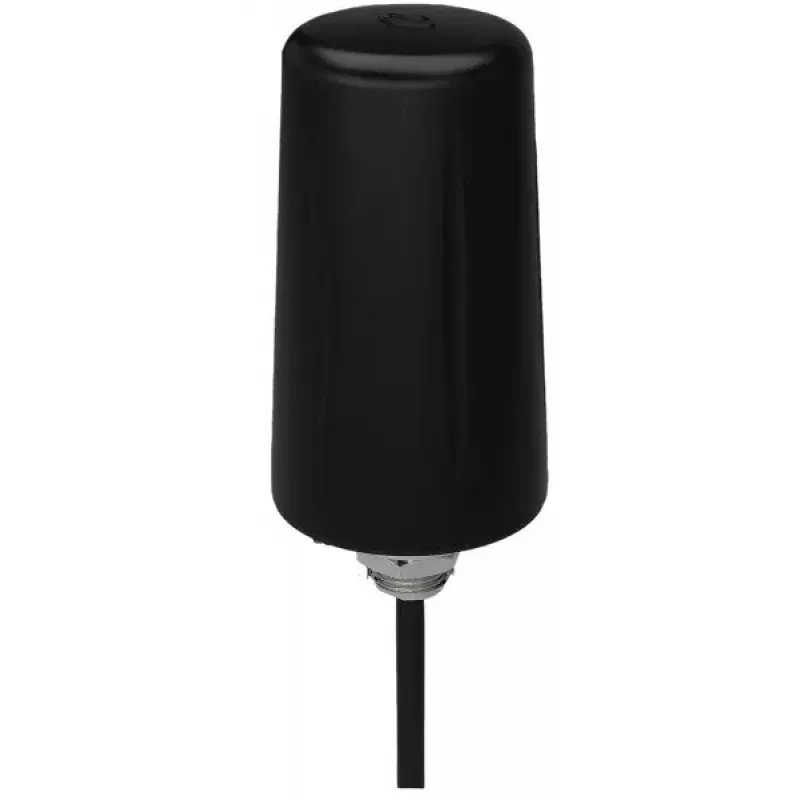

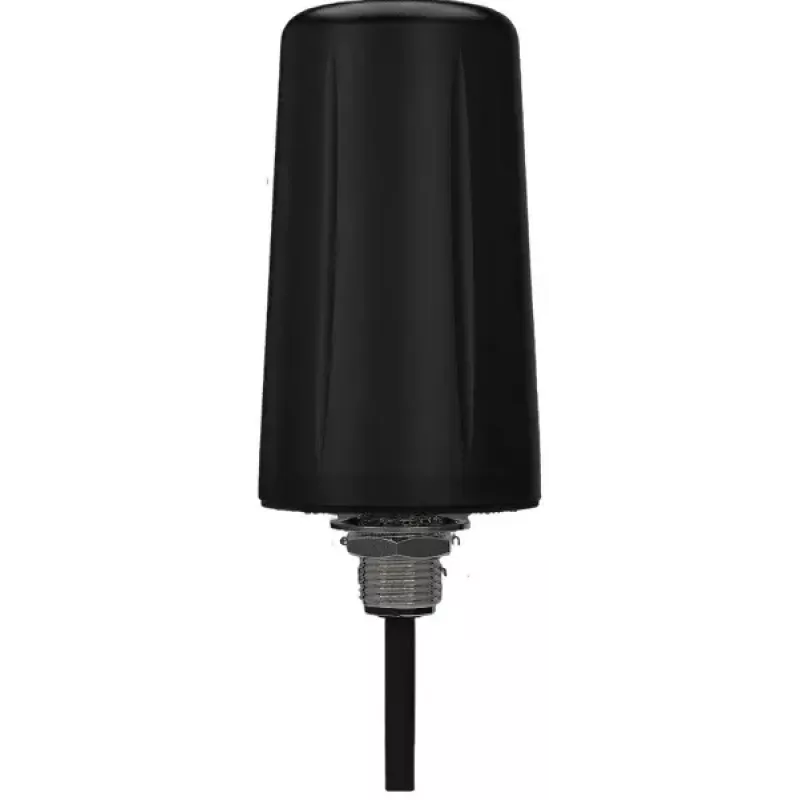

The Panorama LPB-6-60-5SP is an omni-directional panel-mount antenna covering 0.6–6 GHz (617–960 / 1710–6000 MHz). It is supplied with an integrated 5 mm double-shielded CS29 coaxial cable and fitted with an SMA connector. The antenna has an IP66 rating and compact dimensions (48 mm × 48 mm × 82 mm), making it suitable for indoor and outdoor cellular modem, router and M2M installations.

Advantages

The LPB-6-60 provides broad frequency coverage for 2G/3G/4G and 5G applications with omnidirectional radiation, and comes with an integrated double-shielded cable for reliable signal transmission. Its IP66 enclosure offers protection against dust and water ingress, and the compact panel-mount form factor simplifies installation in constrained spaces.

Suitable for

• Cellular modems and routers (2G/3G/4G/5G)
• Machine-to-Machine (M2M) wireless connectivity
• Industrial and domestic outdoor or indoor installations
• Applications requiring an SMA-terminated antenna with broad frequency range

Key specifications

• Frequency range: 0.6–6 GHz (617–960 / 1710–6000 MHz)
• Connector: SMA (factory fitted)
• Cable: integrated 5 mm double-shielded CS29 coaxial cable
• Ingress protection: IP66
• Dimensions: 48 mm × 48 mm × 82 mm
• Required ground plane: >300 mm (1') diameter or bracket mount option (p/n B4BE-6-60)

How to use

Mount the antenna on a conductive ground plane greater than 300 mm in diameter for optimal performance, or fit it using the recommended bracket (p/n B4BE-6-60). Connect the integrated CS29 coaxial cable terminated with the SMA connector to the cellular modem, router or other radio equipment. Position the antenna vertically and away from large metallic obstructions for best omnidirectional coverage.

Recommendations

For reliable cellular performance, ensure the antenna is installed on a conductive surface of at least 300 mm diameter or use the specified bracket. Verify connector compatibility (SMA) with your device and route the integrated cable to avoid sharp bends or crushing that could damage the double-shielded coaxial cable.
